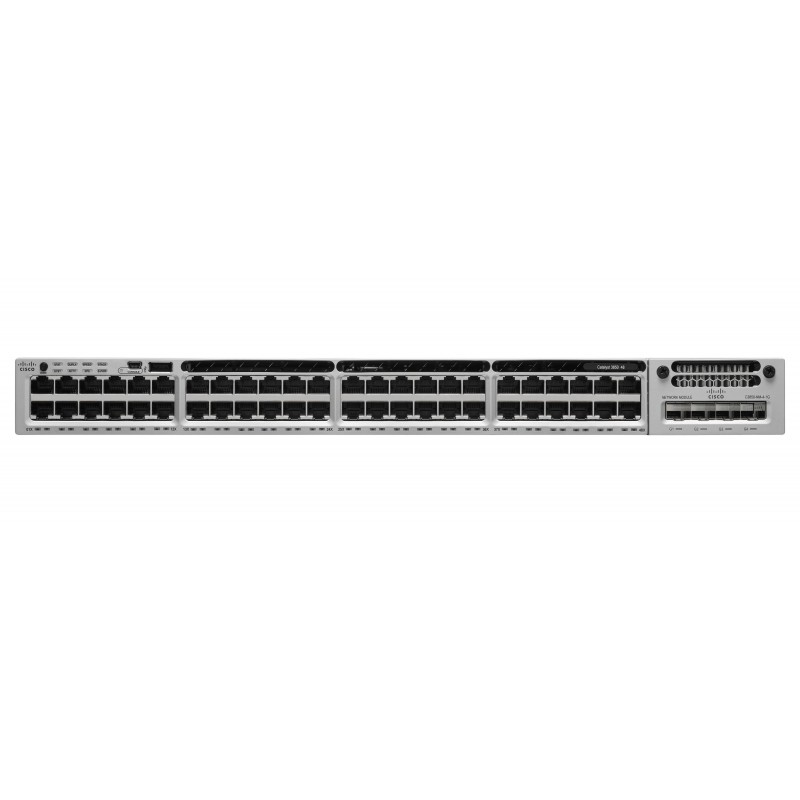

Cisco Catalyst 3850 Switch (WS-C3850-48T-S)

Kode Produk: 32325

Referensi AI0318

Kondisi: Produk baru

Cisco Catalyst C3850-48T Switch Layer 3, 48 port 10/100/1000 Ethernet ports, IP Base, managed, stackable

Lebih detail

Kirim ke teman

Kirim ke teman

Cisco Catalyst 3850 Switch (WS-C3850-48T-S)
Cisco Catalyst C3850-48T Switch Layer 3, 48 port 10/100/1000 Ethernet ports, IP Base, managed, stackable

Penerima: :

Nama teman Anda ^* :

Alamat email teman Anda ^* :

^* Harus diisi

atau Batal
Bagikan di Facebook
Cetak

Info lainnya

Spesifikasi Cisco Catalyst 3850 Switch (WS-C3850-48T-S)

model info	WS-C3850-48T-S
enclosure type	Rack-mountable - 1U
Ports	48 x 10/100/1000
Network management Interface	Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling Management console port: RJ-45-to-DB9 cable for PC connections
Available PoE Power	None
Switching Capacity	176Gbps
Maximum stacking number	up to 9 switches with same IOS feature set in same series
Stack Bandwidth	480Gbps
Forwarding Performance	130.95Mpps
FNF (Flexible NetFlow) entries	48,000 flows
Maximum VLANs IDs	1000
MAC Address Table Size	32K
CPU	Multicore CPU
RAM	4 G
Flash Memory	2 G
Wireless	Number of AP per switch/stack : 100 Number of wireless clients per switch/stack : 2000 Total number of WLANs per switch : 64 Wireless bandwidth per switch : up to 40Gbps Supported Aironet AP series : 3600, 3500, 2600, 1600, 1260, 1140, 1040
Expansion / Connectivity
Console ports	USB (Type-B), Ethernet (RJ-45)
Expansion Slot(s)	1 network module slot and 1 power redundant slot
Network Modules Selection	C3850-NM-4-1G: 4 x 1G uplinks network module C3850-NM-4-10G: 4 x 10G uplinks network module C3850-NM-2-10G: 2 x 10G or 4 x 1G uplinks network module
Stacking cable	STACK-T1-50CM StackWise stacking cable with a 0.5 m length STACK-T1-1M StackWise stacking cable with a 1.0 m length STACK-T1-3M StackWise stacking cable with a 3.0 m length
Stack Power Cable (recommended)	CAB-SPWR-30CM stack power cable with a 30CM length CAB-SPWR-150CM stack power cable with a 150CM length
Power supply	PWR-C1-350WAC
Power Device	Power supply - redundant - plug-in module
Power Redundancy	optional
Voltage range (Auto)	100V-240V
Power Consumption of standalone(in Watts)	127.24 (Max)

Berat dan ukuran Cisco Catalyst 3850 Switch (WS-C3850-48T-S)

Dimensions	44.5 cm x 44.5 cm x 4.45 cm
Weight	17.49 Kg

Ringkasan Produk Cisco Catalyst 3850 Switch (WS-C3850-48T-S)

Cisco Catalyst 3850 series adalah switch akses-layer stackable kelas perusahaan yang menyediakan konvergensi penuh antara kabel dan nirkabel pada satu platform. Cisco Unified Access Data Plane (UADP) sirkuit terintegrasi khusus aplikasi (ASIC) mendukung switch dan memungkinkan penegakan kebijakan kabel-nirkabel yang seragam, visibilitas aplikasi, fleksibilitas dan pengoptimalan aplikasi.
