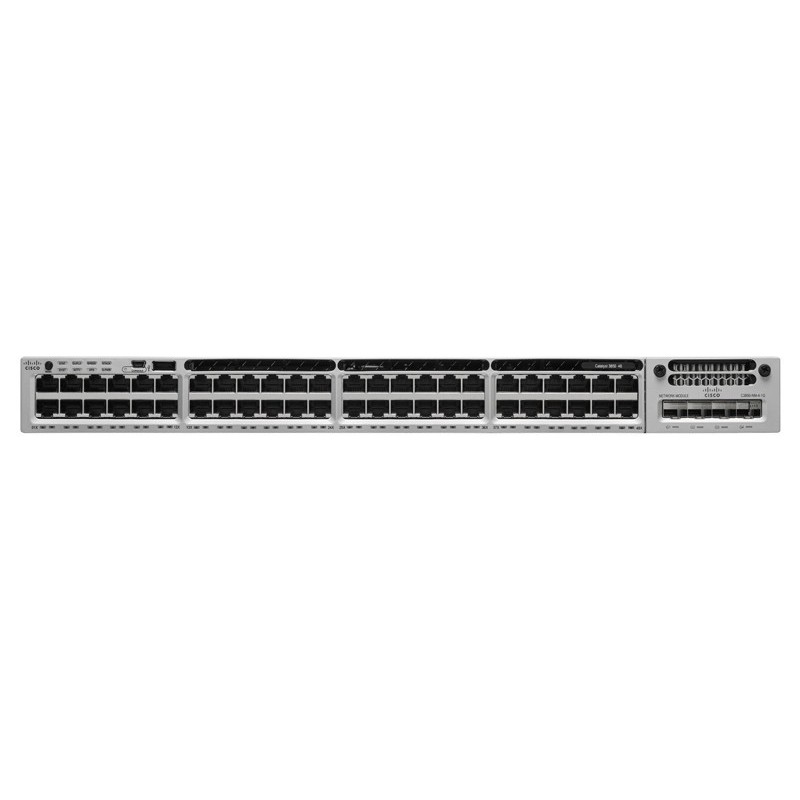

Cisco Catalyst 3850 Switch (WS-C3850-48F-L)

Kode Produk: 32326

Referensi AI0318

Kondisi: Produk baru

Cisco Catalyst C3850-48F Switch Layer 2, Access Layer, 48 10/100/1000 Ethernet POE+ ports, LAN Base, managed, stackable

Lebih detail

Kirim ke teman

Kirim ke teman

Cisco Catalyst 3850 Switch (WS-C3850-48F-L)
Cisco Catalyst C3850-48F Switch Layer 2, Access Layer, 48 10/100/1000 Ethernet POE+ ports, LAN Base, managed, stackable

Penerima: :

Nama teman Anda ^* :

Alamat email teman Anda ^* :

^* Harus diisi

atau Batal
Bagikan di Facebook
Cetak

Info lainnya

Spesifikasi Cisco Catalyst 3850 Switch (WS-C3850-48F-L)

model info	WS-C3850-48F-L
enclosure type	Rack-mountable - 1U
Ports	48 x 10/100/1000 (POE+)
Network management Interface	● Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling ● Management console port: RJ-45-to-DB9 cable for PC connections
Available PoE Power	800W
Switching Capacity	176Gbps
Maximum stacking number	up to 9 switches with same IOS feature set in same series
Stack Bandwidth	480Gbps
Forwarding Performance	130.95Mpps
FNF (Flexible NetFlow) entries	Disabled (IP base license required)
Maximum VLANs IDs	255
MAC Address Table Size	32K
CPU	Multicore CPU
RAM	4 G
Flash Memory	2 G
Wireless
Number of AP per switch/stack	100
Number of wireless clients per switch/stack	2000
Total number of WLANs per switch	64
Wireless bandwidth per switch	up to 40Gbps
Supported Aironet AP series	3600, 3500, 2600, 1600, 1260, 1140, 1040
Expansion / Connectivity
Console ports	USB (Type-B), Ethernet (RJ-45)
Expansion Slot(s)	1 network module slot and 1 power redundant slot
Network Modules Selection	●C3850-NM-4-1G: 4 x 1G uplinks network module ●C3850-NM-4-10G: 4 x 10G uplinks network module ●C3850-NM-2-10G: 2 x 10G or 4 x 1G uplinks network module
Stacking cable	●STACK-T1-50CM StackWise stacking cable with a 0.5 m length ●STACK-T1-1M StackWise stacking cable with a 1.0 m length ●STACK-T1-3M StackWise stacking cable with a 3.0 m length
Stack Power Cable (recommended)	●CAB-SPWR-30CM stack power cable with a 30CM length ●CAB-SPWR-150CM stack power cable with a 150CM length
Power supply	PWR-C1-1100WAC
Power Device	Power supply - redundant - plug-in module
Power Redundancy	optional
Voltage range (Auto)	100V-240V
Power Consumption of standalone(in Watts)	143.77 (Max)
Compliant Standards	IEEE 802.1D Spanning Tree Protoco IEEE 802.1p CoS Prioritization IEEE 802.1Q VLAN IEEE 802.1s IEEE 802.1w IEEE 802.1X IEEE 802.1X-Rev IEEE 802.11 IEEE 802.1ab (LLDP) IEEE 802.3ad IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3z 1000BASE-X RMON I and II standards SNMP v1, v2c, and v3 IEEE 802.3af and IEEE 802.3at

Berat dan ukuran Cisco Catalyst 3850 Switch (WS-C3850-48F-L)

Dimensions	44.5 cm x 48.8 cm x 4.45 cm
Weight	17.49 Kg

Ringkasan Produk Cisco Catalyst 3850 Switch (WS-C3850-48F-L)

Cisco Catalyst 3850 series adalah switch akses-layer stackable kelas perusahaan yang menyediakan konvergensi penuh antara kabel dan nirkabel pada satu platform. Cisco Unified Access Data Plane (UADP) sirkuit terintegrasi khusus aplikasi (ASIC) mendukung switch dan memungkinkan penegakan kebijakan kabel-nirkabel yang seragam, visibilitas aplikasi, fleksibilitas dan pengoptimalan aplikasi. Cisco Catalyst 3850 series switch mendukung penuh IEEE 802.3at Power over Ethernet Plus (PoE +), modul jaringan modular dan lapangan yang dapat diganti, kipas berlebihan dan catu daya.
