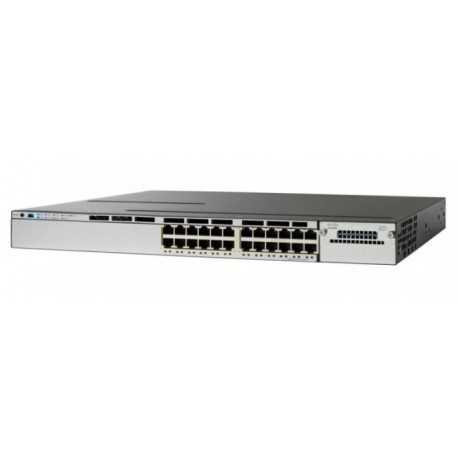

Cisco Catalyst 3850 Switch (WS-C3850-24P-S)

Kode Produk: 32327

Referensi AI0318/WA

Kondisi: Produk baru

Cisco Catalyst C3850-24P Switch Layer 3, 24 10/100/1000 Ethernet POE+ ports, IP Base, managed, stackable

Lebih detail

Kirim ke teman

Kirim ke teman

Cisco Catalyst 3850 Switch (WS-C3850-24P-S)
Cisco Catalyst C3850-24P Switch Layer 3, 24 10/100/1000 Ethernet POE+ ports, IP Base, managed, stackable

Penerima: :

Nama teman Anda ^* :

Alamat email teman Anda ^* :

^* Harus diisi

atau Batal
Bagikan di Facebook
Cetak

Info lainnya

Spesifikasi Cisco Catalyst 3850 Switch (WS-C3850-24P-S)

Model info	WS-C3850-24P-S
Enclosure type	Rack-mountable - 1U
Ports	24 x 10/100/1000 (POE+)
Network management Interface	● Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling ● Management console port: RJ-45-to-DB9 cable for PC connections
Available PoE Power	435W
Switching Capacity	92Gbps
Maximum stacking number	up to 9 switches with same IOS feature set in same series
Stack Bandwidth	480Gbps
Forwarding Performance	68.4Mpps
FNF entries	24,000 flows
Maximum VLANs IDs	1,000
MAC Address Table Size	32K
CPU	Multicore CPU
RAM	4 G
Flash Memory	2 G
Wireless
Number of AP per switch/stack	100
Number of wireless clients per switch/stack	2000
Total number of WLANs per switch	64
Wireless bandwidth per switch	up to 20Gbps
Supported Aironet AP series	3600, 3500, 2600, 1600, 1260, 1140, 1040
Expansion / Connectivity
Console ports	USB (Type-B), Ethernet (RJ-45)
Expansion Slot(s)	1 network module slot and 1 power redundant slot
Network Modules Selection	●C3850-NM-4-1G: 4 x 1G uplinks network module ●C3850-NM-2-10G: 2 x 10G or 4 x 1G uplinks network module
Stacking cable	●STACK-T1-50CM StackWise stacking cable with a 0.5 m length ●STACK-T1-1M StackWise stacking cable with a 1.0 m length ●STACK-T1-3M StackWise stacking cable with a 3.0 m length
Stack Power Cable (recommended)	●CAB-SPWR-30CM stack power cable with a 30CM length ●CAB-SPWR-150CM stack power cable with a 150CM length
Power supply	PWR-C1-715WAC
Power Device	Power supply - redundant - plug-in module
Power Redundancy	optional
Voltage range (Auto)	100V-240V
Power Consumption of standalone(in Watts)	88.32 (max)
