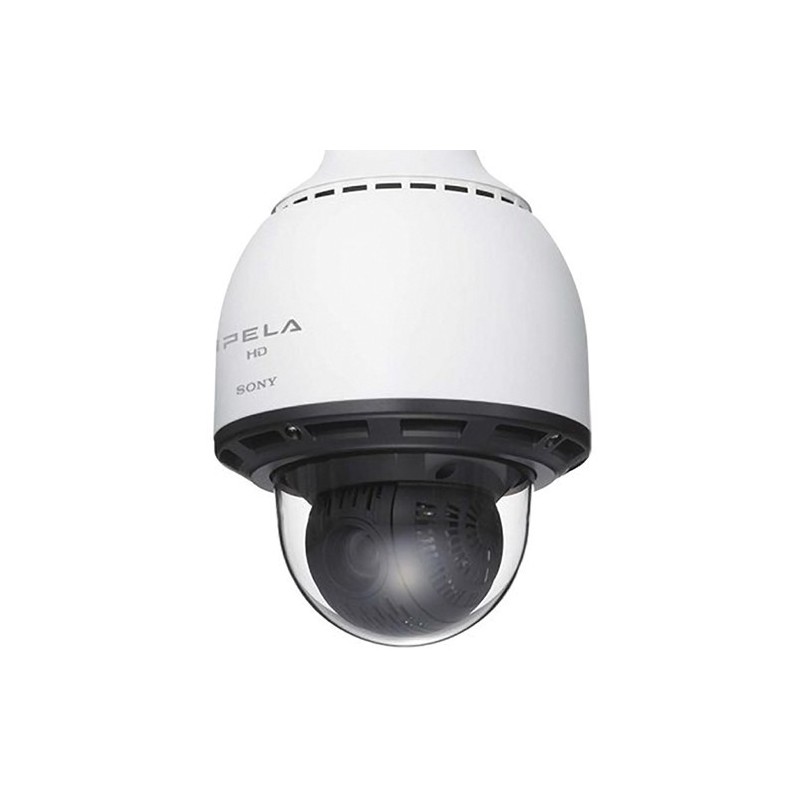

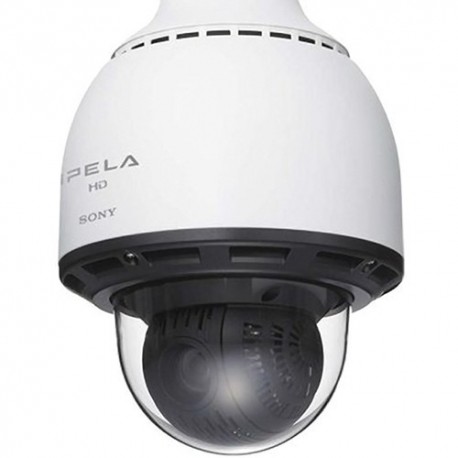

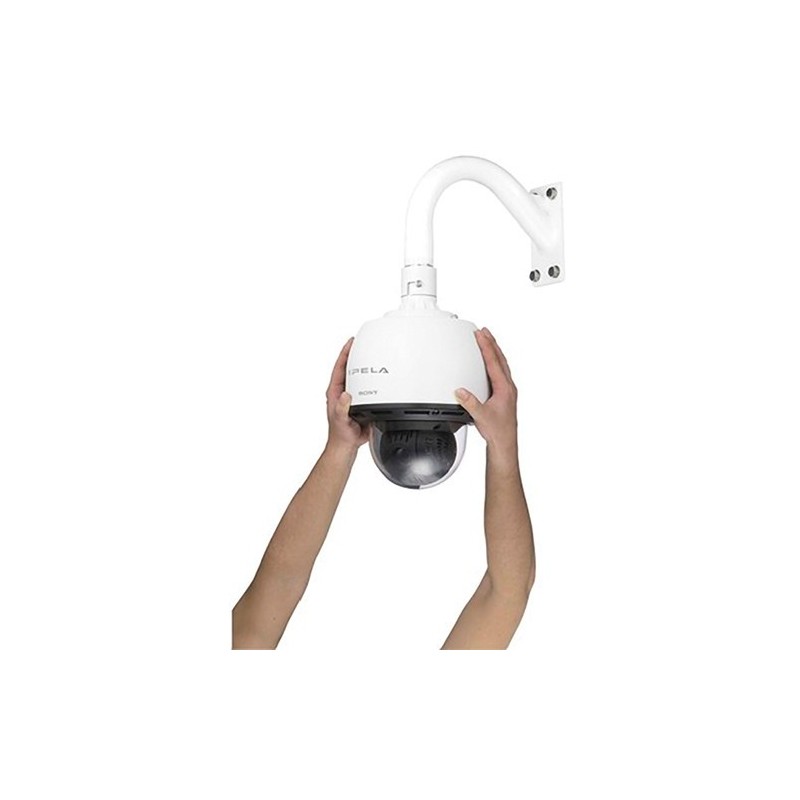

Sony SNC-RS86N Network Rapid Outdoor Dome Camera

Spesifikasi Produk Sony SNC-RS86N Network Rapid Outdoor Dome Camera

Camera Specifications
IP/Analog

• IP

Image Device

• 1/4-type CCD with Exwave HAD technology

Effective Pixels

• 380,000 (768 x 494)

Minimum Illumination

• Day=0.4lx (XDNR ON, VE ON, Slow Shutter OFF, 50IRE) 0.7lx (Slow Shutter OFF, 50IRE)

Night

• =0.08lx (XDNR ON, VE ON, Slow Shutter OFF, 50IRE) 0.15lx (Slow Shutter OFF, 50IRE)

Focal Length

• f=4.1 to 73.8 mm, 36x

F-Number

• F1.4 (wide), F3.0 (tele)

Pan Speed

• 360 degrees endless rotation

Tilt Angle

• 210 degrees (with e-flip)

Horizontal Viewing Angle

• 2.8 to 48.0 degrees

Image Specifications
Image Size

• 720 x 480, 640 x 480, 384 x288, 320 x 240 (H.264, MPEG-4, JPEG)

Compression Format

• H.264, MPEG-4, JPEG

Frame Rate

• H264/MPEG-4/JPEG: 30 fps (720 x 480)

Analog Video Output Specifications
Signal System

• NTSC

Horizontal Resolution

• 530 TV lines

S/N Ratio

• more than 50dB

Interface Specifications
Interface

• 10BASE-T / 100BASE-TX （RJ-45）

Serial Interface

• RS-232C/RS-422 (PELCO D protocol)

Analog Video Output

• Composite video (1Vp-p)

Audio Line Output

• Mini-jack (Monaural), Max output level： 1 Vrms

Audio Specifications
Audio Compression

• G.711/G.726

General Specifications
Weight

• Indoor Model: 4 lb 10 oz
• Outdoor Model: 9 lb 15 oz

Dimensions (W x H x D)

• Indoor Model: 6 1/8 x 9 inches
• Outdoor Model: 9 3/8 x 13 5/8 inches

Power Requirements

• Indoor Model: AC24V, DC12V, hPoE (future)
• Outdoor Model: AC24V

Power Consumption

• Indoor Model: 23 W
• Outdoor Model: 78 W

Operating Temperature

• Indoor Model: 32°F to 122°F -Outdoor Model: -40°F to 122°F

Compression

• H.264, MPEG4, JPEG

FPS

• variable up to 30
