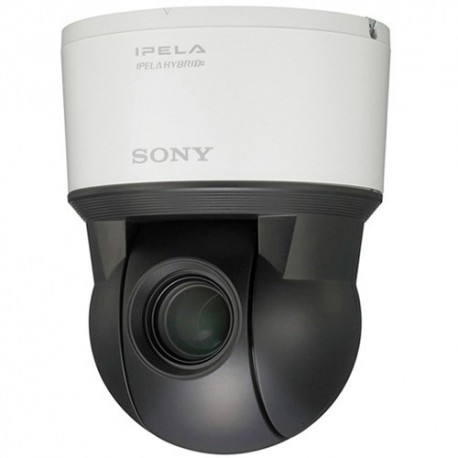

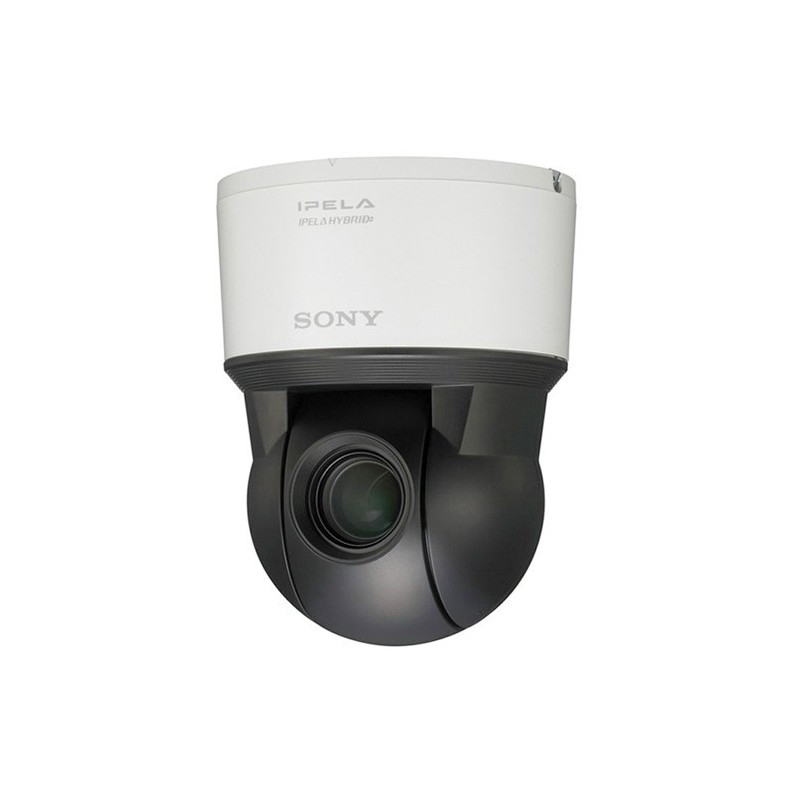

Sony SNC-ZP550 Network Pan-Tilt-Zoom Camera

Spesifikasi Produk Sony SNC-ZP550 Network Pan-Tilt-Zoom Camera

Camera Specifications
IP/Analog

• IP

Camera Type

• Hybrid PTZ HD Camera

Image Device

• 1/4-type Exmor CMOS sensor

Effective Pixels

• Approx. 1.43 Megapixel

Minimum Illumination

• Color: 1.00 lx, B/W: 0.10 lx (F1.35, shutter 1/30 s, AGC ON, 50 IRE [IP])

Lens Type

• Auto-focus zoom lens

Focal Length

• f = 3.5 mm to 98 mm

F-Number

• F1.35 (Wide), F3.7 (Tele)

Pan Angle

• Pan/Tilt Angle - 340º field of rotation / tilt angle of 105º

Pan Speed

• Pan/Tilt Speed - 300º/s (max)

Day Night

• Yes, true day/night

Wide-D

• Yes

Zoom Ratio

• Optical zoom 28x, Digital zoom 12x, Total zoom 336x

Minimum Object Distance

• 10 mm (wide) to 1500 mm (tele)

Horizontal Viewing Angle

• 55.9º to 2.1º

Electronic Shutter

• 1/1 s to 1/10,000 s

Exposure Control

• Full auto, Shutter priority, Iris priority, Manual

Gain

• Auto/Manual (-3 dB to 28 dB)

Other Functions

• Preset positions - 256

Tours - 5

• Noise reduction - Yes

Image Specifications
Image Size

• 1280 x 720, 1024 x 576, 800 x 600, 800 x 480, 768 x 576, 720 x 576, 704 x 576,720 x 480, 640 x 480, 640 x 368, 384 x 288, 320 x 240, 320 x 192

Compression Format

• H.264, MPEG-4, JPEG

Frame Rate

• Max - 30 fps (H.264, MPEG-4, JPEG) at 1280 x 720

Analog Video Output Specifications
Signal System

• NTSC color system/PAL color system (switchable)

Interface Specifications
Network

• 10BASE-T/100BASE-TX (RJ-45)

External Microphone Input

• Mini jack (monaural)

General Specifications
Dimensions (W x H x D)

• ø5 7/8 inches × 7 5/8 inches (147.4 mm x 190.9 mm)

Power Requirements

• HPoE (IEEE802.3at compliant, LAN mode only)*2, AC 24 V

Power Consumption

• 25.0 W max.

Operating Temperature

• 23 °F to 122 °F (-5 °C to +50 °C)

Storage Temperature

• -4 °F to +140 °F (-20 °C to +60 °C)

Storage Humidity

• 20% to 95%

Compression

• H.264, MPEG4, JPEG
