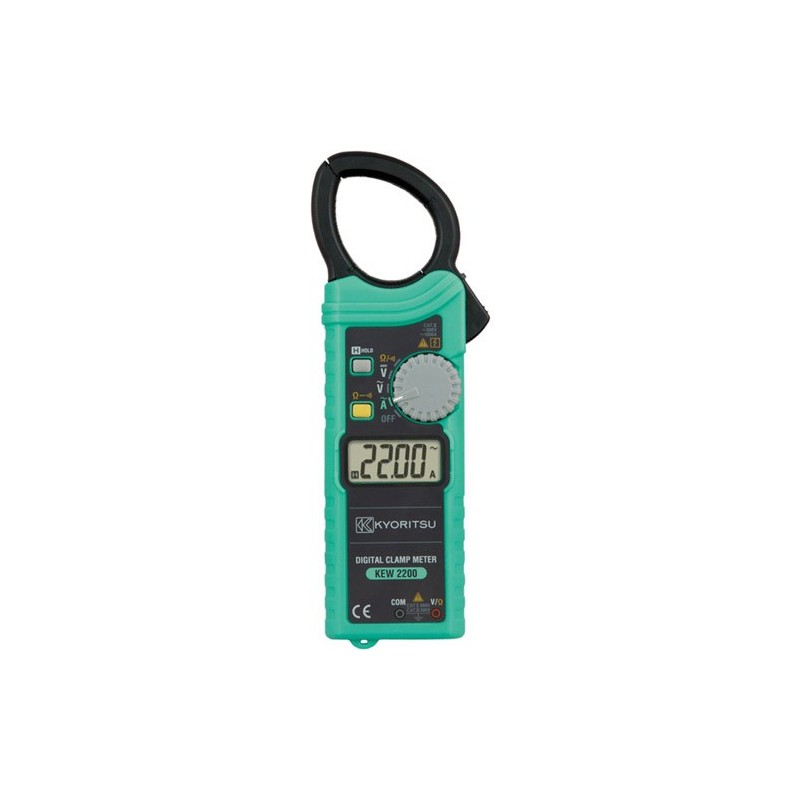

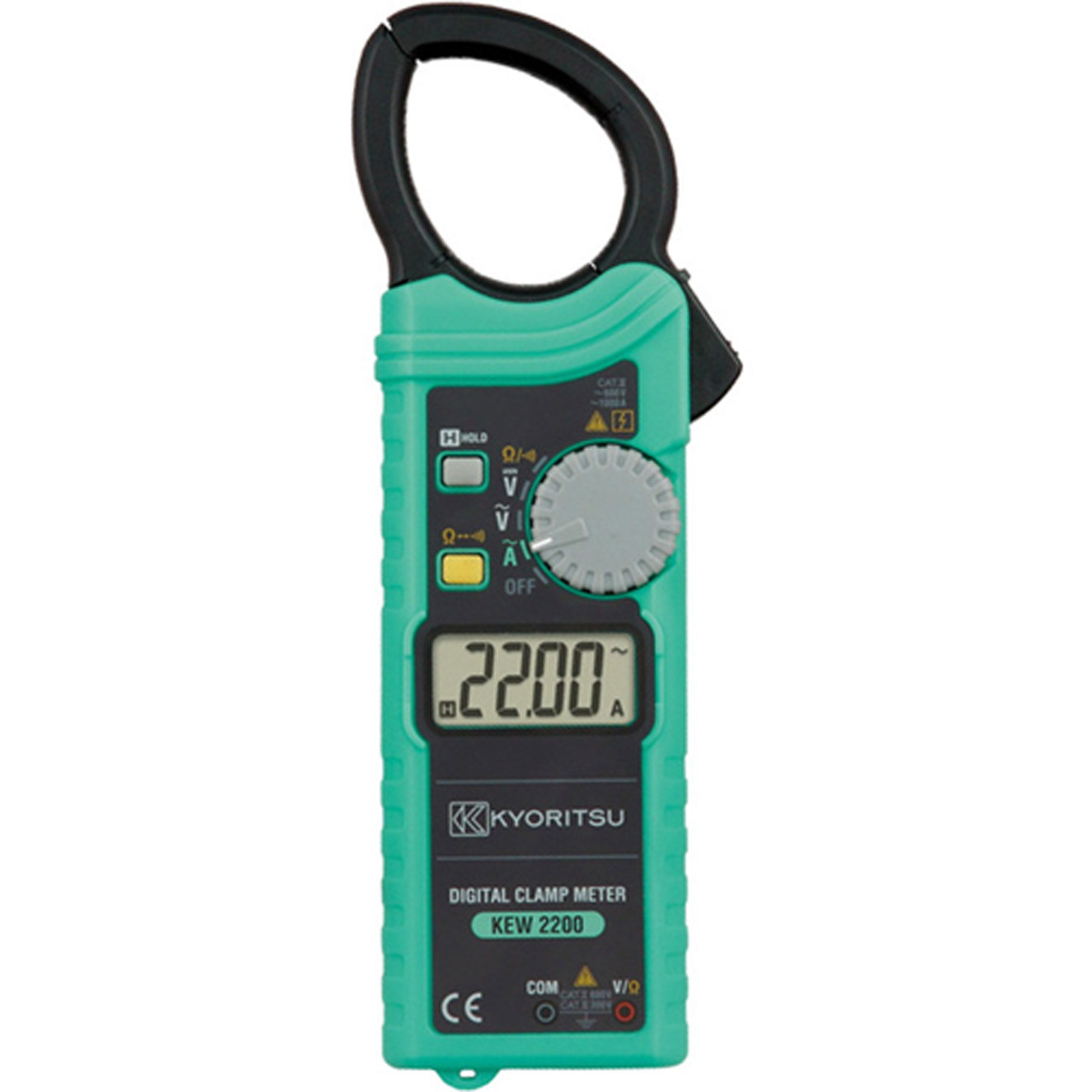

Kyoritsu 2200 AC Digital Clamp Meters
Kode Produk: 14626
ANG1216/ET8/L10Produk baru
- Ultra Slim dan desain Berguna ringan
- 1000A AC Clamp meter AC40 / 400 / 1000A Auto Rentang
- Ø33mm Tear Drop Jaw mudah digunakan di tempat-tempat yang ketat
- fungsi DMM ACV, DCV, Ω, Continuity Buzzer
- Fuseless perlindungan elektronik di atas Ω / ke 600V
- Standar Keselamatan IEC61010-1
- CAT III 600V (AC A) CAT III 300V / CAT II 600V (AC / DC V)
Info lainnya
Spesifikasi Kyoritsu 2200 AC Digital Clamp Meters
| AC A | 40.00/400.0/1000A (Auto-ranging) ±1.4%rdg±6dgt (50/60Hz) ±1.6%rdg±6dgt (45 - 65Hz |
| AC V | 4.000/40.00/400.0/600V (Auto-ranging) ±1.8%rdg±7dgt (45 - 65Hz) ±2.3%rdg±8dgt (65 - 500Hz) |
| DC V | 400.0mV/4.000/40.00/400.0/600V (Auto-ranging) ±1.0%rdg±3dgt (*1) |
| Ω | 400.0Ω/4.000/40.00/400.0kΩ/4.000/40.00MΩ (Auto-ranging) ±2.0%rdg±4dgt (0 - 400kΩ) ±4.0%rdg±4dgt (4MΩ) ±8.0%rdg±4dgt (40MΩ) |
| Continuity buzzer | buzzer sounds below 50±30Ω |
| Conductor size | Ø33mm max. |
| Applicable standards | IEC 61010-1 CAT III 600V Pollution degree 2 (AC A), CAT III 300V / CAT II 600V Pollution degree 2 (AC/DC V) IEC 61010-031, IEC 61010-2-032, IEC 61326 (EMC) |
| Power source | R03/LR03 (AAA) (1.5V) × 2 *continuous measuring time: approx. 350 hours (Auto power off: approx. 10 minutes) |
Berat dan ukuran Kyoritsu 2200 AC Digital Clamp Meters
| Dimensions | 190(L) × 68(W) × 20(D)mm |
| Weight Approx. | 120g (including batteries) |
Isi Paket Kyoritsu 2200 AC Digital Clamp Meters
| Included Accessories | 7107A (Test leads), 9160 (Carrying case), R03 (AAA) × 2, Instruction Manual |
| Optional Accessories | 8008 (Multi-Tran) |
Ringkasan Produk Kyoritsu 2200 AC Digital Clamp Meters
- Ultra Slim dan desain Berguna ringan
- 1000A AC Clamp meter AC40 / 400 / 1000A Auto Rentang
- Ø33mm Tear Drop Jaw mudah digunakan di tempat-tempat yang ketat
- fungsi DMM ACV, DCV, Ω, Continuity Buzzer
- Fuseless perlindungan elektronik di atas Ω / ke 600V
- Standar Keselamatan IEC61010-1
- CAT III 600V (AC A) CAT III 300V / CAT II 600V (AC / DC V)
