Fluke 317 Clamp Meter

Spesifikasi Produk Fluke 317 Clamp Meter

Country of Origin

• • • • USA

General Specifications
Digital Display

• • • • 6000 count resolution

Low Battery Indication

• • • • Displays a signal when the batteries are below their required voltage

Power Source

• • • • Three AAA IEC LR03 batteries

Clamp Opening Size

• • • • 1.45 in (37 mm)

Jaw Diameter

• • • • 1.45 in (37 mm)

Auto Range

• • • • Available in Ohms

Safety

• • • • CE
      • EN/IEC 61010-1 and IEC 61010-2-032
      • Measurement Category: 600V CAT III

317 Electrical Specifications
Current AC
Range

• • • • 40.00 A, 600.0 A

Resolution

• • • • 0.01 A, 0.1 A

Accuracy

• • • • 1.6% ± 6 digit (50-60 Hz) {40 A}
      • 2.5% ± 8 digit (60-500 Hz) {40 A}
      • 1.5% ± 5 digit (50-60 Hz) {600 A}
      • 2.5% ± 5 digit (60-500 Hz) {600 A}
      • Crest Factor add 2% into spec for CF > 2
      • 3.0 Max @ 500 A, 2.5 Max @ 600 A

AC response

• • • • rms

Current DC
Range

• • • • 40.00 A, 600.0 A

Resolution

• • • • 0.01 A, 0.1 A

Accuracy

• • • • 1.6% ± 6 digit (40 A)
      • 1.5% ± 5 digit (600 A)

Voltage AC
Range

• • • • 600.0 V

Resolution

• • • • 0.1 V

Accuracy

• • • • 1.5% ± 5 digit (20-500Hz)

AC response

• • • • rms

Voltage DC
Range

• • • • 600.0 V

Resolution

• • • • 0.1 V

Accuracy

• • • • 1% ± 4 digit

Resistance
Range

• • • • 400.0 Ω, 4000 Ω

Resolution

• • • • 0.1 Ω, 1 Ω

Accuracy

• • • • 1% ± 5 digit

Continuity

• • • • ≤ 30 Ω

Inrush
Integration time

• • • • N/A

Frequency
Range

• • • • N/A

Accuracy

• • • • N/A

Trigger Level

• • • • N/A

The accuracy specifications aply at 73 °F ± 41 °F (23 °C ± 5 °C)
Below 64 °F and above 82 °F (18 °C and above 28 °C) accuracy degrades at (0.1) times specification per °C.
True rms for ac V and ac A accuracy is specified from 5% to 100% of range.
Environmental Specifications
Operating Temperature

• • • • 14°F to 122°F (-10°C to 50°C)

Storage Temperature

• • • • -40°F to 140°F (-40°C to 60°C)

Operating Humidity

• • • • Non condensing (< 50°F) (< 10°C)
      • 90% RH (50°F to 86°F) (10°C to 30°C)
      • 75% RH (86°F to 104°F) (30°C to 40°C)
      • 45% RH (104°F to 122°F) (40°C to 50°C)
      • (Without Condensation)

Operating Altitude

• • • • 1 mile (2000 meters) above mean sea level

Storage Altitude

• • • • 7 miles (12,000 meters) above mean sea level

IP Rating

• • • • IP40

Vibration Requirements

• • • • Random MIL-PRF-28800F Class 2, 5-500 Hz, 30 minutes per axis

Drop Test Requirements

• • • • 3 ft (1 m) drop test, six sides, oak floor

EMI, RFI, EMC

• • • • Instrument unspecified for use in EMC field ≥ 0.1 V/m

Temperature Coefficients

• • • • 0.1x (specified accuracy)/°C
      • (<64°F or > 82°F)
      • (<18°C or > 28°C)

Berat dan ukuran Fluke 317 Clamp Meter

Dimensions (L x W x H)

• • • • 6.39 in x 2.29 in x 1.20 in  (162.4 mm x 58.25 mm x 30.5 mm)

Weight

• • • • approximately 13.5 oz (384 g) (batteries included)

Isi Paket Produk Fluke 317 Clamp Meter

• • • • 1xFluke 317 Clamp Meter

Ringkasan produk Fluke 317 Clamp Meter

Special 40A high accuracy AC/DC high measure, 1.6% accuracy, 0.01A resolution
Small body and jaws fit perfectly in your hand and into tight places
Bodi ringkas dan rahang yang mencapit dengan sempurna dan pas ditangan Anda.
Layar besar disertai backlit display sehingga mudah dilihat dalam segala kondisi
Resolution up to 0.01A and 0.1 V
Penghitungan Voltase AC/DC hingga 600 V
Penghitungan resistensi hingga 4000 Ω
Pemeriksaan singkat untuk kontinuitas
Auto-shut-off memperanjang battery life.
Fungsi hold display

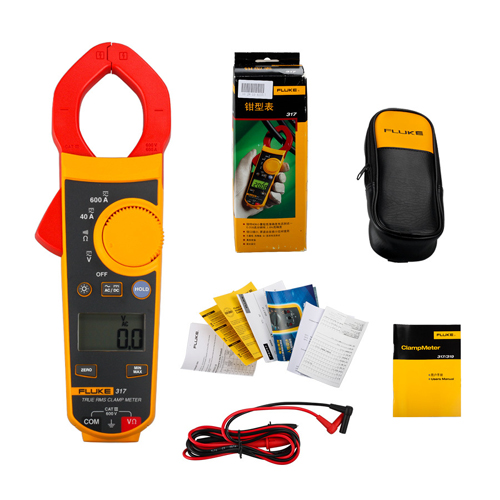

Gallery Image Produk Fluke 317 Clamp Meter
