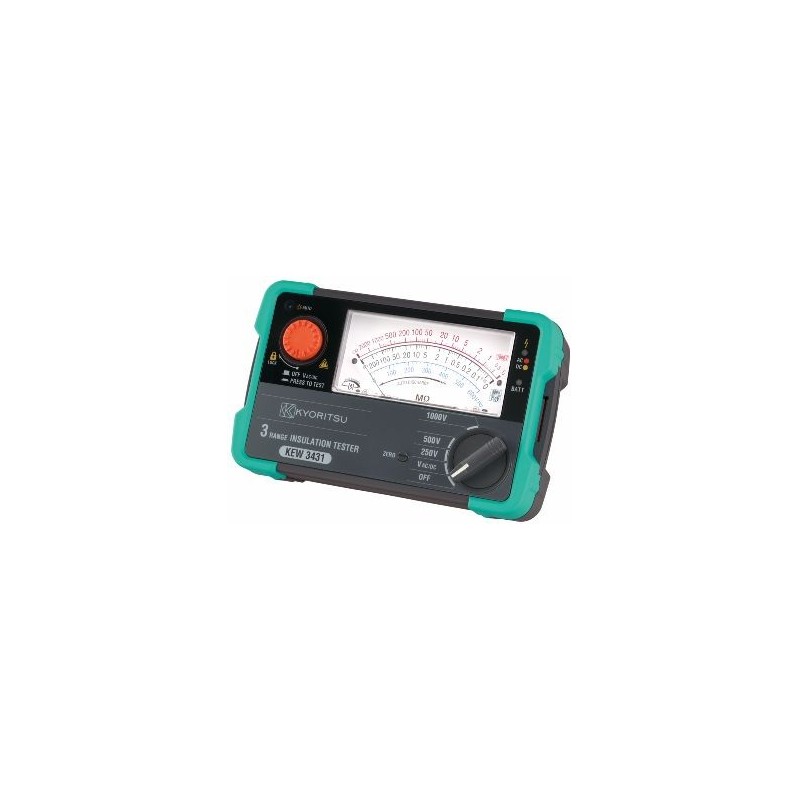

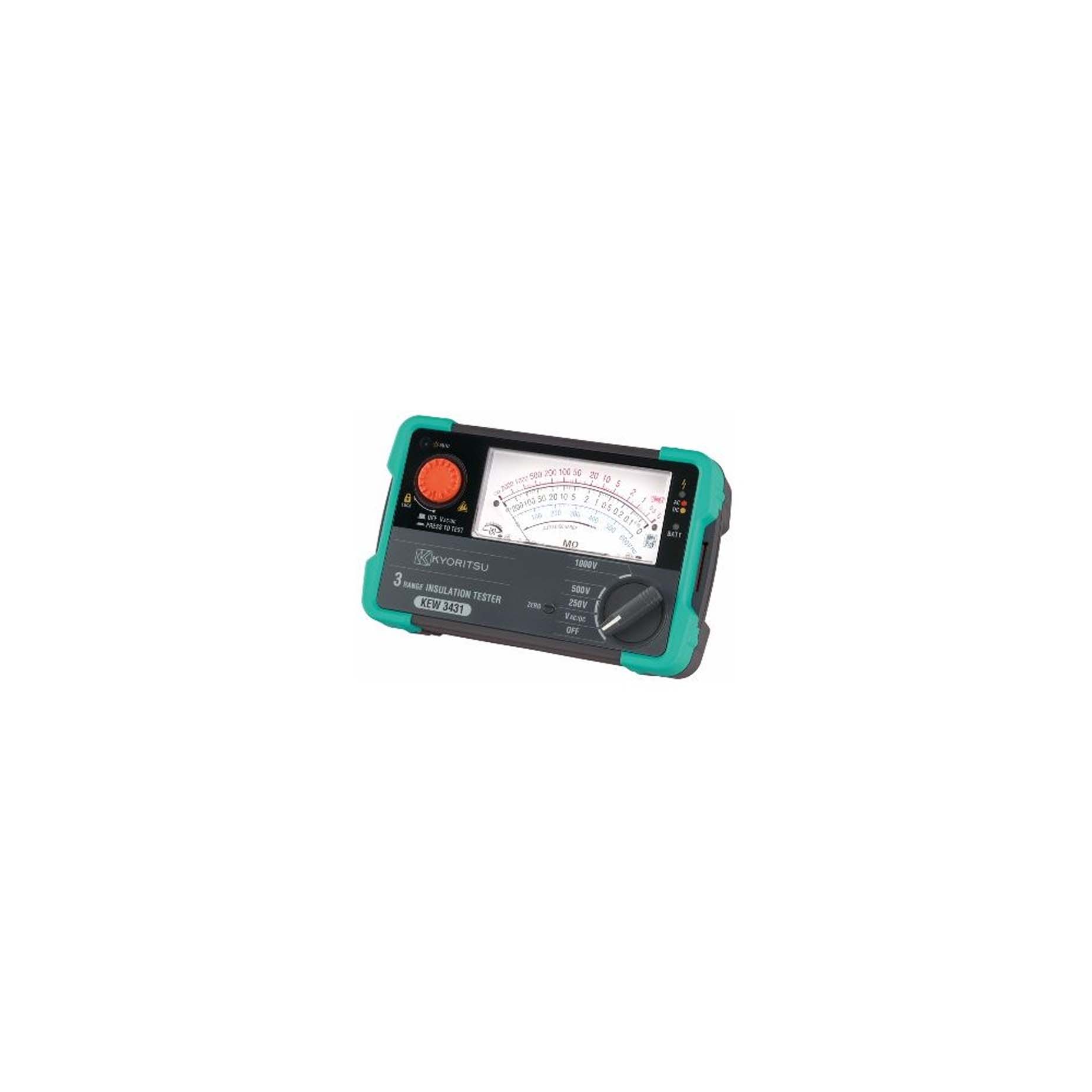

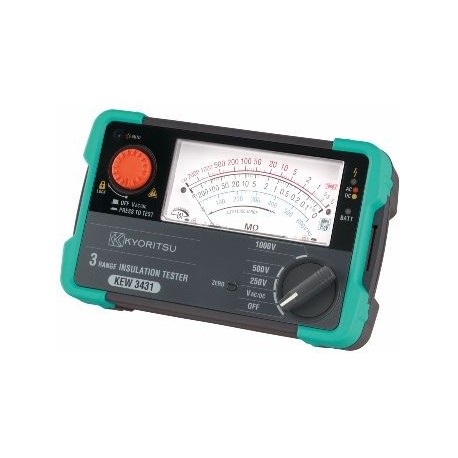

Kyoritsu KEW 3431 Analogue Insulation Testers
Kode Produk: 15232
AI1018Produk baru
Info lainnya
Spesifikasi Kyoritsu KEW 3431 Analogue Insulation Testers
| Insulation resistance | |
| Test voltage (250V / 500V) | Max. effective scale value : 200MΩ Mid-scale value : 5MΩ First effective measuring ranges : 0.1MΩ - 100MΩ Accuracy : ±5% of indicated value Second effective measuring ranges : Measuring ranges other than above, 0 and ∞ Accuracy : ±10% of indicated value LED insulation state indicator indicating result by red / green color : 0.25MΩ 0.5MΩ |
| Voltage measurement | |
| Voltage range | AC 600V [45 - 65Hz]/DC 600V |
| Accuracy | ±5% of full scale value |
| Applicable Standards | IEC 61010-1, 2-030 CAT Ⅲ 600V, IEC 61557-1, -2 IEC 61010-031, IEC 61326(EMC), EN 50581(RoHS) |
| Power source | LR6/R6(AA)(1.5V) × 4 |
Berat dan ukuran Kyoritsu KEW 3431 Analogue Insulation Testers
| Dimensions | 97(L) × 156(W) × 46(D)mm |
| Weight | 430g |
Isi Paket Kyoritsu KEW 3431 Analogue Insulation Testers
| Included Accessories | 7260(Test lead with remote control switch), 7261(Test lead with alligator clip), 9173(Carrying case), 8017A(Extension prod long), 9121(Shoulder strap), LR6(AA) × 4, Instruction manual |
Ringkasan Produk Kyoritsu KEW 3431 Analogue Insulation Testers
Desain yang sangat ringkas dan ringan. Sensor otomatis mengubah skala yang menyala dan lampu LED tempat ON / OFF, berguna di lokasi yang remang-remang. Aksesori standar termasuk probe uji dengan sakelar kendali jarak jauh dan tas pembawa pelindung. Peringatan sirkuit langsung dengan buzzer dan lampu kilat LED.30 produk lainnya dikategori yang sama:
-
