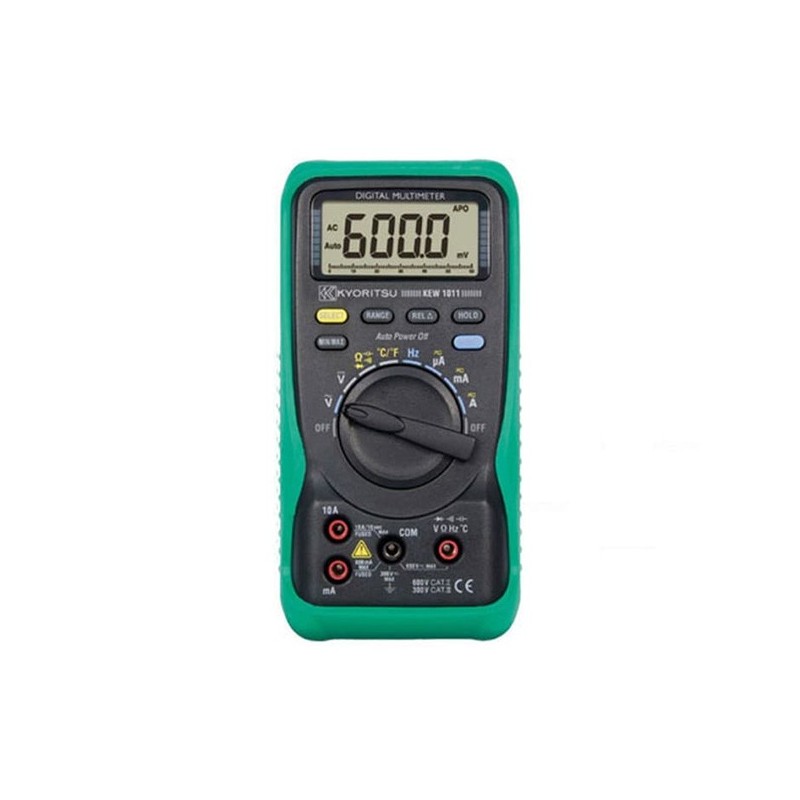

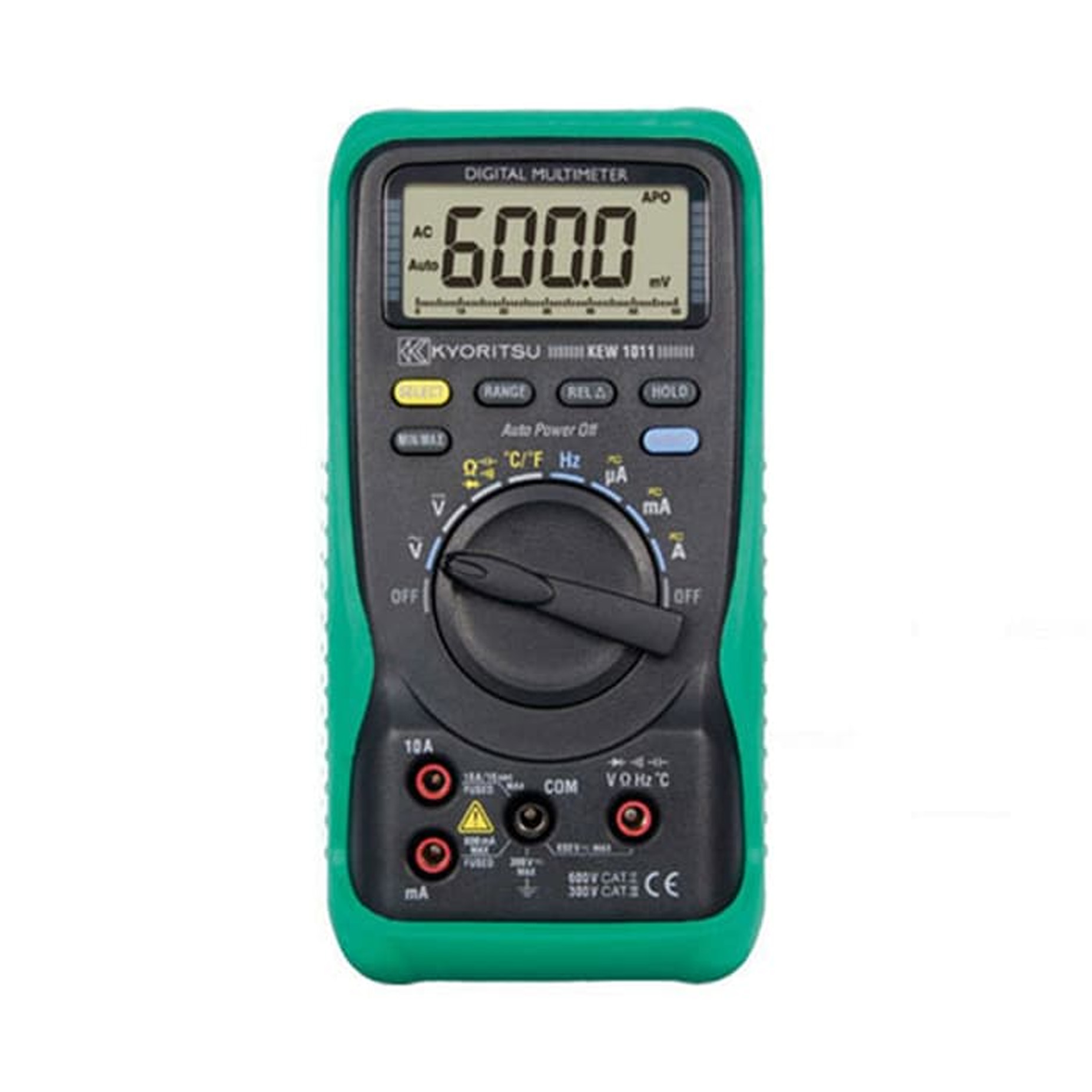

Kyoritsu KEW 1011 Digital Multimeters
Kode Produk: 15316
SC1218Produk baru
0 - 600Ω (Buzzer sounds below 100Ω), IEC 61010-1 CAT III 300V Pollution degree 2, IEC 61010-1 CAT II 600V Pollution degree 2, IEC 61010-031, IEC 61326
Info lainnya
Spesifikasi Kyoritsu KEW 1011 Digital Multimeters
| DC V | 600.0mV/6.000/60.00/600.0/600V (Input Impedance: 10MΩ, 100MΩ only 600mV) ±0.5%±2dgt (600.0mV/6.000/60.00/600.0V) ±0.8%±3dgt (600V) |
| AC V | 6.000/60.00/600.0/600V (Input Impedance: 10MΩ) ±1.0%±3dgt (6.000/60.00/600.0V)±1.5%±3dgt (600V) |
| DC A | 600/6000µA/60/600mA/6/10A ±1.2%±3dgt (600/6000µA/60/600mA) ±2.0%±5dgt (6/10A) |
| AC A | 600/6000µA/60/600mA/6/10A ±1.5%±4dgt (600/6000µA/60/600mA) ±2.2%±5dgt (6/10A) |
| Ω | 600Ω/6/60/600kΩ/6/60MΩ ±1.0%±2dgt (600Ω/6/60/600kΩ/6MΩ) ±2.0%±3dgt (60MΩ) |
| Continuity buzzer | 0 - 600Ω (Buzzer sounds below 100Ω) |
| Diode test | 2.8V Release Voltage:Approx. 0.4mA Test Current |
| Capacitance | 40/400nF/4/40/400/4000µF |
| Frequency | 10/100/1000Hz/10/100/1000kHz/10MHz |
| DUTY | 0.1 - 99.9% (Pulse width/Pulse period) ±2.0%±2dgt (- 10kHz) |
| Temperature | -50 - 300ºC (-58 - 572ºF) (with the use of Temperature probe 8216) Note: KEW 1011 can measure max. 700ºC In order to measure over 300ºC, please use a K-type temperature probe available in the market. |
| Applicable standards | IEC 61010-1 CAT III 300V Pollution degree 2 IEC 61010-1 CAT II 600V Pollution degree 2 IEC 61010-031 IEC 61326 |
| Display | 6040 Counts |
| Power source | R6 (1.5V) × 2 (Auto-power-OFF within 15 minutes) |
Berat dan ukuran Kyoritsu KEW 1011 Digital Multimeters
| Dimensions | 161(L) × 82(W) × 50(D)mm |
| Weight | Approx. 280g |
Isi Paket Kyoritsu KEW 1011 Digital Multimeters
| Package Contents |
|
Ringkasan Produk Kyoritsu KEW 1011 Digital Multimeters
• Pengukuran suhu, dapat dipilih untuk ºC dan ºF• 6040 hitungan dengan tampilan Grafik Batang
• Fungsi MIN / MAX memungkinkan untuk mencatat nilai min & max
• Fungsi REL (nilai relatif) untuk menunjukkan variasi pengukuran
