Fluke Networks MicroScanner2 MS2-TTK Termination Test Kit
Kode Produk: 15184
EV0918Produk baru
Info lainnya
Spesifikasi Fluke Networks MicroScanner2 MS2-TTK Termination Test Kit
|
Test Connectors |
Twisted-pair: UTP, FTP, SSTP 8-pin modular jack accepts 8-pin modular (RJ45) and 4-pin modular (RJ11) plugs; Coax: F-connector for 75 Ω, 50 Ω, 93 Ω cables |
|
Cable Tests |
Length (460 m or 1500 ft. with resolution to 0.3 m or 1 ft.), wiremap to TIA-568A/B standards, remote ID locators; displays results on one screen |
|
Tone Generator |
IntelliTone digital tone: [500 KHz]; analog tones: [400Hz, 1KHz] |
|
PoE Detection |
Solicits and detects the presence of 802.3af compatible PoE (Power over Ethernet) devices |
|
Ethernet Port Test |
Advertised speed of 802.3 Ethernet ports (10/100/1000) |
|
Power Source |
Battery type: 2 AA (NEDA 15A, IEC LR6) alkaline batteries |
|
Dimensions |
3 in x 6.4” x 1.4 in (7.6 cm x 16.3 cm x 3.6 cm) |
|
Weight |
0.8 lbs. (363 grams) |
|
Display |
Monochrome liquid crystal display (LCD) with backlight |
|
Calibration |
User-configurable NVP for twisted pair and coax; determines actual NVP with known length of cable |
|
Operating Temperature |
32 °F to 113 °F (0 oC to 45 oC) |
|
Storage Temperature |
-4 °F to +140 °F (-20 oC to +60 oC) |
|
Operating Humidity |
90 % (50 °F to 95 °F; 10 oC to 35 oC) |
|
(%RH without condensing) |
75 % (95 °F to 113 °F; 35 oC to 45 oC) |
| Shock Vibration | Meets requirements for MIL-PRF-28800F for Class 2 random vibration; 1 m drop test with and without wiremap adapter attached |
| Safety | EN 61010-1 2nd Edition |
| Altitude | 4000 m; Storage: 12000 m |
| EMC | EN 61326-1 |
| Agency Certifications | N10140 C-Tick EMC standard; FCC Part 15 Class A; CE European Union Directives Pollution Degree 2 |
| Warranty | One year |
Berat dan ukuran Fluke Networks MicroScanner2 MS2-TTK Termination Test Kit
| Dimensions | 3 in x 6.4” x 1.4 in (7.6 cm x 16.3 cm x 3.6 cm) |
| Weight | 0.8 lbs. (363 grams) |
Isi Paket Fluke Networks MicroScanner2 MS2-TTK Termination Test Kit

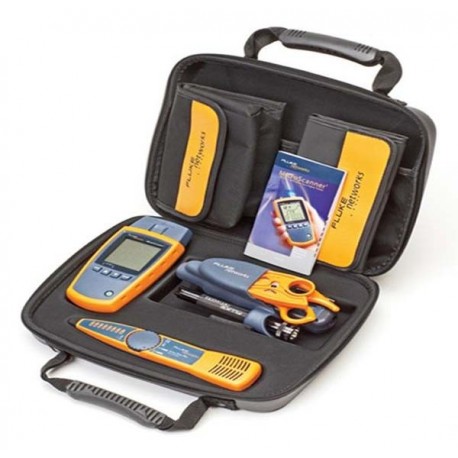

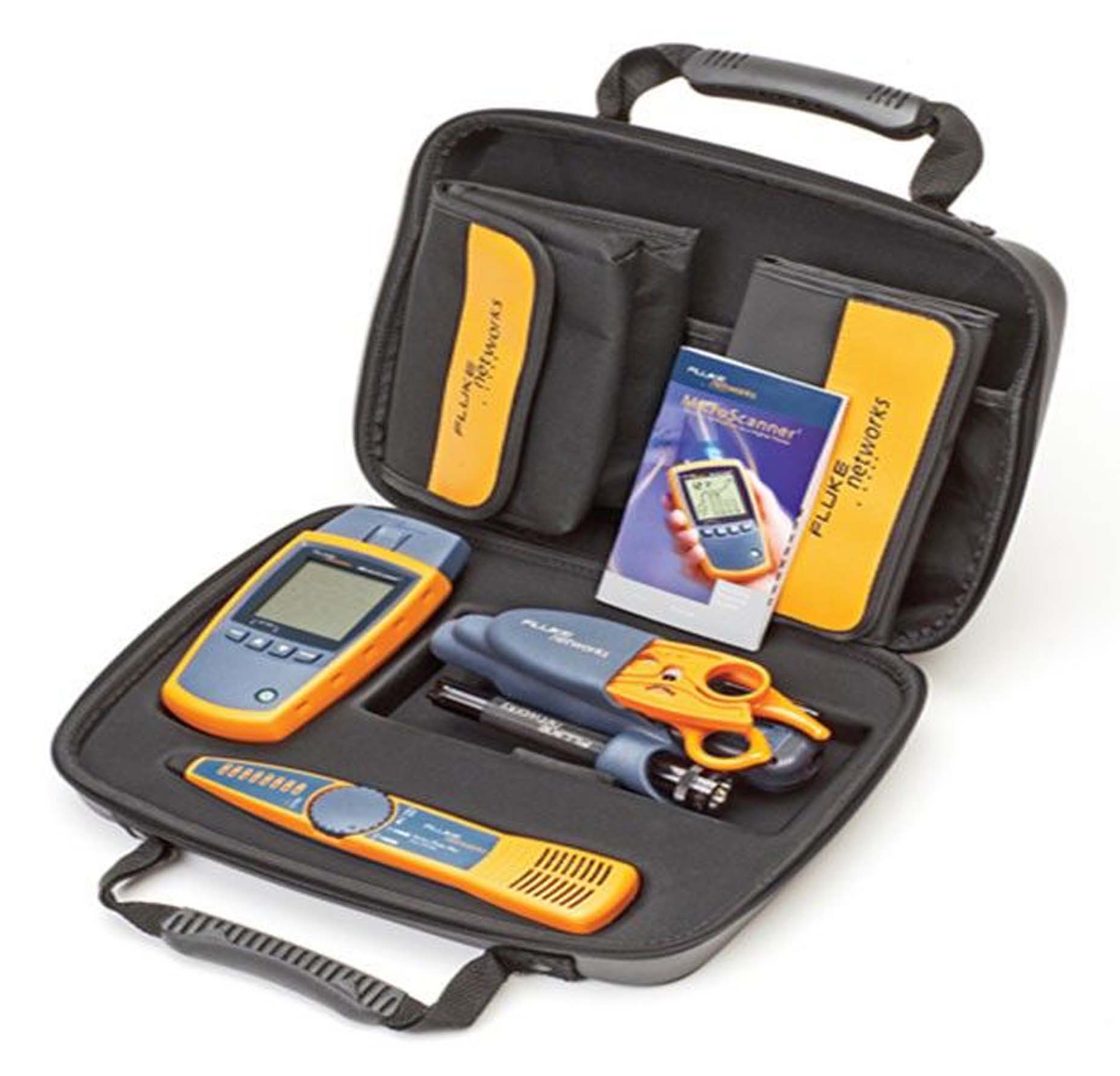

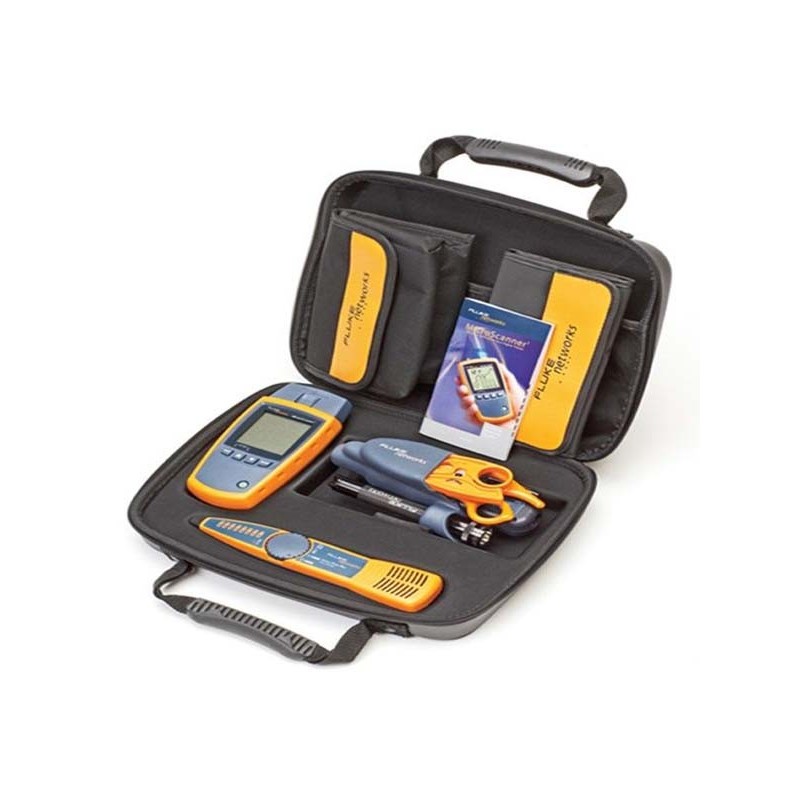

| What's In The Box | (1) MicroScanner2 Cable Verifier with Main Wiremap Adapter (1) IntelliTone Pro 200 Probe (1) Set of Remote Identifiers # 2-7 (1) Shielded twisted-pair RJ45 patch cord (1) RJ11 patch cord (1) Clip-set RJ45 to 8 alligator clip bare wire adapter (1) F Coax push on patch cord (1) Accessory soft pouch (2) AA alkaline batteries (1) 9V alkaline battery (10 MicroScanner2 Getting Started Guide (1) IntelliTone Pro Getting Started Guide (1) Deluxe Carrying Case |
Ringkasan Produk Fluke Networks MicroScanner2 MS2-TTK Termination Test Kit
Fluke Networks MS2-TTK MicroScanner2 Termination Kit menyajikan perubahan revolusioner dalam pengujian kabel suara, data, dan video. Ini dimulai dengan mengambil hasil dari empat mode pengujian yang berbeda dan menampilkan semuanya sekaligus - wiremap grafis, panjang pasangan, jarak ke kesalahan, ID kabel, dan perangkat ujung jauh. Terlebih lagi, port uji RJ11, RJ45, dan coax terintegrasi mendukung hampir semua jenis pengujian kabel tegangan rendah tanpa memerlukan adaptor canggung. Hasil akhirnya adalah pengurangan waktu tes dan kesalahan teknisi. Itu membuat instalasi berkualitas tinggi lebih efisien dari sebelumnya.Fluke Networks MS2-TTK MicroScanner2 Termination Kit fitur built-in IntelliTone digital dan analog toning untuk secara tepat menemukan hampir semua kabel atau pasangan kawat, terlepas dari lingkungan kerja. Gunakan mode digital untuk mencari pemasangan kabel data bermutu tinggi (Cat 5e / 6 / 6a) dalam bundel, atau pada sakelar, panel tempel, atau stopkontak dinding. Atau, gunakan mode analog pada kabel tingkat suara (Cat 3 dan yang lebih rendah), serta kabel coax, keamanan / alarm, dan kabel speaker
