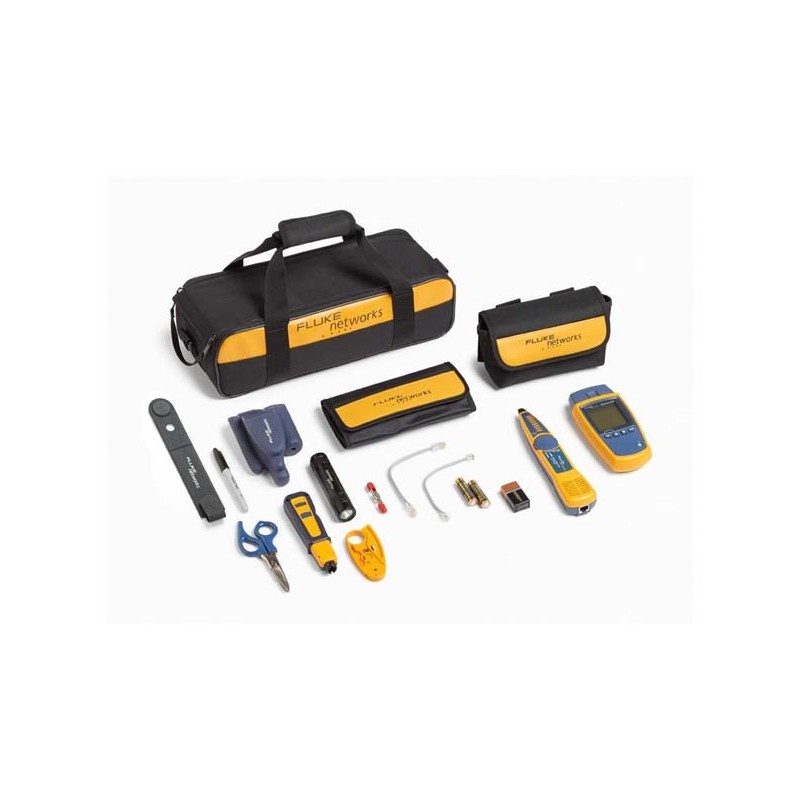

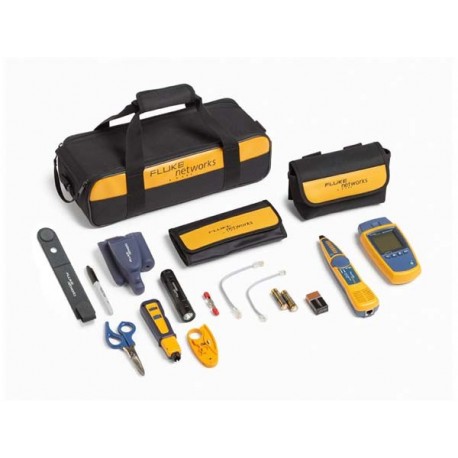

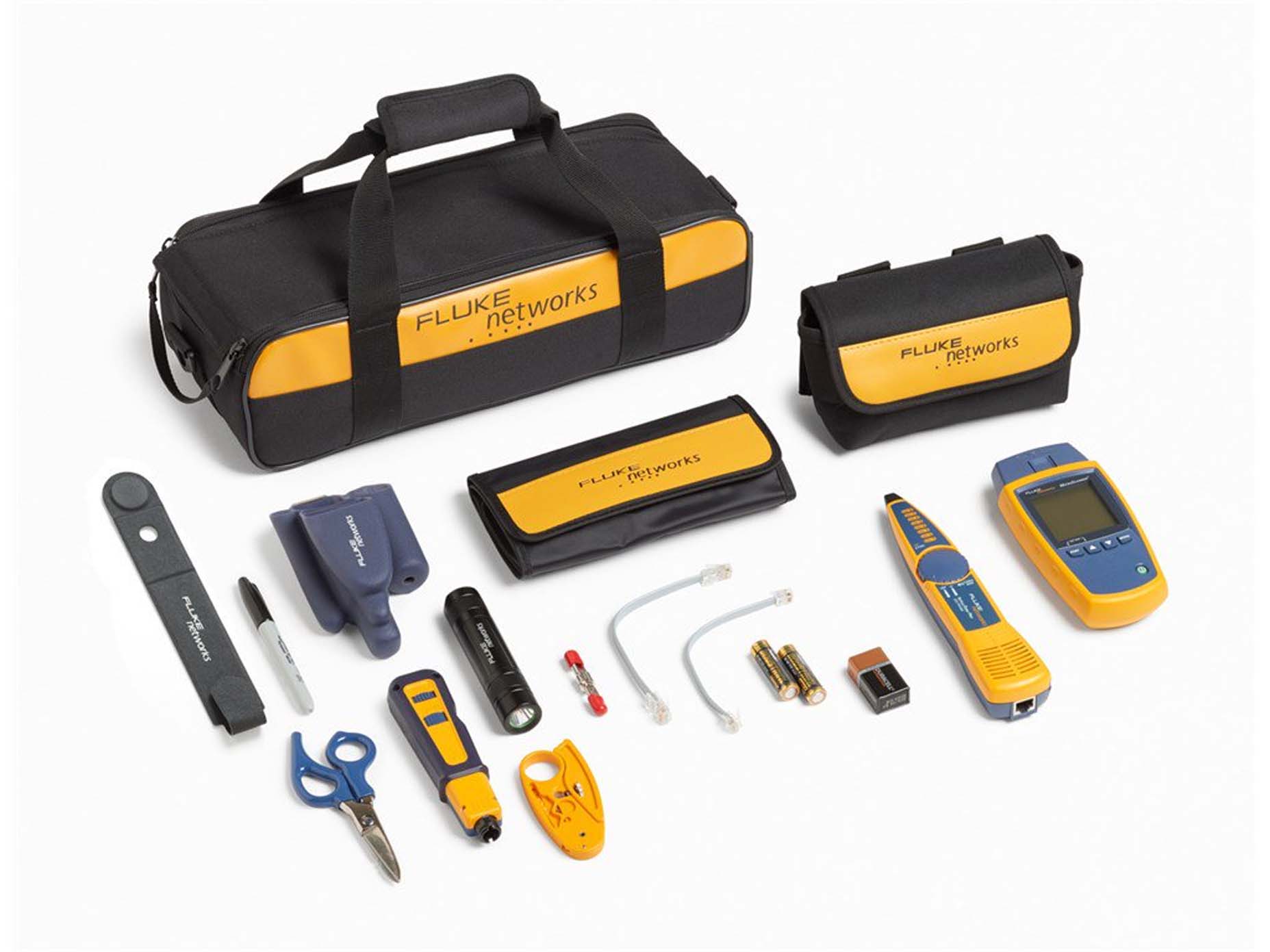

Fluke Networks MicroScanner2 MS2-FTK Copper/Fiber Basic Technicians Kit
Kode Produk: 15185
EV0918Produk baru
Info lainnya
Spesifikasi Fluke Networks MicroScanner2 MS2-FTK Copper/Fiber Basic Technicians Kit
|
Test Connectors |
Twisted-pair: UTP, FTP, SSTP 8-pin modular jack accepts 8-pin modular (RJ45) and 4-pin modular (RJ11) plugs; Coax: F-connector for 75 Ω, 50 Ω, 93 Ω cables |
|
Cable Tests |
Length (460 m or 1500 ft. with resolution to 0.3 m or 1 ft.), wiremap to TIA-568A/B standards, remote ID locators; displays results on one screen |
|
Tone Generator |
IntelliTone digital tone: [500 KHz]; analog tones: [400Hz, 1KHz] |
|
PoE Detection |
Solicits and detects the presence of 802.3af compatible PoE (Power over Ethernet) devices |
|
Ethernet Port Test |
Advertised speed of 802.3 Ethernet ports (10/100/1000) |
|
Power Source |
Battery type: 2 AA (NEDA 15A, IEC LR6) alkaline batteries |
|
Dimensions |
3 in x 6.4” x 1.4 in (7.6 cm x 16.3 cm x 3.6 cm) |
|
Weight |
0.8 lbs. (363 grams) |
|
Display |
Monochrome liquid crystal display (LCD) with backlight |
|
Calibration |
User-configurable NVP for twisted pair and coax; determines actual NVP with known length of cable |
|
Operating Temperature |
32 °F to 113 °F (0 oC to 45 oC) |
|
Storage Temperature |
-4 °F to +140 °F (-20 oC to +60 oC) |
|
Operating Humidity |
90 % (50 °F to 95 °F; 10 oC to 35 oC) |
|
(%RH without condensing) |
75 % (95 °F to 113 °F; 35 oC to 45 oC) |
| Shock Vibration | Meets requirements for MIL-PRF-28800F for Class 2 random vibration; 1 m drop test with and without wiremap adapter attached |
| Safety | EN 61010-1 2nd Edition |
| Altitude | 4000 m; Storage: 12000 m |
| EMC | EN 61326-1 |
| Agency Certifications | N10140 C-Tick EMC standard; FCC Part 15 Class A; CE European Union Directives Pollution Degree 2 |
| Warranty | One year |
Berat dan ukuran Fluke Networks MicroScanner2 MS2-FTK Copper/Fiber Basic Technicians Kit
| Dimensions | 3 in x 6.4” x 1.4 in (7.6 cm x 16.3 cm x 3.6 cm) |
| Weight | 0.8 lbs. (363 grams) |
Features Fluke Networks MicroScanner2 MS2-FTK Copper/Fiber Basic Technicians Kit
| Features | Dual-wavelength testing Tests multimode and singlemode fiber Measures optical power and loss at 850 nm and 1300 nm using the 850/1300 source and meter Measures optical power and loss at 1310 nm and 1550 nm using the 1310/1550 source; calibrated wavelengths in the power meter at 1490 nm and 1625 nm also allow for readings from other sources Offers quick remote identification of cabling runs with FindFiber Remote IDs |
Ringkasan Produk Fluke Networks MicroScanner2 MS2-FTK Copper/Fiber Basic Technicians Kit
Fluke Networks MS2-FTK Copper dan Fiber Basic Technician Kit - MicroScanner2 dan SimpliFiber Pro Fiber Test Kit. Fluke Networks MS2-FTK adalah kit teknisi dasar tembaga dan serat dengan alat uji verifikasi MicroScanner2 dan meteran daya optik SimpliFiber Pro memverifikasi pemasangan kabel jaringan untuk fungsionalitas dan pemasangan yang benar.30 produk lainnya dikategori yang sama:
-
