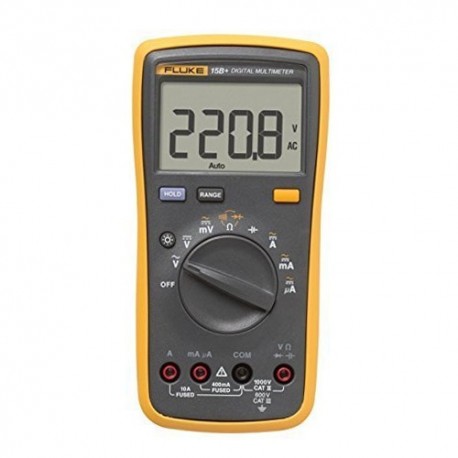

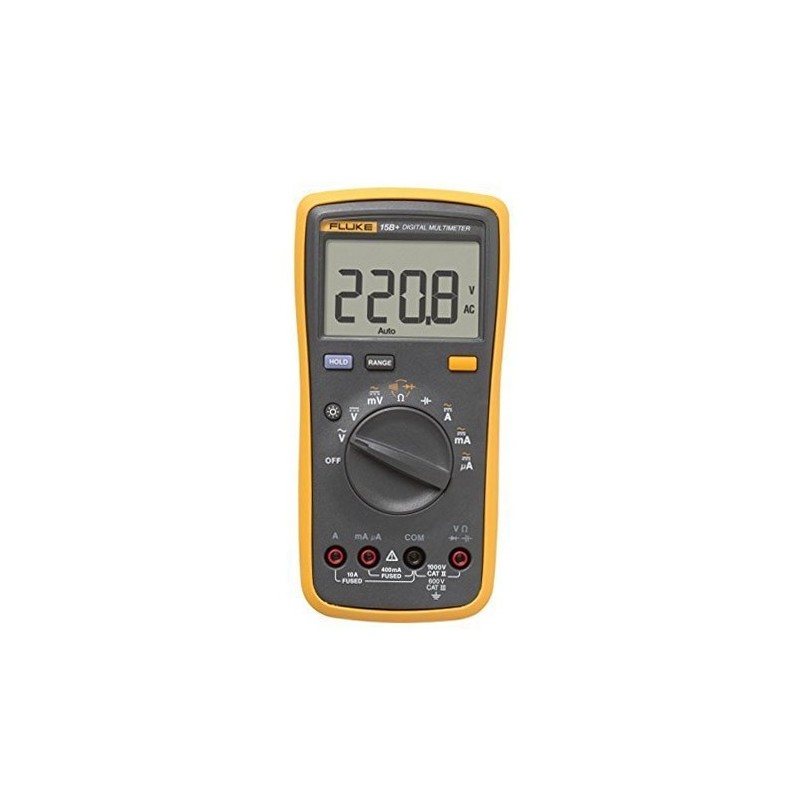

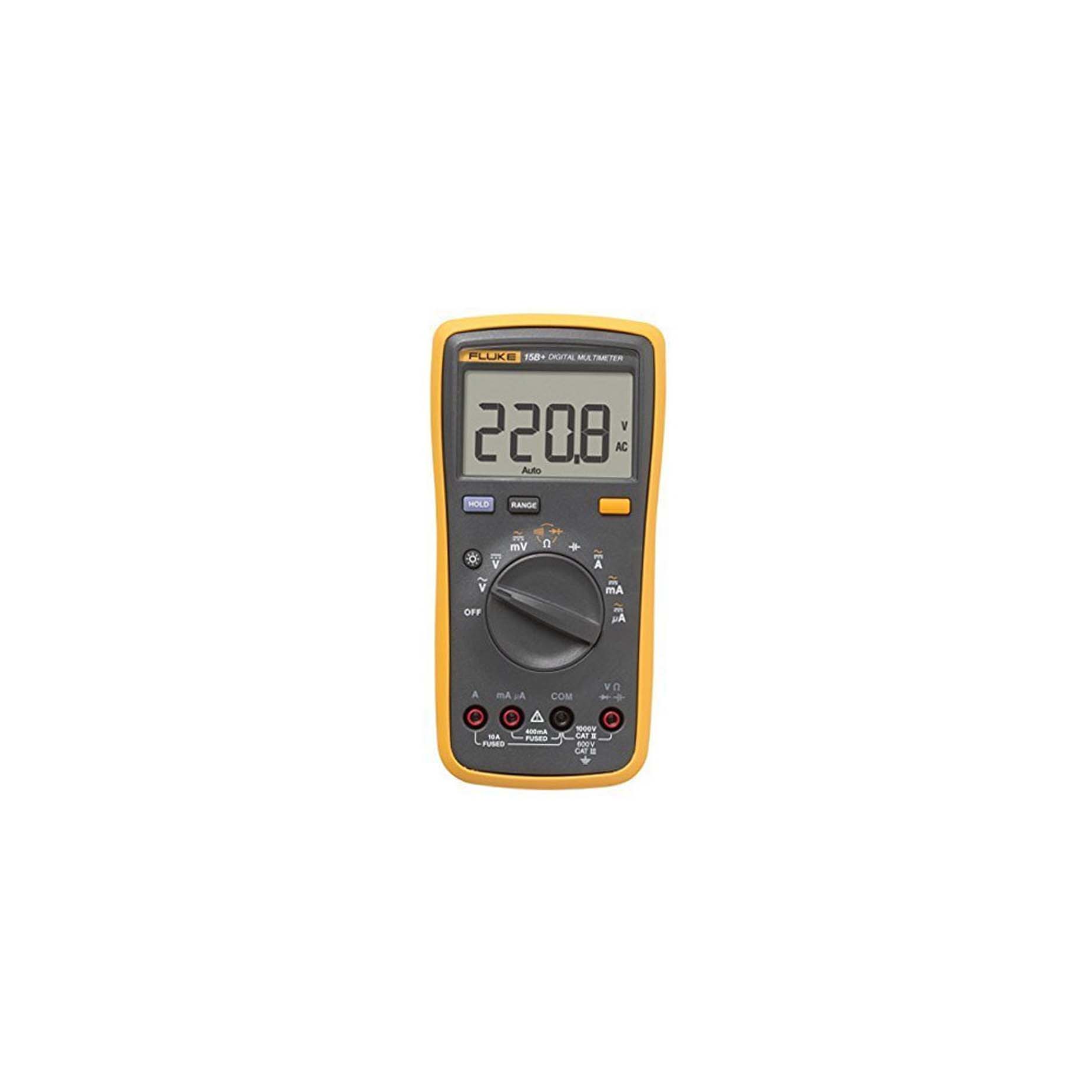

Fluke 15Bplus Digital Multimeter
Kode Produk: 15336
AI1218Produk baru
- 600 V Cat III safety rating
- 50% bigger display with bright white backlight
- Voltage, resistance, continuity, capacitance
Info lainnya
Spesifikasi Fluke 15Bplus Digital Multimeter
| Function | Range | Resolution | Accuracy |
| AC volts (40 Hz to 500Hz) |
4.000 V 40.00 V 400.0 V 1000 V |
0.001 V 0.01 V 0.1 V 1 V |
1.0% + 3 |
| DC volts | 4.000 V 40.00 V 400.0 V 1000 V |
0.001 V 0.01 V 0.1 V 1 V |
0.5% + 3 |
| AC millivolts | 400.0 mV | 0.1 mV | 3.0% + 3 |
| DC millivolts | 400.0 mV | 0.1 mV | 1.0% + 10 |
| Diode test | 2.000 V | 0.001 V | 10% |
| Resistance (Ohms) |
400.0 Ω 4.000 kΩ 40.00 kΩ 400.0 kΩ 4.000 MΩ 40.00 MΩ |
0.1 Ω 0.001 kΩ 0.01 kΩ 0.1 kΩ 0.001 MΩ 0.01 MΩ |
0.5% + 3 0.5% + 2 0.5% + 2 0.5% + 2 0.5% + 2 1.5% + 3 |
| Capacitance | 40.00 nF 400.0 nF 4.000 μF 40.00 μF 400.0 μF 1000 μF |
0.01 nF 0.1 nF 0.001 μF 0.01 μF 0.1 μF 1 μF |
2% + 5 2% + 5 5% + 5 5% + 5 5% + 5 5% + 5 |
| AC current μA (40 Hz to 400 Hz) |
400.0 μA 4000 μA |
0.1 μA 1 μA |
1.5% + 3 |
| AC current mA (40 Hz to 400 Hz) |
40.00 mA 400.0 mA |
0.01 mA 0.1 mA |
1.5% + 3 |
| AC current A (40 Hz to 400 Hz) |
4.000 A 10.00 A |
0.001 A 0.01 A |
1.5% + 3 |
| DC current μA | 400.0 μA 4000 μA |
0.1 μA 1 μA |
1.5% + 3 |
| DC current mA | 40.00 mA 400.0 mA |
0.01 mA 0.1 mA |
1.5% + 3 |
| DC current A | 4.000 A 10.00 A |
0.001 A 0.01 A |
1.5% + 3 |
| Backlight | Yes | ||
| Maximum voltage between any terminal and earth ground | 1000 V | ||
| Display (LCD) | 4000 counts, updates 3/sec | ||
| Battery type | 2 AA, NEDA 15A, IEC LR6 Battery life 500 hours minimum (50 hours in LED Test mode without load. The hours with load depends on the type of LED under test.) |
||
| Operating | 0 °C to 40 °C | ||
| Storage | -30 °C to 60 °C | ||
| Operating humidity | Non-condensing (<10°C) ≤90% RH at 10 °C to 30 °C; ≤75% RH at 30 °C to 40 °C |
||
| ≤80% RH at 10 °C to 30 °C; ≤70% RH at 30 °C to 40 °C |
|||
| Temperature coefficient | 0.1 X (specified accuracy) /°C (<18 °C or >28 °C) | ||
| Fuse protection for current inputs | 440 mA, 1000 V Fast Fuse, Fluke specified part only. 11A, 1000V Fast Fuse, Fluke specified part only. |
||
Berat dan ukuran Fluke 15Bplus Digital Multimeter
| Size (H x W x L) | 183 x 91 x 49.5 mm |
| Weight |
Ringkasan Produk Fluke 15Bplus Digital Multimeter
Kualitas Fluke selalu dalam jangkauan Anda Pekerjaan Anda mengharuskan Anda memiliki multimeter digital yang tangguh, andal, dan akurat. Fluke 15B + multimeter digital melakukan semua itu dan lebih banyak lagi. Mudah digunakan dengan satu tangan, bahkan dengan sarung tangan, Fluke 15B + menawarkan semua yang Anda butuhkan.Fitur utama
- Peringkat keamanan 600 V Cat III
- Layar 50% lebih besar dengan lampu latar putih terang
- Tegangan, resistansi, kontinuitas, kapasitansi
- Terminal input untuk pengukuran arus ac dan dc hingga arus 10 A
- Tes diode, tahan data
