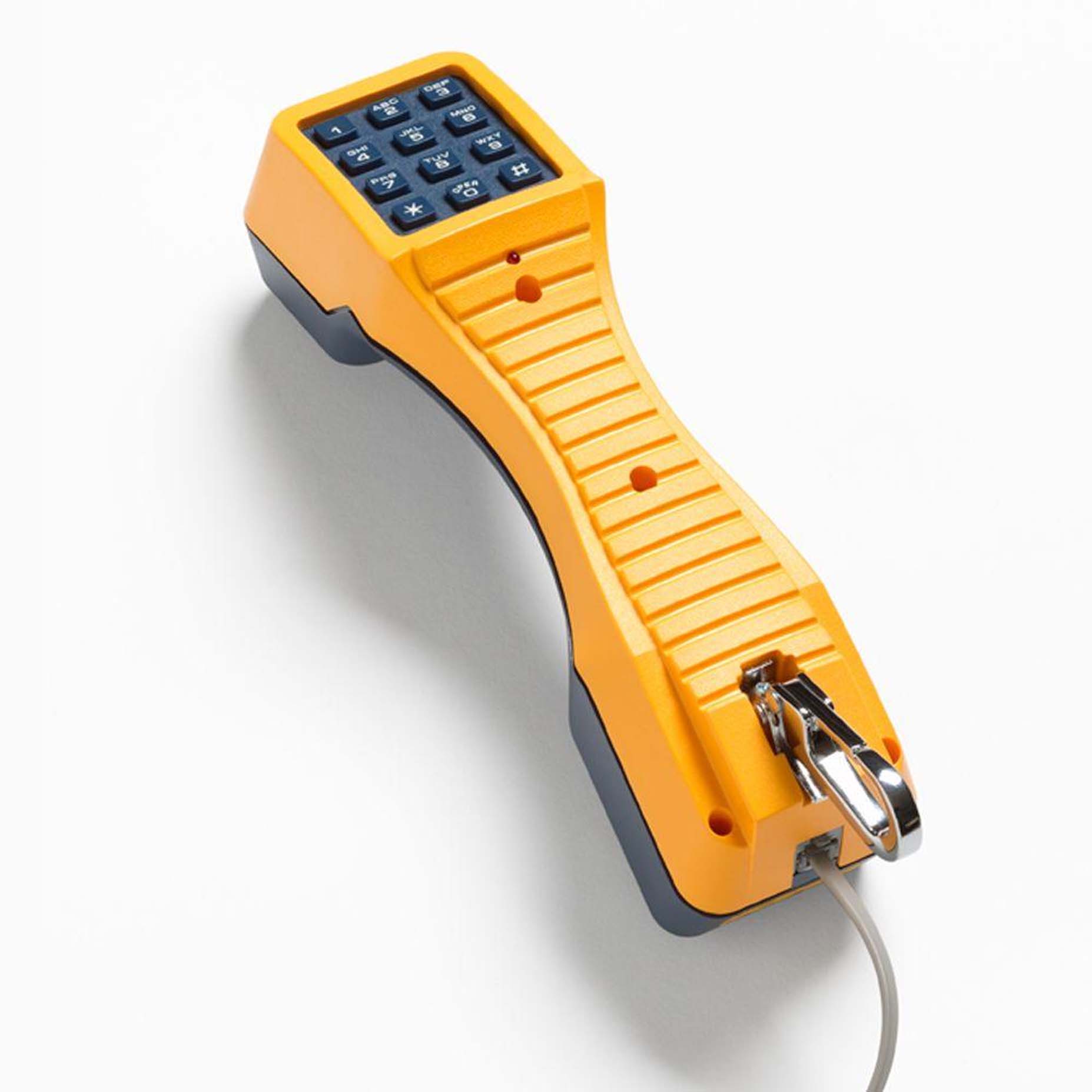

Fluke TS19 Test Sets
Kode Produk: 15353
AI1218Produk baru
Info lainnya
Spesifikasi Fluke TS19 Test Sets
| Loop Limit | 2.4 kΩmaximum at 48 VDC (nominal 15 mA minimum loopcurrent) |
| DC Resistance (Talk Mode) | 150 Ωtypical at 80 mA current |
| AC Impedance (Monitor Mode) | Low impedance (Ring position) 600 Ωat 1 KHz typical High impedance (HI Z position) 100 kΩminimum at 1 KHz |
| Rotary Dial Output | 10 pps .5 pps |
| Pulsing Rate | 60 % ± 2 % |
| Percent Break | 800 ms typical |
| Interdigit Interval Leakage During Break | > 50 kΩ |
| DTMF Output | ±1 % maximum |
| Tone Frequency Error Level per Tone Pair | dBm maximum, - dBm minimum |
| High versus Low Tone Difference | 4 dB maximum |
| Temperature | Operating: -5 °C to °C Storage: -40 °C to °C |
| Drop | 1 meter, 4 times |
| Altitude | To 3,000 meters (10,000 feet) maximum |
| Relative Humidity | 10 %to 80 % (non-condensing) |
| Regulatory Standards Used | 47 CFR Part 15, Subpart B ICES-003 Issue 3 AS/NZS 3548 EMC Directive 89/336/EEC, EN 55022:98, EN 61326:97, A1:98 Annex C, EN 61000-4-2, EN 61000-4-3 LV Directive 73/23/EEC, EN 610010.1 (1993) |
Berat dan ukuran Fluke TS19 Test Sets
| Physical | Length : (22.2 cm) Width : (6.03 cm) Height : (8.57 cm) |
| Weight | 10.8 oz (.307 kg) |
Ringkasan Produk Fluke TS19 Test Sets
The Fluke Networks TS19 Test Set menggabungkan semua fitur set tes penting dengan harga yang terjangkau. Set tes ini dirancang khusus untuk teknisi telekomunikasi in-house. Monitor impedansinya yang tinggi mencegah gangguan layanan yang tidak sengaja terpotong pada jalur data saat berada dalam mode monitor, sehingga memastikan integritas jalur data penting. Fitur seperti nada (DTMF) atau operasi pulsa, kemampuan bicara / monitor, tombol uji polaritas, dan panggilan ulang nomor terakhir membuat tes ini mengatur kombinasi sempurna antara fitur dan harga.30 produk lainnya dikategori yang sama:
-
