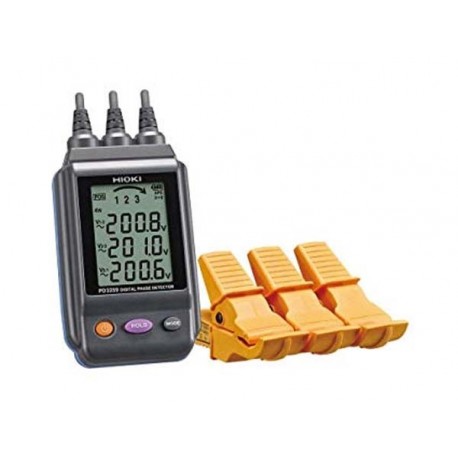

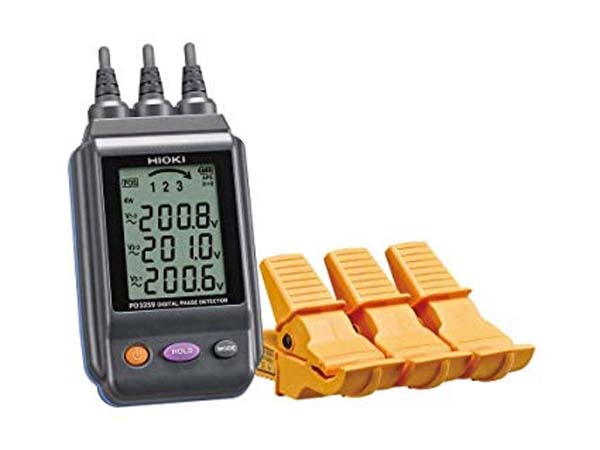

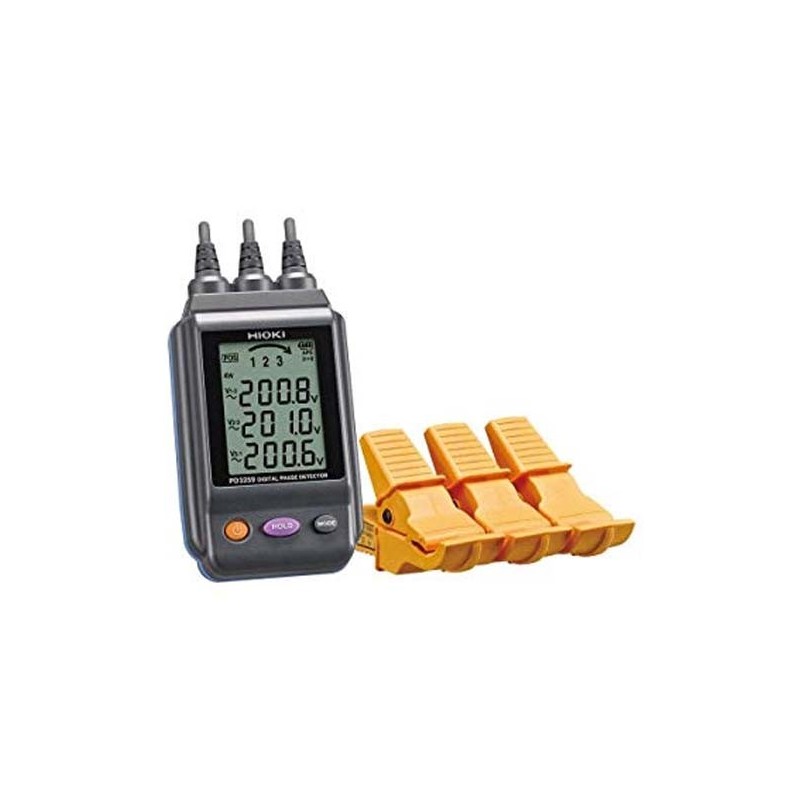

Hioki PD3259 Digital Phase Detector
Kode Produk: 15355
EV0119Produk baru
- Pendeteksian dan test tegangan tanpa kontak dengan logam pertama di dunia
- Cukup jepitkan pada insulasi kawat
- Pengecekan deteksi fasa dan inspeksi tegangan line-to-line secara bersamaan
- pengecekan deteksi fasa mudah dengan fasilitas lampu latar dan buzzer
- Ideal untuk bekerja di foto sertifikasi, memberikan fasilitas tampilan sequence fasa dan tegangan 3-fasa
Info lainnya
Spesifikasi Hioki PD3259 Digital Phase Detector
| Detection functions | Positive phase, negative phase (Three-phase 3-wire, Three-phase 4-wire), open phase, prediction of ground phase (Three-phase 3-wire) |
|---|---|
| Measurement parameters | Three-phase AC voltage (line-to-line voltage and voltage to ground), Frequency • Voltage measurement accuracy: ±2.0% rdg. ±8 dgt., • Frequency measurement accuracy: ±0.5% rdg. ±1 dgt., • Response time: 3 s or less, Display update rate: 500 ms |
| Measurement targets | Covered cables, Metal portions *Use on shielded cables not supported Three-phase 90.0 to 520.0 V AC (45 to 66 Hz) |
| Diameter of measurable conductors | Finished outer diameter: 6 to 30 mm (0.24 to 1.18 in) |
| Maximum rated voltage to earth | 600 V AC (CAT IV) |
| Environmental protection | Main unit (excluding voltage sensors): IP54 (EN60529) dustproof and waterproof |
| Other functions | Hold function, Backlight, Buzzer, Auto power-off, Low battery warning, Drop proof (on concrete, 1 m/ 1 time) |
| Power supply | AA alkaline batteries (LR6) ×4, Maximum rated power: 3 VA, Continuous operating time: 5 hours (Backlight off, standby state) |
| Dimensions and mass | 84 mm (3.31 in)W × 146 mm (5.75 in)H × 46 mm (1.81 in)D, 590 g (20.8 oz, including batteries), cord length: 0.5 m (1.64 ft) |
| Accessories | AA alkaline batteries (LR6) ×4, Instruction manual ×1, Carrying case C0203 ×1, Spiral tubes (black, red, yellow blue) ×1 set |
