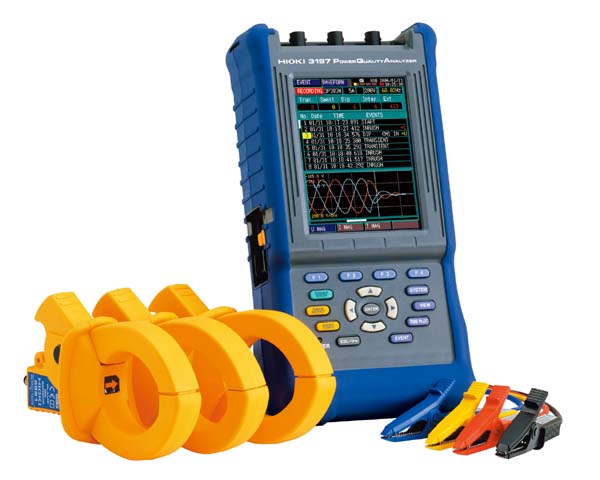

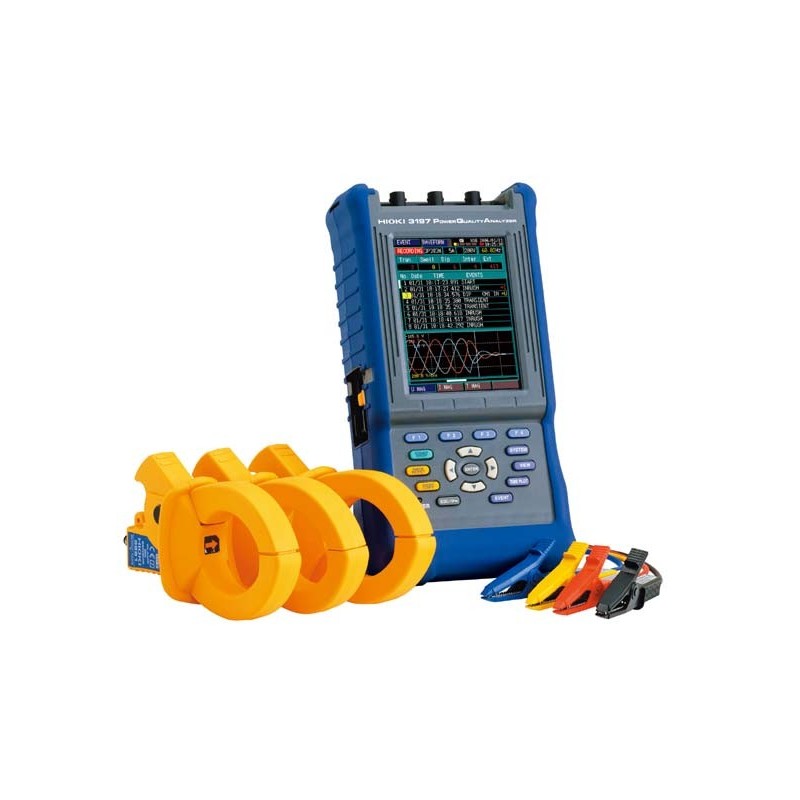

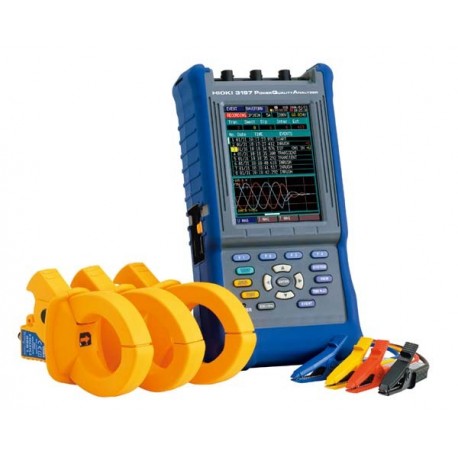

Hioki 3197 Power Quality Analyzer
Kode Produk: 15360
EV0119Produk baru
Info lainnya
Spesifikasi Hioki 3197 Power Quality Analyzer
| Measurement lines | Single-phase/two-wires, Single-phase/three-wires, Three-phase/three-wires, Three-phase/four-wires | |
| Measurement line frequency | Auto-detect (50 Hz / 60 Hz) | |
| Voltage Range | 600.0V AC | |
| Current Ranges | Manually switchable from range sets depending on clamp sensor 500.0mA, 5.000A, 50.00A, 10.00A, 100.0A, 1.000kA, 5.000kA | |
| Measurement items | Impulsive voltage quality: | Transient overvoltage (Impulse) |
| RMS voltage quality: | Voltage swell, Voltage dips, Voltage interruption | |
| Power quality: | Frequency, Voltage, Current, Current peak, Active / Reactive / Apparent power, Power factor (displaced power factor) | |
| Three phase quality: | Voltage unbalance ratio, Current unbalance ratio | |
| Harmonic quality (Up to 50th order): | Harmonic voltage, Harmonic current, Harmonic power, Harmonic voltage/current phase angle, Total harmonic voltage distortion, Total harmonic current distortion (THD-F, THD-R) | |
| Interval Settings | AUTO / 1 / 5 / 10 / 15 / 30 / 60 minutes | |
| Maximum record-able period | 125 Days with internal non-volatile memory of 4MB-stored data will not be deleted upon power OFF; partition memory into 4 segments for maximum 31 days of recording each | |
| Internal Memory | 4 MB | |
| PC Interface | USB Ver. 2.0 | |
