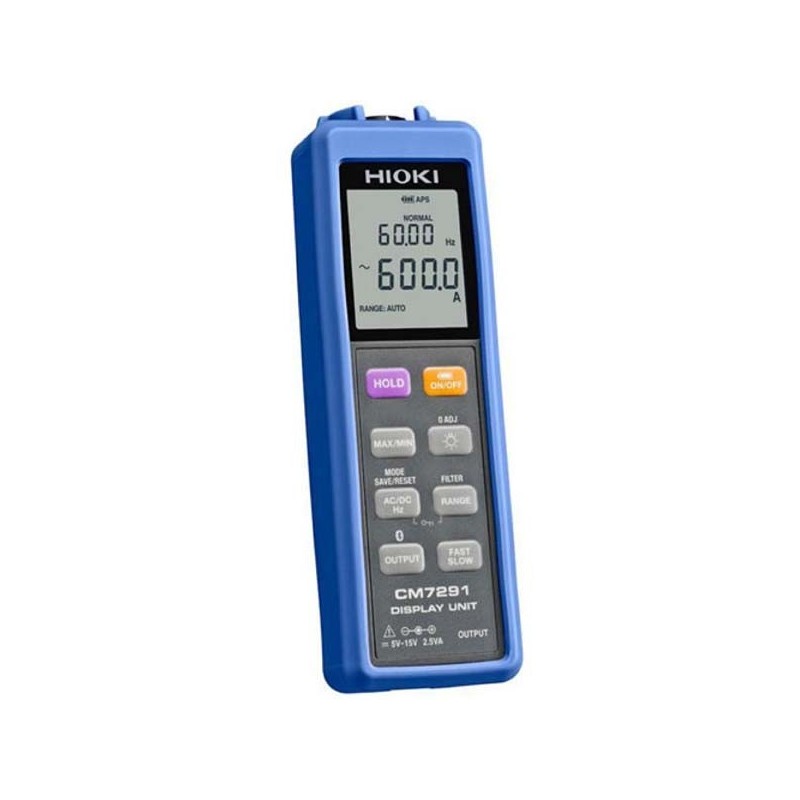

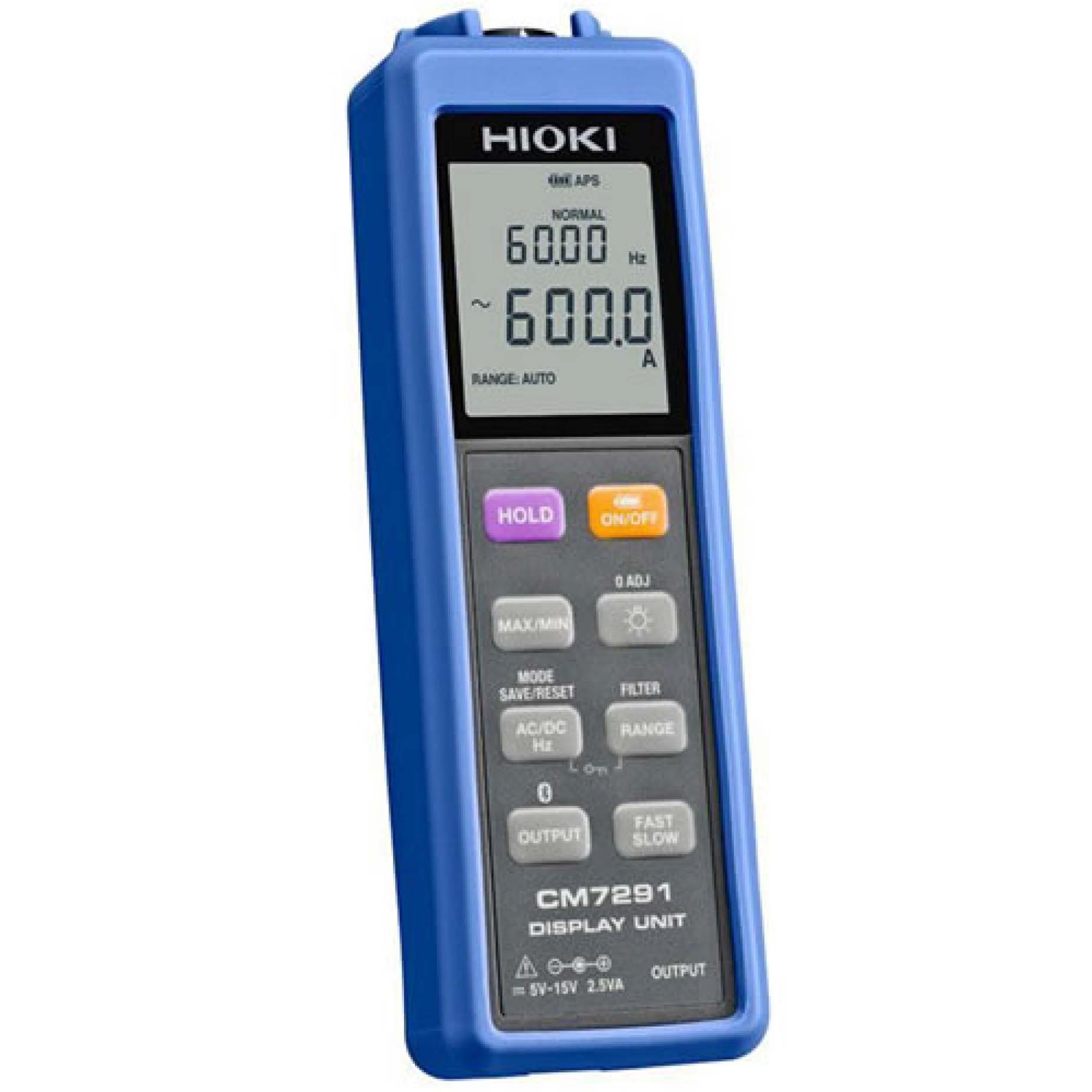

Hioki CM7291 Wireless Display Unit with Bluetooth for AC/DC Current Sensors
Kode Produk: 15370
EV0119Produk baru
Info lainnya
Spesifikasi Hioki CM7291 Wireless Display Unit with Bluetooth for AC/DC Current Sensors
| Sensor | CT7642, 7742 | CT7636, 7736 | CT7631, 7731 |
|---|---|---|---|
| Measurement parameters | DC, AC, DC+AC, Hz | ||
| Crest factor | 3 at 5000 count or 2.5 at 6000 count for AC and DC+AC | ||
| Output method | WAVE, RMS, PEAK, FREQ | ||
| Input connectors | HIOKI PL 14 | ||
| Output update time | PEAK--- FAST: 0.02 s / NORMAL: 0.2 s / SLOW: 1 s FREQ--- FAST: FAST: 0.2 s / NORMAL: 0.2 s / SLOW: 3.0 s (WAVE, RMS: analog output) |
||
| PEAK sensing duration | 2 ms or greater (during PEAK MAX/PEAK MIN and PEAK output) |
||
| Other functions | Auto range, Zero adjustment at power-up, Analysis display, Filter, Output amplification, Display value hold, Backlight , Auto-power save, Save settings, keypad lock | ||
| Typical accuracy (WAVE output DC) | ±2.0% rdg. ±10.8 mV (60.00 A range) |
±2.5% rdg. ±30.8 mV (60.00 A range) |
±1.5% rdg. ±5.8 mV (60.00 A range) |
| Typical accuracy (RMS output AC) | ±2.3% rdg. ±10.8 mV (60.00 A range) |
±2.8% rdg. ±30.8 mV (60.00 A range) |
±1.8% rdg. ±5.8 mV (60.00 A range) |
| Communication interface | Built in Bluetooth® 4.0 LE, Display of measured values on an iOS or Android handset using Bluetooth® communications (CM7291 only) | ||
| Power supply | LR6 alkaline batteries (AA) ×2, Continuous use: 16 h (backlight OFF and WAVE or RMS output, when used with CT7600s), Rated power 2.5 VA or AC adapter 9445-02/03 (100 to 240V AC), or 5 to 15 V DC external power supply, Rated power 2.5 VA |
||
| Dimensions and mass | 52 mm (2.05 in)W × 163 mm (6.42 in)H × 37 mm (1.46 in)D, 220 g (7.8 oz) (including protector and battery) | ||
| Accessories | LR6 alkaline batteries ×2, Protector ×1, Instruction manual ×1 | ||
