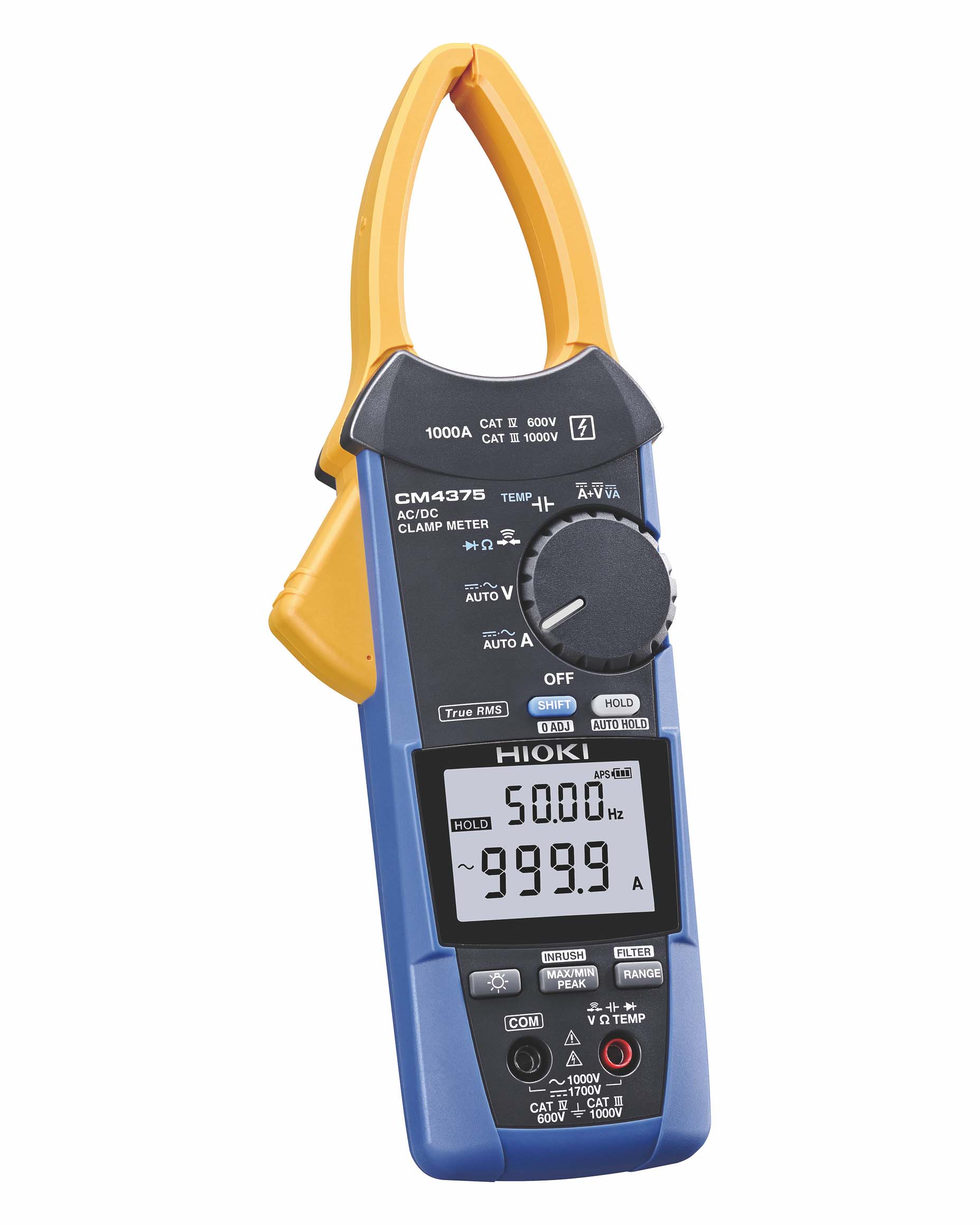

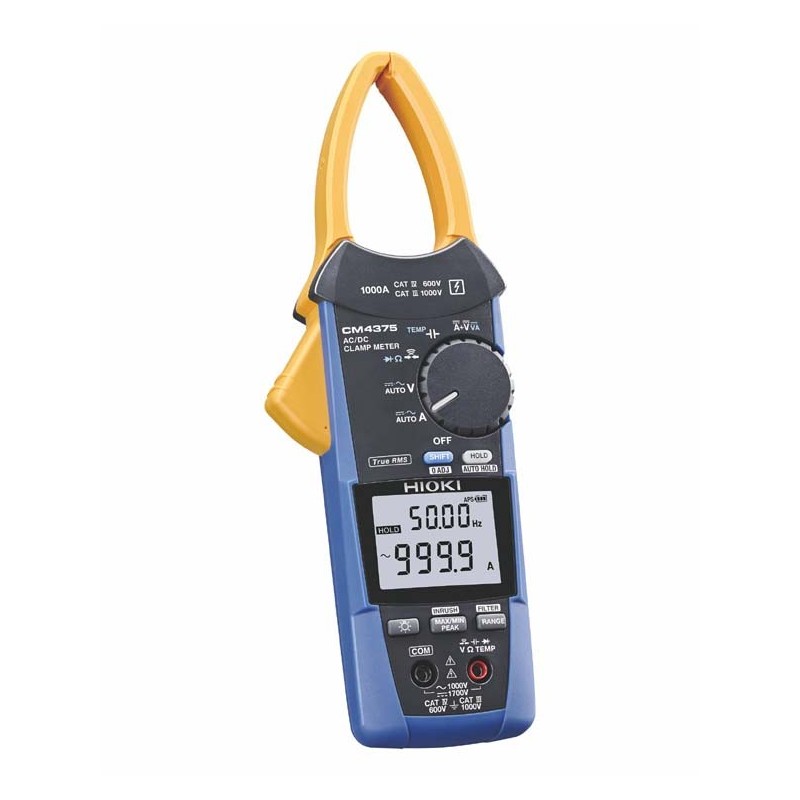

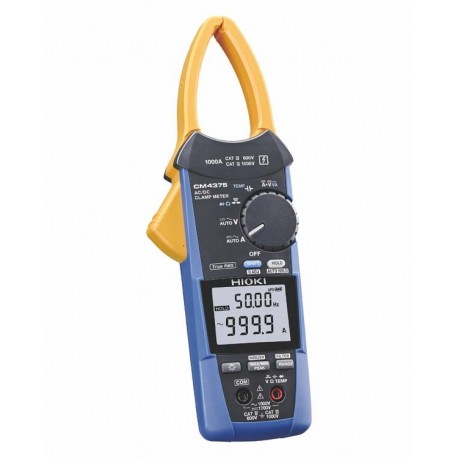

Hioki CM4375 AC/DC Clamp Meter
Kode Produk: 15373
EV0119Produk baru
Info lainnya
Spesifikasi Hioki CM4375 AC/DC Clamp Meter
| DC Current range | 1000 A, (Max. display 999.9 A) , Basic accuracy: ±1.3% rdg. ±0.3 A (at 30.1 A - 999.9 A) |
|---|---|
| AC Current range | 1000 A (Max. display 999.9 A, 10 Hz to 1 kHz, True RMS), Basic accuracy 45-66 Hz: ±1.3% rdg. ±0.3 A (at 30.1 A - 900.0 A) |
| Crest factor | 1.5 |
| DC+AC Current range | 1000 A (DC, 10 Hz to 1 kHz, True RMS), Basic accuracy DC, 45-66 Hz: ±1.3% rdg. ±1.3 A (at 30.1 A - 900.0 A) |
| DC Power range | 0.0 VA to 1700 kVA (Automatically switched based on voltage range), Basic accuracy: ±2.0% rdg. ±20 dgt. |
| DC Voltage range | 600.0 mV to 1500 V, 5 ranges, Basic accuracy: ±0.5% rdg. ±0.5 mV (at 600 mV) |
| AC Voltage range | 6.000 V to 1000 V, 4 ranges (15 Hz to 1 kHz, True RMS), Basic accuracy: ±0.9% rdg. 0.003 V (at 6 V) |
| DC+AC Voltage range | 6.000 V to 1000 V, 4 ranges, Basic accuracy: DC, 45-66 Hz: ±1.0% rdg. ±0.023 V (at 6 V) |
| Resistance range | 600.0 Ω to 600.0 kΩ, 4 ranges, Basic accuracy: ±0.7% rdg. ±5 dgt. |
| Electrostatic capacity range | 1.000 μF to 1000 μF, 4 ranges, Basic accuracy: ±1.9% rdg. ±5 dgt. |
| Frequency range | 9.999 Hz to 999.9 Hz, Basic accuracy: ±0.1% rdg. ±1 dgt. |
| Temperature (K) | -40.0 to 400.0 ˚C, add temperature probe accuracy to basic accuracy of ±0.5% rdg. ±3.0 ˚C |
| Other functions | Automatic AC/ DC detection, DC current and DC voltage polarity detection function, MAX/ MIN/ AVG/ PEAK MAX/ PEAK MIN value display, Low-pass filter function, Display value hold, Auto hold, Backlight, Auto power save, Buzzer sound, Zero-adjustment |
| Dustproof, waterproof | IP20 (Measurement of voltage or current of a hazardous live conductor under completely dry conditions) IP50 (Measurement of resistance under completely dry conditions) IP54 (Storage or measurement of current of an insulated conductor) |
| Interface | N/A |
| Power supply | LR03 Alkaline battery ×2, Continuous use: 40 hr (Backlight OFF) |
| Core jaw diameter | φ34 mm (1.34 in) |
| Smallest dimension of jaw cross-section | 9.5 mm (0.37 in) |
| Dimensions and mass | 65 mm (2.56 in) W × 242 mm (9.53 in) H × 35 mm (1.38 in) D mm, 330 g (11.6 oz) |
| Accessories | TEST LEAD L9207-10, CARRYING CASE C0203, LR03 Alkaline battery ×2, Instruction Manual ×1, Precautions Concerning Use of Equipment that Emits Radio Waves ×1 |
