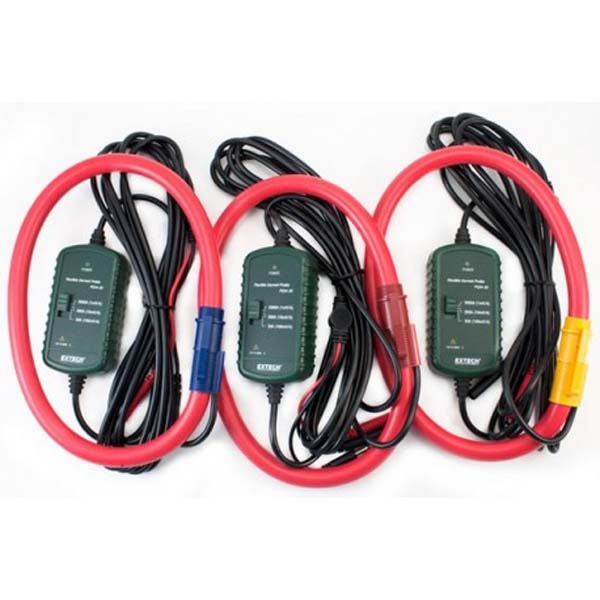

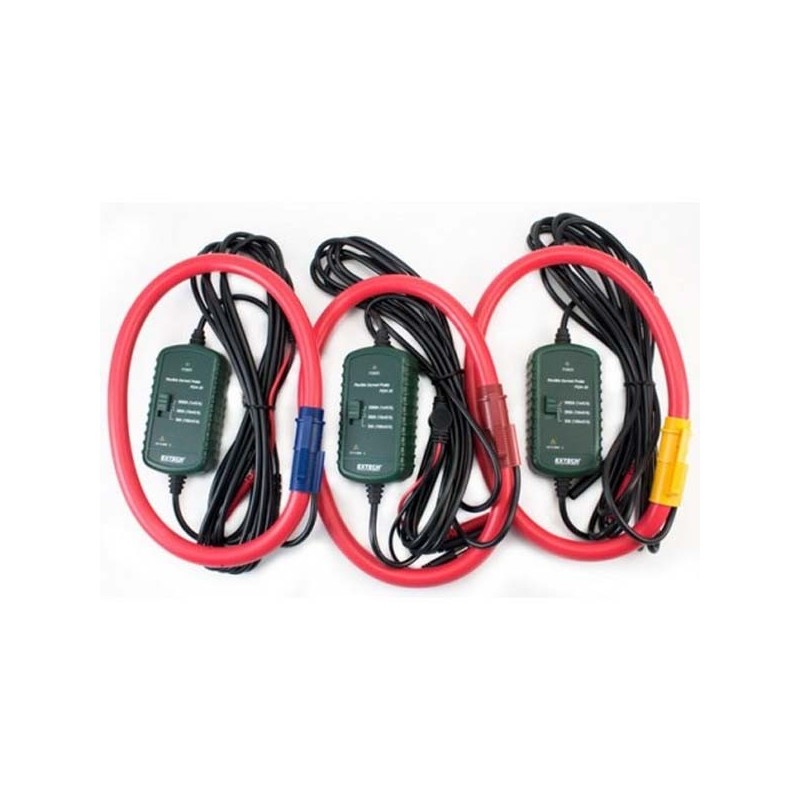

Extech PQ34-30 3000A Current Flexible Clamp Probe
Kode Produk: 15565
EV0219Produk baru
Info lainnya
Spesifikasi Extech PQ34-30 3000A Current Flexible Clamp Probe
| Measurement ranges | 30A, 300A and 3000A, switch selectable |
| Output sensitivity | 100mV/A on the 30A range |
| 10mV/A on the 300A range | |
| 1mV/A on the 3000A range | |
| Output coupling | AC coupled. |
| Accuracy (50/60Hz) | ± 1% F.S. @ 23 ± 5°C (50/60Hz) |
| Frequency range | 45 to 400 Hz. |
| Max conductor size | Round: (177mm (7"), Oval: 216mm (8.5") |
| Phase error (50/60Hz) | < ± 1° |
| Minimum load | 100 K ohm for specified accuracy |
| Linearity | ±0.2% of reading from 10% to 100% of range |
| Phase error | <±1.5° (50/60Hz) |
| Conductor position sensitivity | ± 2% F.S (conductor should be >25mm (1") from the probe latch). |
| Enclosure material | UL 94-V0 rated |
| Safety | IEC 1010, Category III 600V |
| Power Supply | 8V± 1V (supplied from meter) |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Operating Humidity | Less than 80% RH |
| Dimension | |
| Circuit box: | 105 x 56.5 x 33 mm. (4.1 X 2.2 X 1.3") |
| Flexible probe: | 600mm (23.6") (length), 14.5mm 0.57" (diameter) |
| Cable length : | 3.4 meters (11.2 feet) |
| DC plug size : | 5.5 mm x 2.5 mm DIA. |
| Weight | 480 g (1.06 LB) |
Ringkasan Produk Extech PQ34-30 3000A Current Flexible Clamp Probe
PQ34-30 adalah seperangkat probe arus fleksibel 3000-Amp untuk analisis kualitas daya PQ3450 / PQ3470. 24 in. (600 mm) untuk melilit bar bus dan bundel kawat. Beralih di antara 3 rentang; 3000-amp, 300-amp, 30-amp.30 produk lainnya dikategori yang sama:
-
