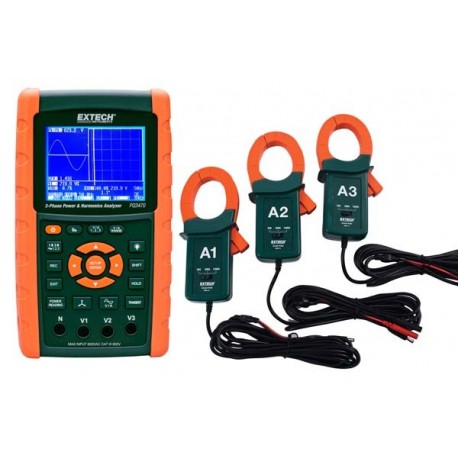

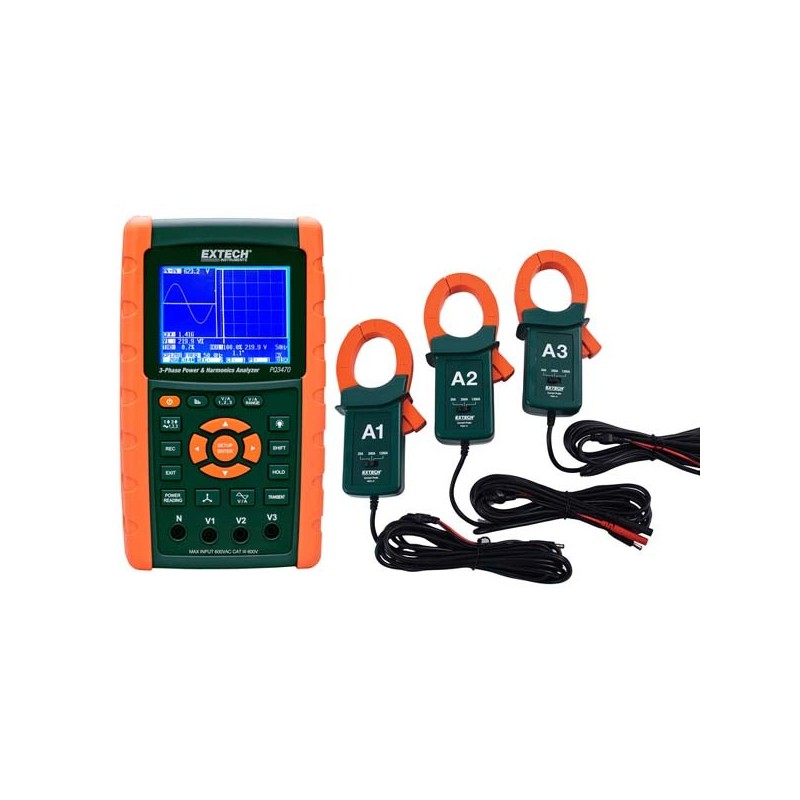

Extech PQ3470-12 1200A Power Analyzer Kit PQ3470 with PQ34-12
Kode Produk: 15569
EV0319Produk baru
Info lainnya
Spesifikasi Extech PQ3470-12 1200A Power Analyzer Kit PQ3470 with PQ34-12
| Specifications | Range | Basic Accuracy |
|---|---|---|
| AC Voltage (True rms) | 600.0V | ±(0.5%rdg) |
| AC Current | 3000A | ±(0.5%rdg) |
| Active Power (MW) | 9.999MW | ±(1.0%rdg) |
| Apparent Power (MVA) | 9.999MVA | ±(1.0%rdg) |
| Reactive Power (MVAR) | 9.999MVAR | ±(1.0%rdg) |
| Power Factor | 0.00 to 1.00 | ±0.04 |
| Frequency Range | 45Hz to 65Hz | ±0.1Hz |
| Phase | -180° to +180.0° | ±1° |
| Harmonics | 1 to 50th | ±2% (1 to 20); ±4% (21 to 31) |
| Crest Factor | 1.00 to 99.99 | ±(5%) |
| Current Clamp input | 200mV, 300mV, 500mV | ±(0.5%rdg) |
| 1V, 2V, 3V; user-selectable | ||
| Peak AC Voltage Accuracy | ±(5%) | |
| Peak AC Current Accuracy | ±(5%) | |
| Active Power Energy (MWH) | 0.0kWh to 9.999MWH | ±(2.0%rdg) |
| Apparent Power Energy (MVAH) | 0.0KVAh to 9.999MVAH | ±(2.0%rdg) |
| Reactive Power Energy (MVARH) | 0.0kVARh to 9.999MVARH | ±(2.0%rdg) |
| Datalogging | 30,000 readings (2GB SD memory Card) | |
Berat dan ukuran Extech PQ3470-12 1200A Power Analyzer Kit PQ3470 with PQ34-12
| Dimensions/Weight | 8.86 x 4.92 x 2.52" (225 x 125 x 64mm) / 2.2lbs (1010g) |
Ringkasan Produk Extech PQ3470-12 1200A Power Analyzer Kit PQ3470 with PQ34-12
PQ3470 adalah kekuatan grafis 3-fase dan penganalisis harmonisa / data logger yang mampu mencatat hingga 30.000 set pengukuran pada kartu memori SD yang dapat dilepas. Meter ini memiliki tegangan 3 fase atau rasio tidak seimbang saat ini (VUR, AUR) dan faktor tidak seimbang, menangkap peristiwa transien (termasuk penurunan, pembengkakan, dan pemadaman) dengan ambang batas yang dapat diprogram (%), rentang laju pengambilan sampel yang lebar (2 detik hingga 2) jam), jam / kalender bawaan. Lengkap dengan 4 lead voltase dengan klip buaya, 8 baterai AA, kartu SD, adaptor AC 100-240V, tiga probe dan case 1200A saat ini.30 produk lainnya dikategori yang sama:
-
