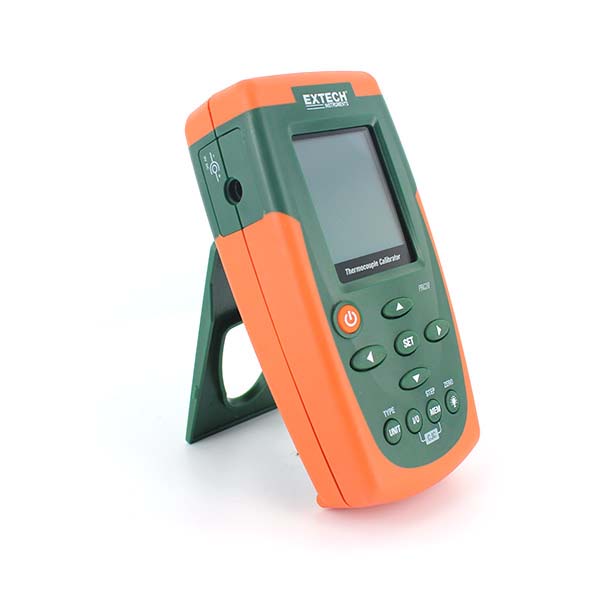

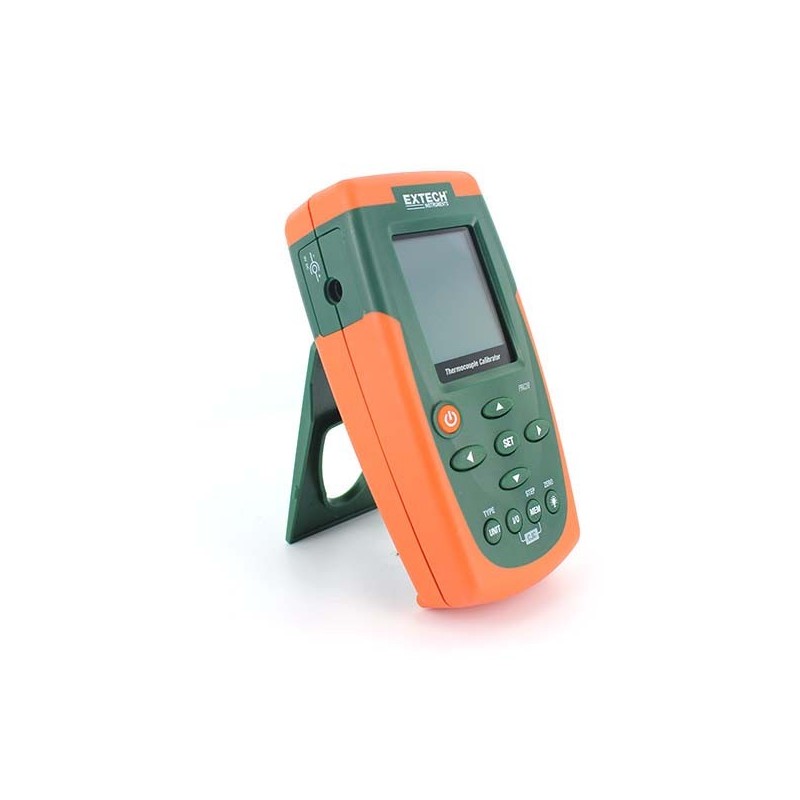

Extech PRC20 Thermocouple Calibrator
Kode Produk: 15572
EV0319Produk baru
Info lainnya
Spesifikasi Extech PRC20 Thermocouple Calibrator
| Specifications | Range | Basic Accuracy | |
|---|---|---|---|
| Thermocouple | |||
| Type J | -58 to 1832°F | (-50 to 1000°C) | 0.05% rdg ±1° |
| Type K | -58 to 2498°F | (-50 to 1370°C) | 0.05% rdg ±1° |
| Type T | -184 to 752°F | (-120 to 400°C) | 0.05% rdg ±1° |
| Type E | -58 to 1382°F | (-50 to 750°C) | 0.05% rdg ±1° |
| Type C | 32 to 3182°F | (0 to 1750°C) | 0.05% rdg ±1° |
| Type R/S | 32 to 3182°F | (0 to 1750°C) | 0.05% rdg ±1° |
| Type N | -58 to 2372°F | (-50 to 1300°C) | 0.05% rdg ±1° |
| Voltage | -10.00mV to +60.00mV | 10μV | 10μV ±1d |
| Resolution | 0.1° (up to 999.9) or 1° (over 999.9°) for J, K, T, E ; 1° for R, N; 0.5° for C, S | ||
| Input Impedance | 10 MΩ | ||
| Sampling Time | 4 times/second | ||
Berat dan ukuran Extech PRC20 Thermocouple Calibrator
| Dimensions | 6.3" x 3.2" x 1.7" (159 x 80 x 44mm) | ||
| Weight | 8oz (225g) | ||
Ringkasan Produk Extech PRC20 Thermocouple Calibrator
Sumber PRC20 dan mengukur delapan perangkat tipe termokopel (J, K, T, E, C, R, S dan N) dan memberikan output presisi yang ditampilkan sebagai Celcius / Fahrenheit atau mV. Ini memiliki lima preset kalibrasi yang dapat disesuaikan pengguna dan kisaran suhu Tipe K -58 hingga 2498 derajat F (-50 hingga 1370 derajat C). PRC20 cocok untuk kalibrasi Laboratorium dan lapangan, penelitian dan desain Rekayasa, Pabrikasi dan pengujian, pemecahan masalah proses kontrol suhu dan aplikasi HVAC. Dilengkapi dengan kabel kalibrasi termokopel dengan konektor subminiatur, kabel kalibrasi standar dengan konektor subminiatur, adaptor universal AC 100V-240V dengan empat colokan, enam baterai AA 1,5 volt, hard case, dan buku petunjuk.30 produk lainnya dikategori yang sama:
-
