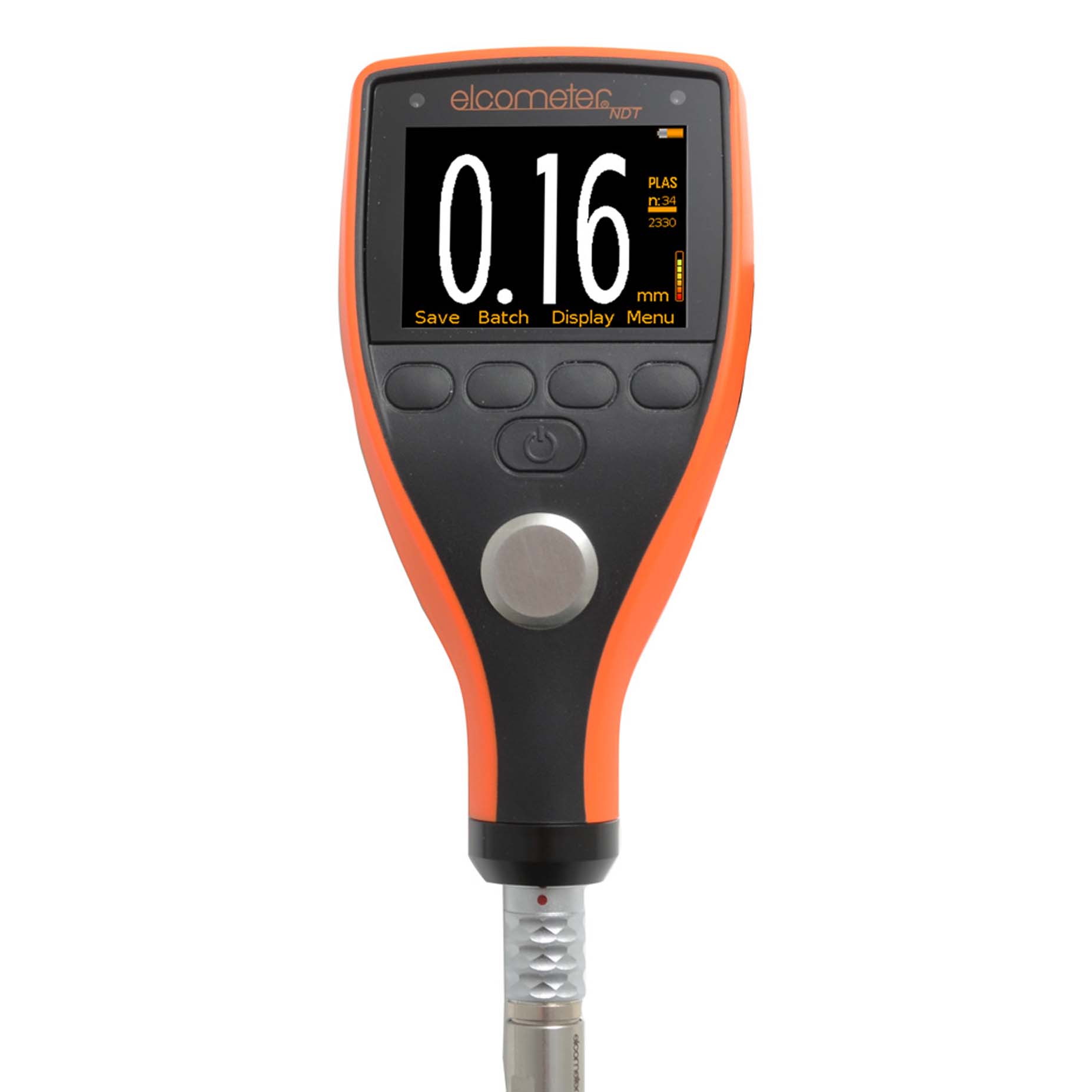

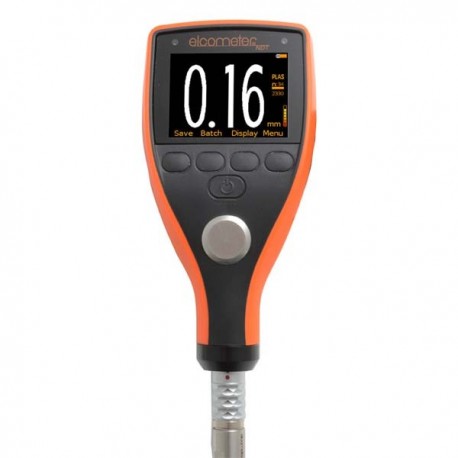

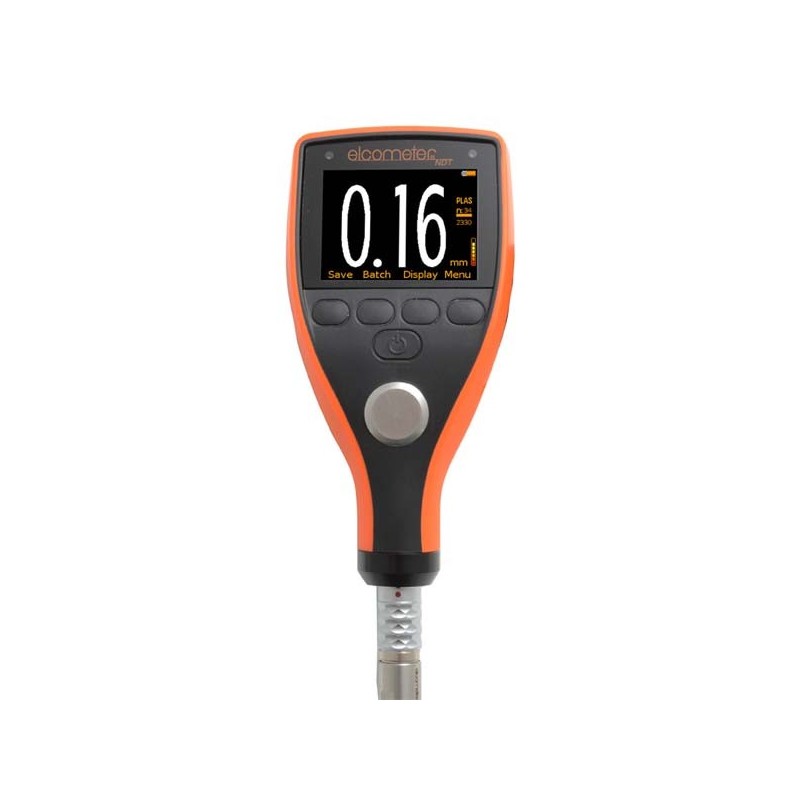

Elcometer PTG6-TXC Certified Precision Thickness Gauge c/w Transducer

Part Number (with Transducer)¹

PTG6-TXC

Part Number (gauge only)

PTG6

Easy to use menu structure in multiple languages

■

Tough, impact, waterproof and dust resistant equivalent to IP54

■

Bright colour screen with permanent backlight

■

Ambient light sensor, with adjustable brightness

■

Scratch and solvent resistant display; 2.4" (6cm) TFT

■

Large positive feedback buttons

■

USB power supply via PC

■

Gauge software updates² via ElcoMaster^® Software

■

2 year gauge warranty³

■

Measurement Mode

Echo-Echo (E-E)

■

Interface Echo (I-E)

■

Plastic Mode (PLAS)

■

Measurement Rate

4, 8, 16Hz⁴

Thickness Range⁵

E-E 0.15 - 10.15mm (0.006-0.400")

■

I-E 1.65 - 25.40mm (0.065-1.000")

■

PLAS 0.15 - 5.00mm (0.006-0.197")

■

Measurement Accuracy⁶

±1% or ±0.015mm (0.0006")

Measurement Units

mm or inches

Repeatability / Stability Indicator

■

Display Mode: Reading

■

Selectable Reading Resolution

Lo; ie 0.1mm, 0.01 Inch, 10m/s, or 0.001 in/μs

■

Hi; i.e. 0.01mm, 0.001 Inch, 1m/s, or 0.0001 in/μs

■

Calibration Options

1 - point

■

2 - point

■

Material selection; 39 preset materials

■

Factory; resets to the factory calibration

■

Velocity (speed of sound)

■

Calibration Features

Calibration lock: with optional PIN Lock

■

Test calibration feature

■

Data Output

USB; to PC

■

ElcoMaster^® software

■

Transducer Probe Type

Single element

Auto transducer recognition

■

Battery Type⁷

2 x AA

Battery Life⁷

Alkaline: 15 hours
Lithium: 28 hours

Operating Temperature

-10 to 50°C (14 to 122°F)

Size (w x h x d)

145x73x37mm (5.7x2.84x1.46")

Weight (including batteries)

210g (7.4oz)

Packing List

Elcometer PTG6, 15MHz 1/4" Microdot right angle single element transducer, couplant, wrist harness, 3 x screen protector, protective case, plastic transit case, 2 x AA batteries, calibration certificate, two year warranty extension card, operating instructions
