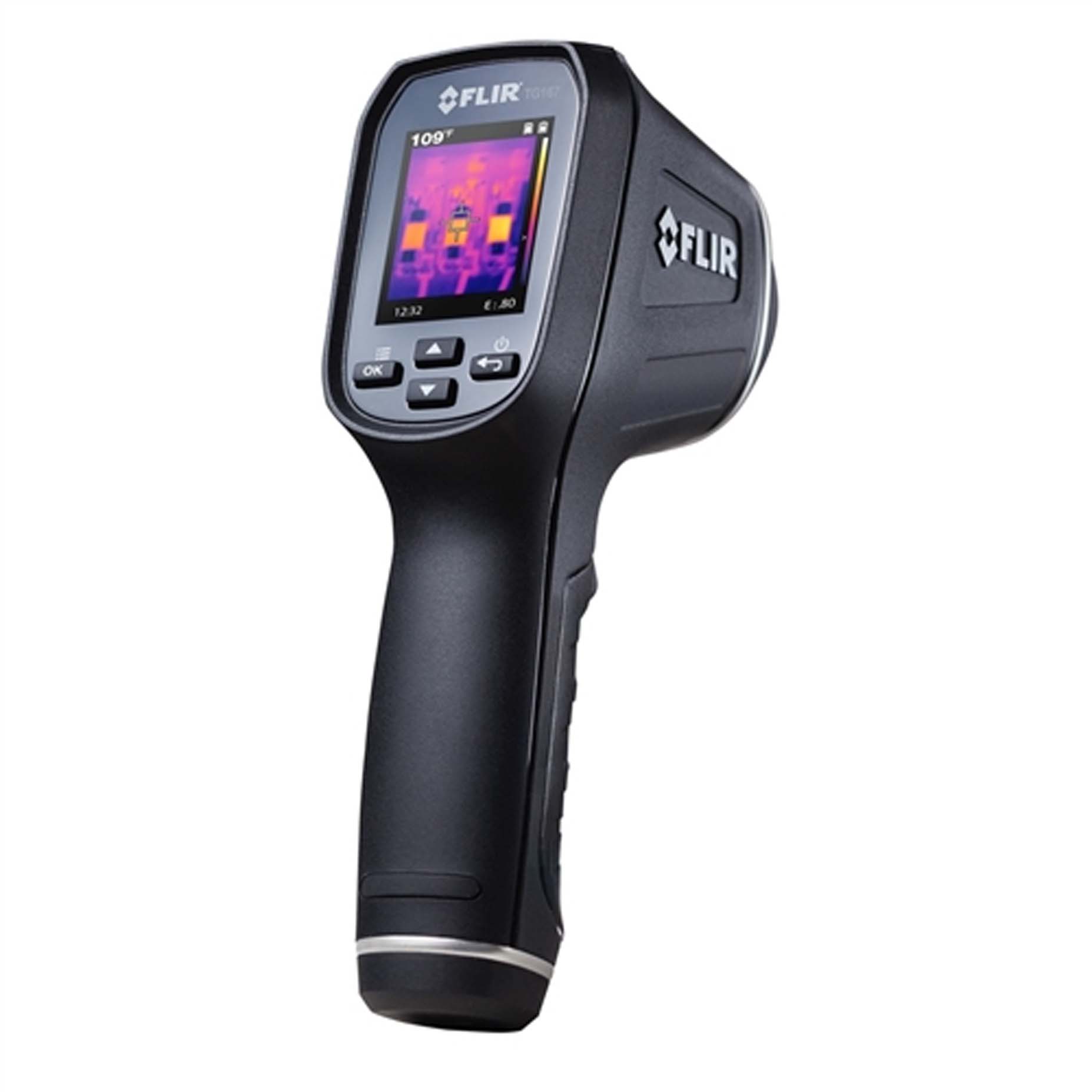

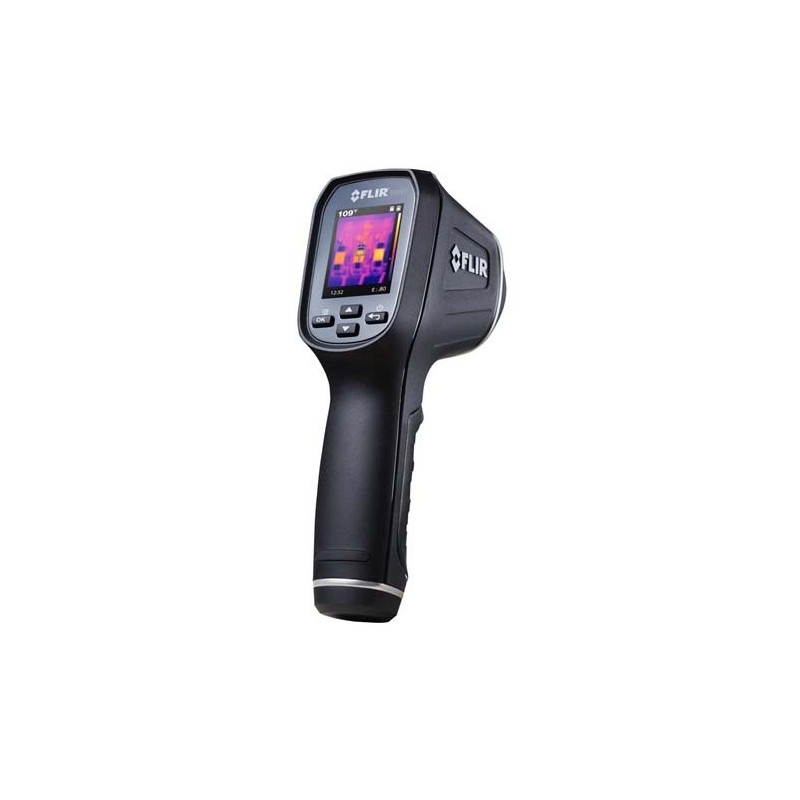

Flir TG167 Spot Infrared Thermal Camera For Electrical
Kode Produk: 16147
AI0919Produk baru
- IR Sensor: 80 x 60
- Field of view: 25 - 19.6°C
- Image Frequency: 9 Hz
- Display: 2" TFT LCD
- Minimum measurement distance: 26 cm
- Laser
- Memory type: Micro SD
- Operating Time: >5 Hours
Info lainnya
Spesifikasi Flir TG167 Spot Infrared Thermal Camera For Electrical
| Accuracy | ±1.5% or 1.5°C (2.7°F) |
| Detector Type | Focal plane array (FPA), uncooled microbolometer |
| IR Resolution | 80 × 60 pixels |
| Laser | Dual diverging lasers indicate the temperature measurement area, activated by pulling the trigger |
| Memory Expansion | 32 GB SD card maximum |
| Memory Type | Micro SD card |
| Object Temperature Range | -25°C to 380°C (-13°F to 716°F) |
| Thermal Sensitivity/NETD | <150 mK |
| ENVIRONMENTAL | |
| Drop test | Designed for 2 m (6.6 ft) |
| Humidity (Operating and Storage) | 0-90% RH (0-37°C (32-98.6°F)), 0-65% RH (37-45°C (98.6-113°F)), 0-45% RH (45-55°C (113-131°F)) |
| Operating Temperature Range | -10°C to 45°C (14°F to 113°F) |
| Storage Temperature Range | Storage Temperature Range |
| Tripod Mounting | 1/4 in.-20 on handle bottom |
| IMAGING & OPTICAL | |
| Camera size (L x W x H) | 186 mm x 55 mm x 94 mm |
| Camera weight incl battery | 0.312 kg |
| Color palettes | Hot Iron, Rainbow, Grayscale |
| Field of view (FOV) | 25° x 19.6° |
| Focus | Focus free |
| Gallery | 8549 |
| Image Frequency | 9 Hz |
| Minimum Focus Distance | 0.1 m |
| Minimum Measurement Distance | 26 cm |
| Spectral Range | 8–14 µm |
| Display | 2.0 in. TFT LCD |
| Battery operating time | >5 hours of continuous scanning with lasers |
| Charging Time | 4 hours to 90%, 6 hours to 100% |
| Battery voltage | 3.7 V |
| Image Storage Capacity | 75 000 pictures with included 8 GB Micro SD card |
| Saved image format | Bitmap (BMP) image with temperature and emissivity |
Isi Paket Flir TG167 Spot Infrared Thermal Camera For Electrical
| Includes | Wrist strap lanyard, 8 GB Micro SD card, power supply with separate USB cable, printed documentation |
Ringkasan Produk Flir TG167 Spot Infrared Thermal Camera For Electrical
Kamera Thermal Spot FLIR TG167 menjembatani kesenjangan antara termometer inframerah spot tunggal dan kamera termal legendaris FLIR. Dilengkapi dengan sensor termal mikro Lepton® eksklusif FLIR, kamera ini memungkinkan Anda melihat panas sehingga Anda tahu persis ke mana harus menargetkan tempat pengukuran. Mudah menemukan titik panas dan dingin yang tidak terlihat untuk pemecahan masalah instan, dan menyimpan gambar dan data untuk ditampilkan kepada pelanggan dan dimasukkan dalam laporan.LIHAT RINCIAN KECIL DENGAN JELAS
Bidang pandang 25 ° memberikan kejelasan gambar pada detail kecil dari jarak yang lebih jauh, termasuk konektor dan kabel kecil.
INTUITIF UNTUK MENGOPERASIKAN
Menyimpan gambar dan data dengan mudah untuk dokumentasi, dan mengunduh gambar dengan cepat melalui USB atau melalui micro SD yang dapat dilepas.
DIATUR DAN DAPAT DIANDALKAN
Dirancang untuk lingkungan terberat, TG167 cukup tahan lama untuk menahan penurunan 2 meter untuk pekerjaan terberat Anda.
