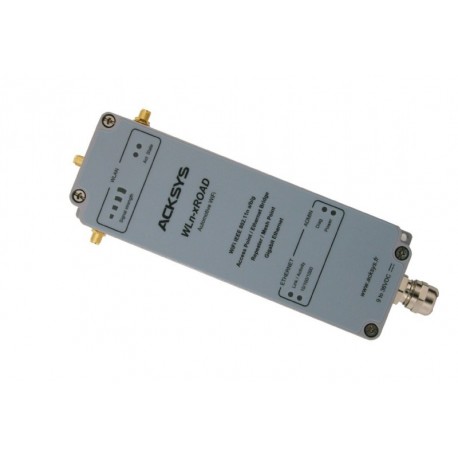

Acksys WLn-xROAD 11n Wireless Module Access Point

Kode Produk: 30571

Referensi AI0816/ET7/L10

Kondisi: Produk baru

Maximum speed : Up to 300 Mbps
Connection type : Terminal block (inside enclosure)
Connection cable : 2 meters cable with RJ45 connector & power wires
Ethernet link Gigabit : 10/100/1000 auto-sensing Ethernet port, plug & play mode & auto MDI/MDIX cross-over

Lebih detail

Kirim ke teman
Kirim ke teman
Acksys WLn-xROAD 11n Wireless Module Access Point

Maximum speed : Up to 300 Mbps

Connection type : Terminal block (inside enclosure)

Connection cable : 2 meters cable with RJ45 connector & power wires

Ethernet link Gigabit : 10/100/1000 auto-sensing Ethernet port, plug & play mode & auto MDI/MDIX cross-over
Penerima: :

Nama teman Anda ^* :

Alamat email teman Anda ^* :

^* Harus diisi

atau Batal
Bagikan di Facebook
Cetak

Info lainnya

Spesifikasi Acksys WLn-xROAD 11n Wireless Module Access Point

Functions	11n WiFi Access Point, Ethernet Bridge , Repeater and MESH Point for automotive and heavy duty applications
Format	IP66 aluminun enclosure, universal mounting
Maximum speed	Up to 300 Mbps
Connection type	Terminal block (inside enclosure)
Connection cable	2 meters cable with RJ45 connector & power wires
Ethernet link	Gigabit 10/100/1000 auto-sensing Ethernet port, plug & play mode & auto MDI/MDIX cross-over
Radio link	Compliant to the IEEE 802.11n a/b/g MIMO 3T3R, 2.4 / 5 / 5.4 GHz standards
Radio redudancy	Frequency range 2.4 / 5 / 5.4 GHz
High power RF card option
Radio Modem (AD HOC) mode	Yes, Bridge mode
Rapid roaming	< 50 mS
Antennas	Up to three 2.4 / 5 GHz MIMO antenna
External antenna connector for long range communications	RP-SMA connector
Nominal range with built-in antennas	300m, open field
Security	64/128 bits WEP, WPA-PSK, WPA2-PSK, IEEE 802.1x (centralized RADIUS authenticator & supplicant), MAC addresses filtering, SSID broadcast control
Modes	Access point to build a WiFi network infrastructure, Bridge to connect any Ethernet equipments to this network, MODBUS/TCP wireless gateway, repeater, MESH point (IEEE 802.11s), infrastructure, AD-HOC, bridge router, turbo roaming (less than 50 mS single channel), WMM QoS, multicast and IGMP-Snooping modes are fully supported.
Administration	Built-in WEB interface, the setup of the device is achieved using any web browser, SNMP agent, ACKSYS NDM
Default signaling	LEDs signaling for radio quality, activity and status, Link 10/100/1000 and activity for the LAN port Data plug for easy configuration save & restore (C-KEY)
Digital inputs
Power supply	DC power supply (+9VDC to +36VDC), terminal block inside the enclosure
Power consumption	10W typical power consumption Power over Ethernet
PoE (IEEE 802.3at)	No
Environnement	Operating temperature: -25°C to +70°C (HR 0-99%), storage: -40°C to +80°C
Standard	MIL-STD-810F method 514.5 & 516.5 (shocks & vibrations), IP65 seal rating EN 301489-17 & EN 61000-6-2 (CEM), UTAC E2 (2004/104)
LED Signalling	LEDs signaling for radio quality, activity and status, Link 10/100/1000 and activity for the LAN port
Operating systems	Windows, Linux, UNIX as well as any operating system supporting TCP/I

Berat dan ukuran Acksys WLn-xROAD 11n Wireless Module Access Point

Dimensions	L:185 x W:64 x H:35 mm
Weight	450g with cables without antennas

Ringkasan Produk Acksys WLn-xROAD 11n Wireless Module Access Point

ACKSYS mengusulkan berbagai peralatan nirkabel ( WLAN ) untuk bidang industri dan transportasi mengandalkan standar WiFi IEEE 802.11 ( 2,4 & 5 GHz ) dan pada 900 MHz radio tanpa izin untuk jarak jauh dan non - line- of-sight operasi termasuk : jalur akses , jembatan , jembatan router , repeater , serial ke gateway nirkabel , switch radio , paket untuk titik ke titik komunikasi .

Peralatan ini memungkinkan untuk :

Membangun jaringan nirkabel
Hubungkan RS232 , RS422 , RS485 seri peralatan bersama tanpa operasi kabel
Menghubungkan jaringan Ethernet bersama-sama tanpa kabel apapun
Membangun jembatan nirkabel antara jaringan Modbus serial dan MODBUS / TCP
Nirkabel menghubungkan Ethernet , Modbus / TCP , PROFINET , Ethernet / IP , peralatan DNP3 ...
