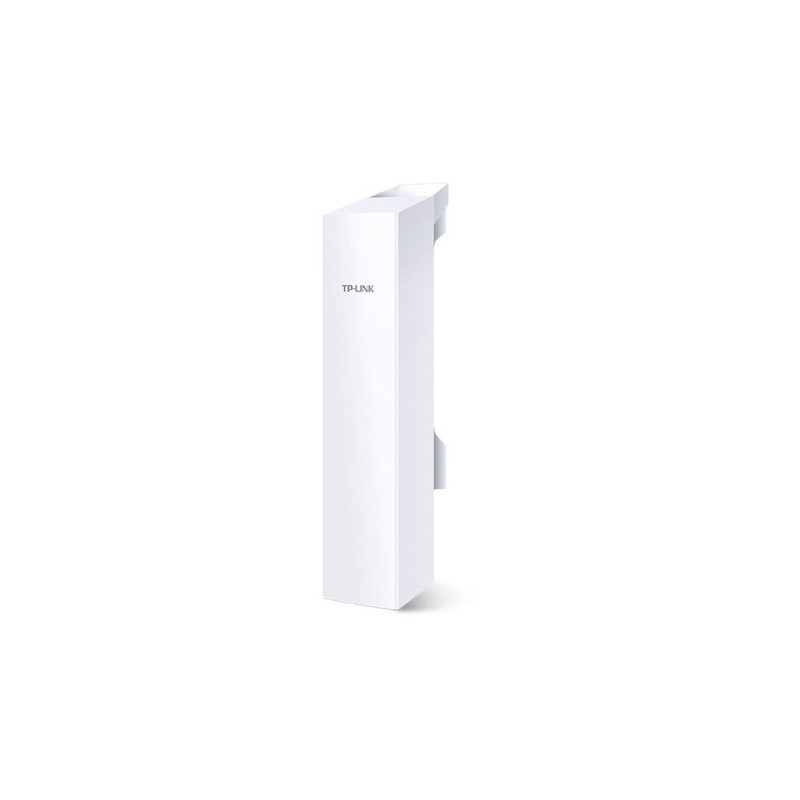

TP-Link CPE520 5GHz 300Mbps 16dBi Outdoor CPE

Kode Produk: 32777

Referensi SC0618

Kondisi: Produk baru

TP-Link CPE520 5GHz 300Mbps 16dBi Outdoor CPE
64MB DDR2 RAM, 8MB Flash, 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in), 1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough), 1 Grounding Terminal, 1 Reset Button

Lebih detail

Kirim ke teman

Kirim ke teman

TP-Link CPE520 5GHz 300Mbps 16dBi Outdoor CPE
TP-Link CPE520 5GHz 300Mbps 16dBi Outdoor CPE
64MB DDR2 RAM, 8MB Flash, 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in), 1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough), 1 Grounding Terminal, 1 Reset Button

Penerima: :

Nama teman Anda ^* :

Alamat email teman Anda ^* :

^* Harus diisi

atau Batal
Bagikan di Facebook
Cetak

Info lainnya

Spesifikasi TP-Link CPE520 5GHz 300Mbps 16dBi Outdoor CPE

Processor	Qualcomm Atheros Enterprise 560MHz CPU, MIPS 74Kc
Memory	64MB DDR2 RAM, 8MB Flash
Interface	1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in) 1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough) 1 Grounding Terminal 1 Reset Button
Power Supply	Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins) Voltage range: 16-27VDC
Power Consumption	14 Watts Max
Antenna Type	Built-in 16dBi 2x2 Dual-polarized Directional Antenna Beam Width: 45° (H-Plane) / 30° (E-Plane)
Protection	15KV ESD Protection 6KV Lightning Protection
Enclosure	Outdoor ASA stabilized plastic material IPX5 waterproof Certification
Wireless Standards	IEEE 802.11a/n (with Pharos MAXtream disabled)
Proprietary Protocol	TDMA Mode (with Pharos MAXtream enabled)
Wireless Speeds	Up to 300Mbps (40MHz,Dynamic) Up to 144.4Mbps (20MHz,Dynamic) Up to 72.2Mbps (10MHz,Dynamic) Up to 36.1Mbps (5MHz,Dynamic)
Frequency	5.15~5.85GHz
Transmission Power	27dBm/500mw (Adjustable power by 1dBm)
Wireless Configurations	Pharos MAXtream TDMA Technology 802.11a/n Modes Selectable Channel Width: 5/10/20/40MHz Automatic Channel Selection Transmission Power Control Dynamic Frequency Selection (DFS) WDS Enable/Disable Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption SSID Broadcast Enable/Disable Multi-SSID with VLAN Tagging (AP mode only) Distance/ACK Timeout Setting Wireless MAC Address Filter Wireless Advanced: > Beacon Interval/RTS Threshold/Fragmentation >Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
Management	Discovery and Remote Management via Pharos Control application HTTP/HTTPS Web-based management System Log SNMP Agent(v2c) Ping Watch Dog Dynamic DDNS SSH Server
System Tools	Wireless Signal Quality Indicators: Signal Strength/Noise/Transmit CCQ/CPU/Memory Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP Spectrum Analyzer Speed Test Ping Traceroute
System-level Optimizations	Optimized IGMP Snooping/Proxy for multicast applications Hardware watch dog
Input Current	0.8A Max @ 100VAC
Input Voltage	100VA~240VAC @ 50Hz~60Hz
Output	24VDC, 1.0A Max +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
Efficiency	>80%
Output Voltage	24VDC(+4,5pins; -7,8pins)
Input	100-240VAC, 50/60Hz
Power Status LEDs	0~0.8A: Green 0.8A~1.0A: Red
Certifications	CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
Interfaces	1 AC Jack with Earth Ground 1 10/100/1000Mbps Shielded Ethernet Port (Power + Data) 1 10/100/1000Mbps Shielded Ethernet Port (Data)
Button	Remote Reset Button
Certification	CE, FCC, RoHS, IPX5
System Requirements	Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Environment	Operating Temperature: -30°C~70°C (-22~158) Storage Temperature: -40~70 (-40~158) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing

Berat dan ukuran TP-Link CPE520 5GHz 300Mbps 16dBi Outdoor CPE

Dimensions ( W x D x H )	11×3.1×2.4 inch (276×79×60mm) 110×57×33.5mm (POE)

Isi Paket TP-Link CPE520 5GHz 300Mbps 16dBi Outdoor CPE

Package Contents	1xOutdoor Wireless CPE 1x24V 1A Passive PoE Adapter 1xPole Mounting Straps 1xAC Power Cord 1xInstallation Guide

Ringkasan Produk TP-Link CPE520 5GHz 300Mbps 16dBi Outdoor CPE

Antenna built-in MIMO dual-polarized directional 2x2 16dBi
Kekuatan transmisi yang bisa disesuaikan dari 0 sampai 27dBm/500mw
Optimisasi tingkat sistem untuk transmisi data wireless jarak jauh sampai dengan 13km
Teknologi TP-LINK Pharos MAXtream (Time-Division-Multiple-Access) meningkatkan throughput, kapasitas dan kinerja latency, ideal untuk aplikasi PTMP
Sistem Manajemen terpusat - Pharos Kontrol
Mendukung mode operasi AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP)
Adaptor Passive PoE mendukung penggunaan daya melalui Ethernet sampai dengan 60 meter (200 feet) dan memungkinkan perangkat direset secara remote
