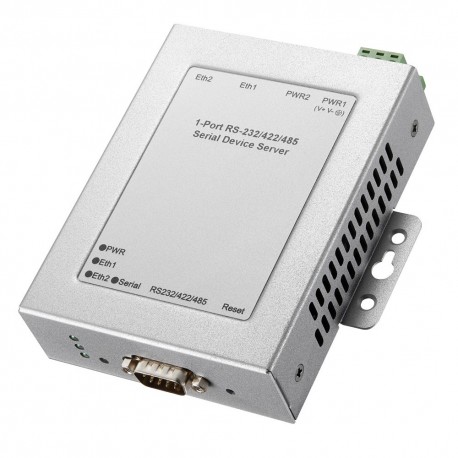

Korenix JetPort 5601 Industrial 1-port RS232/422/485 Serial Device Server

Kode Produk: 30919

Referensi AI0117/ET7/L10

Kondisi: Produk baru

2x 10/100BaseTX, Redundant Dual Ethernet
RJ-45 Auto MDI/MDI-X
Redundant Dual Ethernet, auto-recovery in less than 200ms
Built-in 1.5 KV
IP, TCP, UDP, ICMP, DHCP, BootP, ARP/RARP,Telnet, SNMP, HTTP, SNTP, SMTP

Lebih detail

Kirim ke teman
Kirim ke teman
Korenix JetPort 5601 Industrial 1-port RS232/422/485 Serial Device Server

2x 10/100BaseTX, Redundant Dual Ethernet

RJ-45 Auto MDI/MDI-X

Redundant Dual Ethernet, auto-recovery in less than 200ms

Built-in 1.5 KV

IP, TCP, UDP, ICMP, DHCP, BootP, ARP/RARP,Telnet, SNMP, HTTP, SNTP, SMTP
Penerima: :

Nama teman Anda ^* :

Alamat email teman Anda ^* :

^* Harus diisi

atau Batal
Bagikan di Facebook
Cetak

Info lainnya

Spesifikasi Korenix JetPort 5601 Industrial 1-port RS232/422/485 Serial Device Server

Network Interface
Ethernet	2x 10/100BaseTX, Redundant Dual Ethernet
Conector	RJ-45 Auto MDI/MDI-X
Feature	Redundant Dual Ethernet, auto-recovery in less than 200ms
Protection	Built-in 1.5 KV magnetic isolation protection
Protocols	IP, TCP, UDP, ICMP, DHCP, BootP, ARP/RARP, Telnet, SNMP, HTTP, SNTP, SMTP
Serial Communication
Interface	RS-232/422, 2/4-wire RS485
Conectors	Male DB9
Baud Rates	110 bps to 921.6 Kbps
Data Bits	5, 6, 7, 8
Parity	odd, even, none, Space, Mark
Stop Bits	1, 1.5, 2
Flow Control	TxD, RxD, RTS, CTS, DTR, DSR, GND, DCD
RS-422	Tx+,Tx-, Rx+, Rx-,GND
RS-485 (4-wire)	Tx+,Tx-, Rx+, Rx-,GND
RS-485 (2-wire)	Data+, Data-,GND Flow Control7XON/XOFF, RTS/CTS, DTR/DSR
Serial Line Protection	715KV ESD
Long Distance Termination	2*pin 120ohm DIP switches
Features
LED	Power 1/Power 2: Startup(Red); Ready(Green) Ethernet 1/Ethernet 2 : 10M Link(Orange), 100M Link(Green) Serial: Transmitting data(Green), Receiving data(Orange)
Configuration	Windows Utility-JetPort Commander, HTTP, Telnet
Serial Service	Real/Virtual COM, TCP Server, TCP Client, TCP Tunnel and UDP
Reset	Software reload default, Hardware reset button
SNTP	For time management
Access IP Table	16 IP addresses to prevent illegal users
Monitor	Devices’ status, VCOM statuReal/Virtual COM status
SNMP	RFC1213 MIB II, RFC1317 RS232_like and SNMP Trap
Email - Alert	Trap to Syslog server or local display
System Event	&7 Cold/Warm Start, Login Failed, IP and Password Changed, Access IP Blocked, Serial Port DCD/RI/DSR/CTS changed, Serial Port connected/disconnected.
Real COM Driver	32bit & 64bit OS
Windows Os	Win 7/Vista/XP/2000/2003/2008
Jet Port Comander	Device Discovery, Auto IP, Network Setting, Device and Real/Virtual COM, TCP Server, TCP Client, TCP Tunnel and UDP
Advanced Seting	TCP Alive Check Timeout, Inactivity Idle Timeout, Performance mode, Delimiter, Force TX Timeout for Data Packing and Force TX interval time upgrade, Group Backup/Restore, Real/Virtual COM and TCP Tunnel Setup Wizard

Berat dan ukuran Korenix JetPort 5601 Industrial 1-port RS232/422/485 Serial Device Server

Dimension	96.1mm(W)x99mm(D)x29.6mm(H)

Isi Paket Korenix JetPort 5601 Industrial 1-port RS232/422/485 Serial Device Server

Include	1-port RS-232/RS422/RS485 Redundant Serial Device Server Quick Installation Guide 100V - 240V power adapter Din-Rail kit and foot pads Documentation and Software CD-ROM

Ringkasan Produk Korenix JetPort 5601 Industrial 1-port RS232/422/485 Serial Device Server

Jetport 5601 adalah RS-232/422/485 untuk Redundant Ethernet Serial Perangkat Server. Serial interface dikonfigurasi dalam perangkat lunak dan mendukung kecepatan secepat 921.6kbps. Port dual Ethernet dapat mendukung RTTD (Redundant ke Device) atau menghubungkan sebagai Daisy Rantai. Dengan RTTD, port Ethernet berlebihan dapat auto-sembuh dalam waktu kurang dari 200ms jika master link breaks, sebagai hasilnya menjamin koneksi non-stop. The Jetport 5601 dapat dikonfigurasi dengan Jetport Komandan, sebuah utilitas yang mudah digunakan untuk Windows yang mencakup semua manajemen, pemantauan, dan fungsi kontrol untuk satu atau beberapa server Jetport. Selain konfigurasi Windows, Jetport dapat dikonfigurasi dengan HTTPS dan SSH, memberikan administrator fleksibilitas dan keamanan untuk manajemen perangkat. Selain itu, ada yang sampai 5 koneksi multi-link, termasuk Estate / Virtual COM atau TCP / UDP. Jetport 5601 dilengkapi dengan dua jenis input daya, terminal blok atau colokan listrik. The Jetport 5601 dapat dipasang di dinding atau din-rail dipasang dengan kit din-rail.
