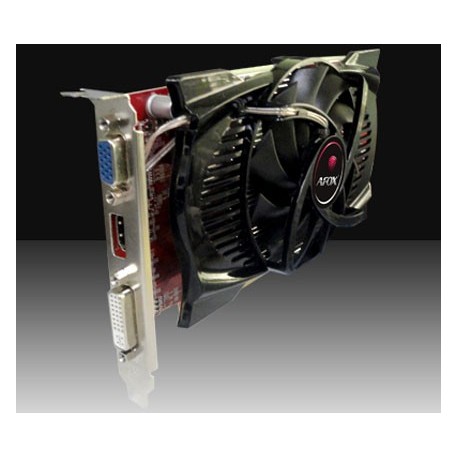

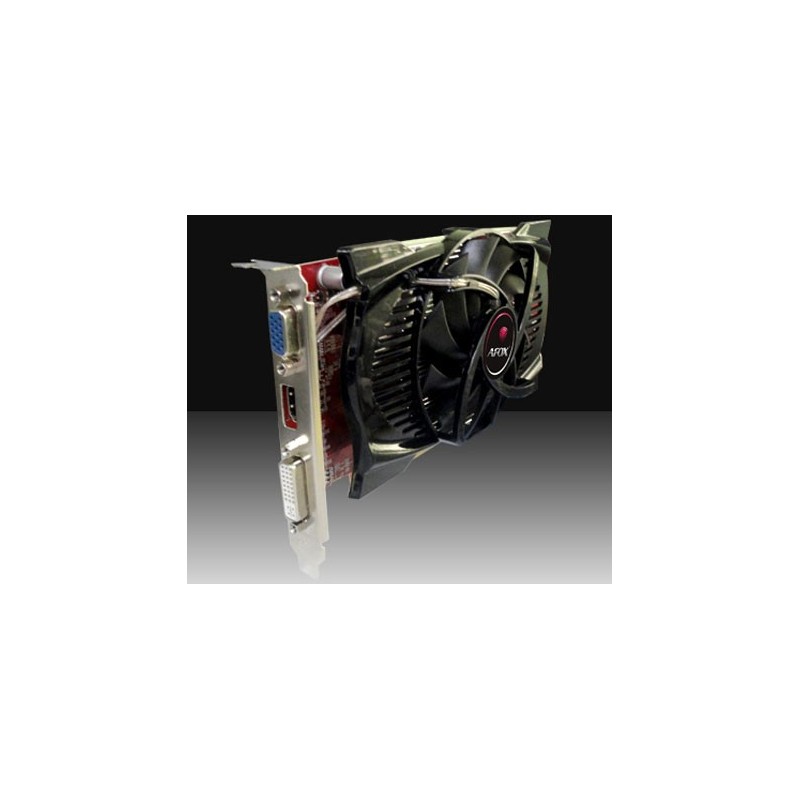

AFOX Radeon HD 5570 2GB DDR3 AF5570-2GB 2048D3H2

Spesifikasi produk VGA AFOX Radeon HD 5570 2GB DDR3 AF5570-2GB 2048D3H2

• 627 million 40nm transistors
• TeraScale 2 Unified Processing Architecture

• 400 Stream Processing Units
• 20 Texture Units
• 32 Z/Stencil ROP Units
• 8 Color ROP Units
• DDR3/GDDR5 memory interface
• PCI Express 2.1 x16 bus interface
• DirectX® 11 support

• • Shader Model 5.0
  • DirectCompute 11
  • Programmable hardware tessellation unit
  • Accelerated multi-threading
  • HDR texture compression
  • Order-independent transparency
• OpenGL 3.2, 3.3, and 4.0 support15
• Image quality enhancement technology

• • Up to 24x multi-sample and super-sample anti-aliasing modes
  • Adaptive anti-aliasing
  • 16x angle independent anisotropic texture filtering
  • 128-bit floating point HDR rendering
• ATI Eyefinity multi-display technology1,17

• Three independent display controllers
  • • Drive three displays simultaneously with independent resolutions, refresh rates, color controls, and video overlays
• Display grouping

• • • Combine multiple displays to behave like a single large display
• ATI Stream acceleration technology

• • OpenCL Support16
  • DirectCompute 11
  • Accelerated video encoding, transcoding, and upscaling2,5
• ATI CrossFireX™ multi-GPU technology6

• • Dual GPU scaling
• ATI Avivo™ HD Video & Display technology7

• • UVD 2 dedicated video playback accelerator
  • Advanced post-processing and scaling8
  • Dynamic contrast enhancement and color correction
  • Brighter whites processing (Blue Stretch)
  • Independent video gamma control
  • Dynamic video range control
  • Support for H.264, VC-1, MPEG-2, and Adobe Flash9
  • Dual-stream 1080p playback support10,11
  • DXVA 1.0 & 2.0 support
  • Integrated dual-link DVI output with HDCP12
    • Max resolution: 2560x160013
  • Integrated DisplayPort output
    • Max resolution: 2560x160013
  • HDMI® (With 3D, Deep Color and x.v.Color™)
    • Max resolution: 1920x120013
  • Integrated VGA output
    • Max resolution: 2048x153613
  • 3D stereoscopic display/glasses support14
  • Integrated HD audio controller
    • Output protected high bit rate 7.1 channel surround sound over HDMI with no additional cables required
    • Supports AC-3, AAC, Dolby TrueHD and DTS Master Audio formats
• ATI PowerPlay™ power management technology7

• • Dynamic power management with low power idle state
  • Ultra-low power state support for multi-GPU configurations
• Certified drivers for Windows 7, Windows Vista, and Windows XP

Speeds & Feeds

• Engine clock speed: 650 MHz
• Processing power (single precision): 520 GigaFLOPS
• Polygon throughput: 650M polygons/sec
• Data fetch rate (32-bit): 52 billion fetches/sec
• Texel fill rate (bilinear filtered): 13 Gigatexels/sec
• Pixel fill rate: 5.2 Gigapixels/sec
• Anti-aliased pixel fill rate: 20.8 Gigasamples/sec
• Memory clock speed:

• • DDR3:  900 MHz
  • GDDR5: 900-1000 MHz
• Memory data rate:

• • DDR3:  1.8 Gbps
  • GDDR5:  3.6-4.0 Gbps
• Memory bandwidth:

• • DDR3:  28.8 GB/s
  • GDDR5: 57.6-64 GB/s
• Maximum board power:  39 Watts
