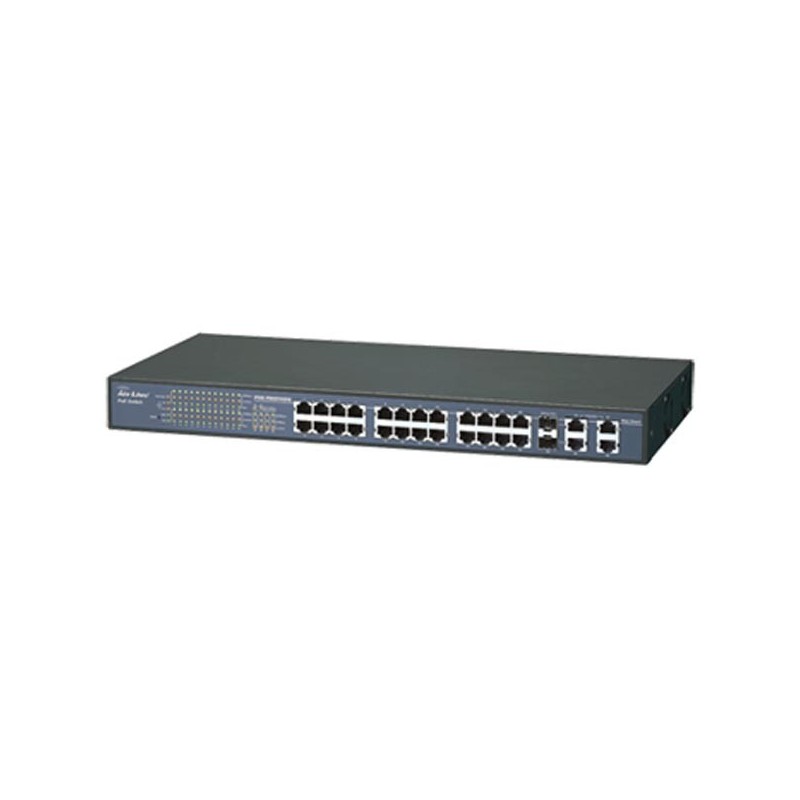

Airlive 24-POE 802.3af POE 4Port 1000Base-T 2Port SFP slot WEB Management POE-FSH2442G

Spesifikasi produk Networking Airlive 24-POE 802.3af POE 4Port 1000Base-T 2Port SFP slot WEB Management POE-FSH2442G

Standard

• IEEE 802.3 10BASE-T ?
• IEEE 802.3u 100BASE-TX ?
• IEEE 802.3ab 1000BASE-T ?
• IEEE 802.3z 1000BASE-SX/LX (GBIC) ?
• IEEE 802.3af DTE Power via MDI (12,36 pin)

Interface

• 24 x 10/100Mbps Auto-negotiation, Auto-MDIX PoE ports (port 1 ~ port 24) ?
• 4 x 10/100/1000Mbps Auto-MDIX Gigabit Ethernet ports (port 25 ~ port 28) ?
• 2 x mini GBIC ports, share with 2 1000BASE-T ports(port 25 ~ port 26)

Management

• Supports 802.1Q VLAN with 256 VLAN groups
• Supports 802.1p Priority Queues
• Supports static Port Trunk (Support Maximum 6 groups per device and 8 ports
• per group)
• Supports Port Mirroring
• Supports Broadcast Storm Control
• Supports DHCP Client
• Supports Port setting function allow user setting each port, speed, duplex
• mode and configure through Web browser
• Supports Port-setting for Speed/Disable, QoS

PoE

• Up to 15.4W for PoE per port
• Maximum 170W for all PoE ports (per device)
• PD classification identify
• Manual setting for PoE power limitation
• Supports PoE Priority setting
• PoE Over Current Protection
• PoE Circuit sorting protection
• PoE Power on RJ-45 pin 3,6 for Power(+) and pin 1,2 for Power(-)
• Power Supply
• 26.5 watts. (max. no PD device connected)
• 196.5 watts (max. for up to 11 PoE Device connected)

Protocol

• CSMA/CD

Topology

• Star

Network Data Transfer Rate Ethernet ?

• *10Mbps (Half-duplex)
• *20Mbps (Full-duplex)
• Fast Ethernet
• *100Mbps (Half-duplex)
• *200Mbps (Full-duplex)
•  Gigabit Ethernet
• *2000Mbps (Full-duplex)

Bandwidth

• 12.8 Gbps

Buffer memory

• 128KBytes

Address table

• 8K

LED indicators

• Per Unit: Power, System ( 2 LEDs )
• Per port: TX: Link/Activity, Speed ( 2 LEDs )
• PoE: PoE Status (port 1 ~ port 24) (bi-color LED)
• Per Copper Gigabit Port: Link/ACT, 1000M, 100M
• Per GBIC Gigabit Port: Link/ACT, 1000M

Power

• 100 - 240VAC 50/60Hz, Internal Universal Switching Power

Temperature

• Operating: 0 to 40°C?
• Storage: -10 to 70°C

Humidity

• Operating: 10% ~ 90%
• Storage: 5% ~ 90%

Emission

• CE Class A ?
• FCC Part 15 Class A?
• VCCI-A

Safety

• cUL (UL 60950) ?
• CB(IEC 60950)

Product Weight (g)

• 3215 g

Dimensions ( L x W x H (mm) )

• 440 x 210 x 44 mm
