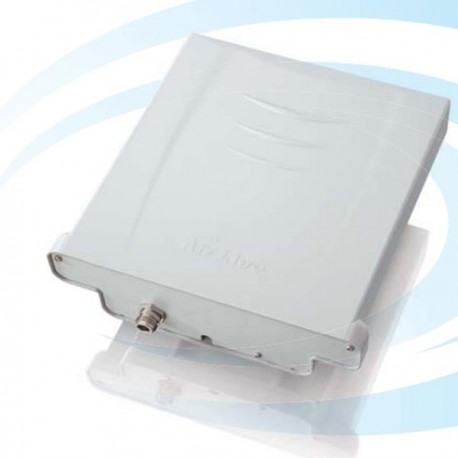

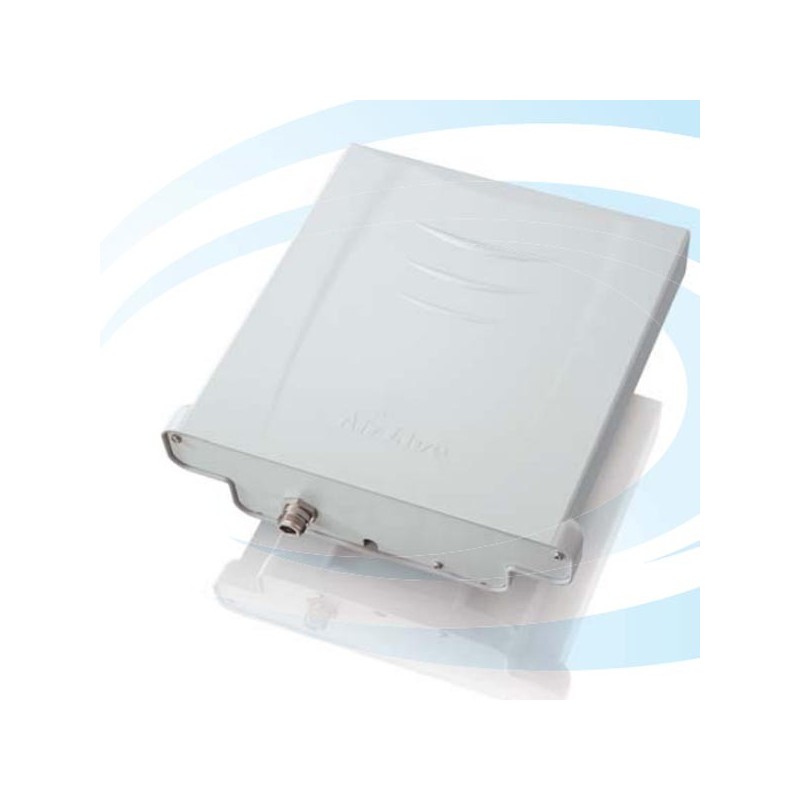

Airlive WHA-5500CPE-NT Wireless 24Ghz 5Ghz 802.11A B G Outdoor Multifunction AP 20dBm N-Type Connector POE

Spesifikasi Airlive WHA-5500CPE-NT Wireless 24Ghz 5Ghz 802.11A B G Outdoor Multifunction AP 20dBm N-Type Connector POE

Standard

• 802.11a/Super A /11g /Super G mode support
• RoHS compliant
• Supports One 10/100 Mbps LAN
• Auto MDI/MDI-X support
• 4MB Flash, 32MB SDRAM
• IEEE 802.3af (PoE) compliance up to 100 meters of
• CAT 5 cable length
• 802.11h compatible

Antenna Connector

• N-Type Female Connector

Frequency Band

• ETSI: 802.11a: 5.470 to 5.725 GHz
• USA: 802.11a: 5.725 to 5.825 GHz
• ETSI: 802.11b/g: 2.412 to 2.472 GHz
• USA: 802.11b/g: 2.412 to 2.462 GHz

Power Supply

• External Power Adapter : input 100~240Vac/50~60Hz
• output 5.5V/2.5A
• Power over Ethernet (802.3af), up to 100 meters of
• CAT 5 cable
• POE Adapter, DC Injector provided
• POE port built-in on the PCB

Transmission Rates

• IEEE802.11a: 6/9/12/18/24/36/48/54Mbps
• IEEE802.11g: 6/9/12/18/24/36/48/54Mbps
• IEEE802.11b: 1/2/5.5/11Mbps

Modulation Technology

• 802.11a Orthogonal Frequency Division Multiplexing
• (OFDM)
• 802.11g Orthogonal Frequency Division Multiplexing
• (OFDM)
• 802.11b Direct Sequence Spread Spectrum (DSSS)

Output Power
802.11a

•  54 Mbps @ 17dBm
•  48 Mbps @ 18dBm
•  36 Mbps @ 19dBm
•  6, 9, 12, 18, 24 Mbps @ 20dBm

802.11g

•  54 Mbps @ 17dBm
•  48 Mbps @ 18dBm
•  36 Mbps @ 20dBm
•  6, 9, 12, 18, 24 Mbps @ 20dBm

802.11b

•  1, 2, 5.5, 11 Mbps @ 20dBm

Software

• Support Client Mode, AP Mode, WDS Bridge Mode,
• Repeater Mode, WISP Mode
• Multiple SSID
• QoS (802.11e WMM)
• Wi-Fi, WPA compatible interoperability
• WPA with PSK/TKIP/AES support ,WPA2 support
• Privacy Separator support
• SNMP v1/v2 support
• Support adjustable output power
• Comply with DFS II
• 152-bit WEP support (Atheros Proprietary)
• Super A/G mode support (Atheros Proprietary)
• ACK Timeout Adjustment
• WPA over WDS support
• Bootloader Protection and Emergency Firmware
• Upload Code

Dimension

• Polarization : Linear, vertical

Software/Firmware

• Site Survey
• DHCP Client
• Wireless access control by MAC address (deny oraccept)
• WPA Support (WPA personal and enterprise)
• Web-based configuration via popular browser (MS
• IE, Netscape)
• Firmware upgrade and configuration backup via Web

Product Weight (g)

• 1105 g

Product Size ( L x W x H (mm) )

• 225 x 122 x 225 mm
