ASROCK G41M VS3

Specification ASROCK  G41M VS3

CPU

• • • - LGA 775 for Intel® Core™ 2 Extreme / Core™ 2 Quad / Core™ 2 Duo / Pentium® Dual Core / Celeron® Dual Core / Celeron, supporting Penryn Quad Core Yorkfield and Dual Core Wolfdale processors
    • - Supports FSB1333/1066/800/533 MHz
    • - Supports Hyper-Threading Technology
    • - Supports Untied Overclocking Technology
    • - Supports EM64T CPU

Chipset

• • • - Northbridge: Intel® G41
    • - Southbridge: Intel® ICH7

Memory

• • • - Dual Channel DDR3 memory technology
    • - 2 x DDR3 DIMM slots
    • - Supports DDR3 1333(OC)/1066/800 non-ECC, un-buffered memory
    • - Max. capacity of system memory: 8GB*
    • *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

BIOS

• • • 8Mb AMI Legal BIOS
    • Supports "Plug and Play"
    • ACPI 1.1 Compliance Wake Up Events
    • SMBIOS 2.3.1 Support
    • VCCM, NB, VTT Voltage Multi-adjustment Audio, Video and NetworkingGraphics- Intel® Graphics Media Accelerator X4500- Pixel Shader 4.0, DirectX 10
    • Max. shared memory 1759MB*
    • Supports D-Sub with max. resolution up to 2048x1536 @ 75Hz
    • *The shared memory size is dynamically controlled by VGA driver, and the Max. shared memory size will be available only when more than 4GB memory is installed under 64-bit OS.
    • Audio
    • 5.1 CH HD Audio (VIA® VT1705 Audio Codec)

LAN

• • • Atheros PCIEx1 LAN AR8132L
    • Speed: 10/100 Ethernet
    • Supports Wake-On-LAN
    • Supports PXE

Expansion / Connectivity
Slots

• • • 1 x PCI Express x16 slot
    • 1 x PCI slot

Connector

• • • 4 x SATA2 3.0 Gb/s connectors (No support for RAID and "Hot Plug" functions)
    • 1 x ATA100 IDE connector (supports 2 x IDE devices)
    • 1 x Print port header
    • CPU/Chassis FAN connector
    • 24 pin ATX power connector
    • 4 pin 12V power connector
    • Front panel audio connector
    • 2 x USB 2.0 headers (support 4 USB 2.0 ports)

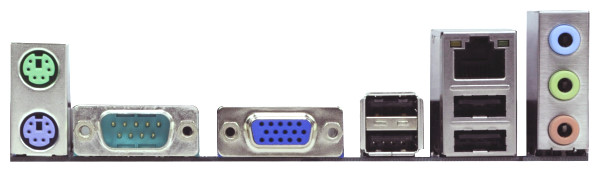

Rear Panel I/OI/O Panel

• • • 1 x PS/2 Mouse Port
    • 1 x PS/2 Keyboard Port
    • 1 x Serial Port: COM1
    • 1 x VGA Port
    • 4 x Ready-to-Use USB 2.0 Ports
    • 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    • HD Audio Jack: Line in / Front Speaker / Microphone

Other Features / Miscellaneous
Unique Feature

• • • ASRock OC Tuner
    • Intelligent Energy Saver
    • Instant Boot
    • ASRock Instant Flash
    • ASRock OC DNA
    • Hybrid Booster:
    • CPU Frequency Stepless Control
    • ASRock U-COP
    • Boot Failure Guard (B.F.G.)

Support CD

• • • Drivers, Utilities, AntiVirus Software (Trial Version), ASRock Software Suite (CyberLink DVD Suite - OEM and Trial; Creative Sound Blaster X-Fi MB - Trial)Accessories- Quick Installation Guide, Support CD, I/O Shield
    • 2 x SATA Data Cables
    • Hardware Monitor
    • CPU Temperature Sensing
    • Chassis Temperature Sensing
    • CPU Fan Tachometer
    • Chassis Fan Tachometer
    • CPU Quiet Fan
    • Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
    • Form Factor
    • Micro ATX Form Factor: 8.9-in x 6.7-in, 22.6 cm x 17.0 cm
    • OS
    • Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliantCertifications- FCC, CE
    • EuP Ready (EuP ready power supply is required)

Warranty

• • •  1-year Limited Warranty by Authorized Distributor

Others

• • • Boot Failure Guard (B.F.G.)
    • ASRock OC Tuner
    • Intelligent Energy Saver
    • ASRock OC Tuner
    • ASRock Instant Flash
    • ASRock OC DNA
    • Hybrid Booster:
    • CPU Frequency Stepless Control
    • ASRock U-COP

 Perhatian:

• • • Mohon disadari bahwa ada resiko tertentu yang terlibat dengan overclocking, termasuk menyesuaikan pengaturan di BIOS atau menggunakan tool pihak ketiga overclocking. Overclocking dapat mempengaruhi stabilitas sistem anda, atau bahkan menyebabkan kerusakan pada komponen dan perangkat dari sistem anda. Ini harus dilakukan di risiko Anda sendiri dan biaya. Kami tidak bertanggung jawab kalau ada kerusakan yang disebabkan oleh overclocking.
    • Spesifikasi dapat berubah tanpa pemberitahuan terlebih dahulu. Nama-nama merek dan produk adalah merek dagang dari masing-masing perusahaan. Setiap konfigurasi selain spesifikasi produk asli tidak dijamin.
