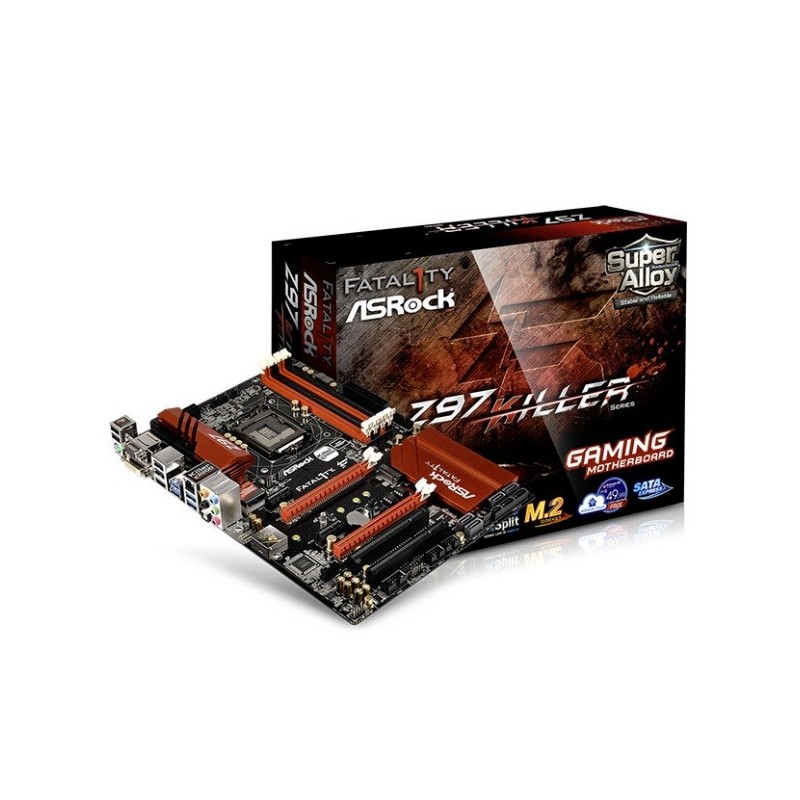

Asrock Fatal1ty Z97 KILLER (LGA1150, Z97, DDR3) - New!

Spesfikasi Asrock Fatal1ty Z97 KILLER (LGA1150, Z97, DDR3) - New!

General
Gaming Armor

CPU Power

• Hi-Density Power Connector

Memory

• NexFET™ MOSFET
• 15μ Gold Contact in DIMM Slots

VGA Card

• 15μ Gold Contact in VGA PCIe Slot (PCIE2)

Internet

• Qualcomm® Atheros® Killer™ LAN

Cooling

• XXL Aluminum Alloy Heatsink

Audio

• Purity Sound™ 2

Unique Feature

ASRock Super Alloy

• XXL Aluminum Alloy Heatsink
• Premium Alloy Choke (Reduces 70% core loss compared to iron powder choke)
• NexFET™ MOSFET
• Nichicon 12K Platinum Caps (100% Japan made high quality conductive polymer capacitors)
• Sapphire Black PCB
• ASRock Full Spike Protection
• ASRock Cloud
• ASRock APP Shop

CPU

• Supports 5th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processors (Socket 1150)
• Supports New 4th and 4th Generation Intel® Xeon®/Core™ i7/i5/i3/Pentium®/Celeron® Processors (Socket 1150)
• Digi Power design
• 8 Power Phase design
• Supports Intel® Turbo Boost 2.0 Technology
• Supports Intel® K-Series unlocked CPUs
• Supports ASRock BCLK Full-range Overclocking

Chipset

• Intel® Z97

Memory

• Dual Channel DDR3 Memory Technology
• 4 x DDR3 DIMM Slots
• Supports DDR3 3200+(OC)/2933(OC)/2800(OC)/2400(OC)/2133(OC)/1866(OC)/1600/1333/1066 non-ECC, un-buffered memory
• Max. capacity of system memory: 32GB*
• Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2

BIOS

• 2 x 64Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS)
• Supports Secure Backup UEFI Technology
• ACPI 1.1 Compliant wake up events
• SMBIOS 2.3.1 Support
• CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage Multi-adjustment

 Audio, Video and Networking
Graphics

• Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 4400/4600
• Pixel Shader 5.0, DirectX 11.1
• Max. shared memory 1792MB
• Three graphics output options: D-Sub, DVI-D and HDMI
• Supports Triple Monitor
• Supports HDMI with max. resolution up to 4K x 2K (4096x2304) @ 24Hz
• Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
• Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
• Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
• Supports HDCP with DVI-D and HDMI Ports
• Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports

Audio

• 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec)
• Premium Blu-ray Audio support
• Supports Surge Protection (ASRock Full Spike Protection)
• Supports Purity Sound™ 2
• Nichicon Fine Gold Series Audio Caps
• 115dB SNR DAC with differential amplifier
• TI® NE5532 Premium Headset Amplifier (Supports up to 600 ohm headsets)
• Direct Drive Technology
• EMI shielding cover
• PCB isolate shielding
• Supports DTS Connect

LAN

• PCIE x1 Gigabit LAN 10/100/1000 Mb/s
• Qualcomm® Atheros® Killer™ E2200 Series
• Supports Qualcomm® Atheros® Security Wake On Internet Technology
• Supports Wake-On-LAN
• Supports Lightning/ESD Protection (ASRock Full Spike Protection)
• Supports Energy Efficient Ethernet 802.3az
• Supports PXE

 Expansion / Connectivity
Slots

• 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)
• 1 x PCI Express 2.0 x16 Slot (PCIE4: x4 mode)
• 2 x PCI Express 2.0 x1 Slots
• 2 x PCI Slots
• Supports AMD Quad CrossFireX™ and CrossFireX™

Storage

• 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 13 and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug
• 1 x SATA Express 10 Gb/s Connector (shared with SATAE_4, SATAE_5 and M.2 Socket)*
• 1 x M.2_SSD (NGFF) Socket 3, supports M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen2 x2 (10 Gb/s)

Connector

• 1 x COM Port Header
• 1 x TPM Header
• 1 x Power LED Header
• 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
• 3 x Chassis Fan Connectors (1 x 4-pin, 2 x 3-pin)
• 1 x Power Fan Connector (3-pin)
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
• 1 x Front Panel Audio Connector
• 1 x Thunderbolt™ AIC Connector*
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
• 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))

Rear Panel I/O

• 1 x PS/2 Mouse/Keyboard Port
• 1 x D-Sub Port
• 1 x DVI-D Port
• 1 x HDMI Port
• 1 x Optical SPDIF Out Port
• 3 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
• 1 x Fatal1ty Mouse Port (USB 2.0) (Supports ESD Protection (ASRock Full Spike Protection))
• 4 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
• HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Other Features / Miscellaneous

Software and UEFI

Software

• ASRock F-Stream
• ASRock Disk Health Report
• ASRock USB Key
• ASRock Key Master
• ASRock APP Charger
• ASRock XFast RAM
• ASRock Restart to UEFI

UEFI

• ASRock Full HD UEFI
• ASRock My Favorites in UEFI
• ASRock UEFI Guide
• ASRock Instant Flash
• ASRock Internet Flash
• ASRock Crashless BIOS
• ASRock OMG (Online Management Guard)
• ASRock UEFI System Browser
• ASRock UEFI Tech Service
• ASRock Dehumidifier
• ASRock Easy RAID Installer
• ASRock Easy Driver Installer

Support CD

• Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, Start8 (30 days trial), Orbweb.ME Professional (Win 8.1 / 7), XSplit, Killer Network Manager

Accessories

• Quick Installation Guide, Support CD, I/O Shield
• 4 x SATA Data Cables
• 1 x Screw for M.2_SSD (NGFF) Socket 3

Hardware Monitor

• CPU/Chassis temperature sensing
• CPU/Chassis/Power Fan Tachometer
• CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
• CPU/Chassis Fan multi-speed control
• Voltage monitoring: +12V, +5V, +3.3V, CPU Input Voltage, CPU Internal Voltages

Form Factor

• ATX Form Factor
• High Density Glass Fabric PCB

OS

• Microsoft® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit

Certifications

• FCC, CE, WHQL
• ErP/EuP ready (ErP/EuP ready power supply is required)
