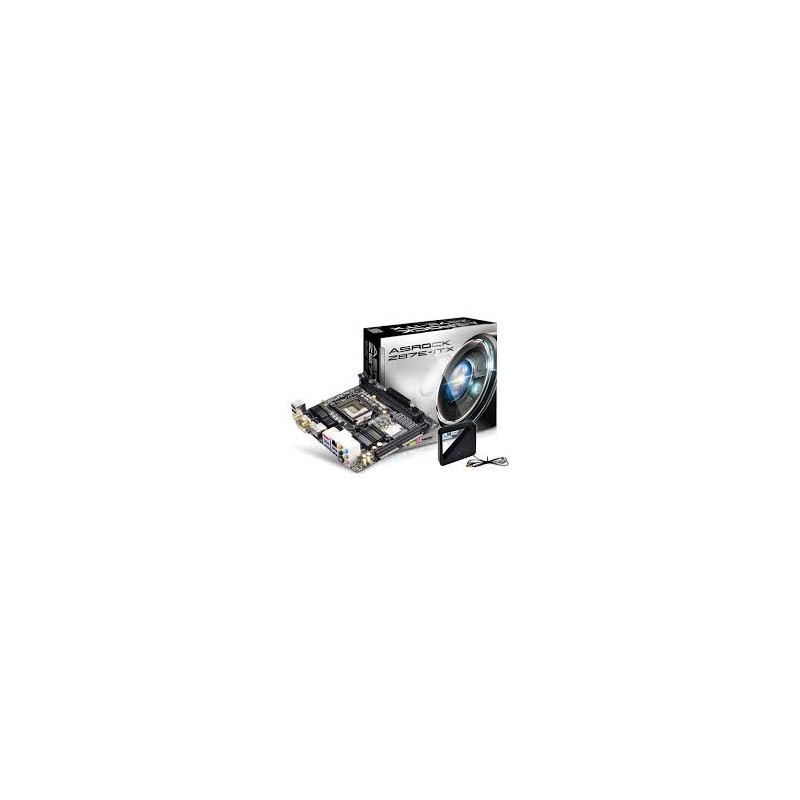

ASRock Z87E-ITX (LGA1150, Z87, DDR3) (Intel Haswell Refresh Compatible)

Spesifikasi ASRock Z87E-ITX (LGA1150, Z87, DDR3) (Intel Haswell Refresh Compatible)

General
A-Style

• Home Cloud
• 802.11ac WiFi

CPU

• Supports New 4th and 4th Generation Intel® Core™ i7/i5/i3/Xeon®/Pentium®/Celeron® Processors (Socket 1150)
• Digi Power Design
• 6 Power Phase design
• DrMOS
• Supports Intel® Turbo Boost 2.0 Technology
• Supports Intel® K-Series unlocked CPU
• Supports ASRock BCLK Full-range Overclocking

Chipset

• Intel® Z87

Memory

• Dual Channel DDR3 memory technology
• 2 x DDR3 DIMM slots
• Supports DDR3 2933+(OC)/2800(OC)/2400(OC)/2133(OC)/1866(OC)/1600/1333/1066 non-ECC, un-buffered memory
• Max. capacity of system memory: 16GB*
• Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2

BIOS

• 64Mb AMI UEFI Legal BIOS with Multilingual GUI support
• ACPI 1.1 Compliance Wake Up Events
• SMBIOS 2.3.1 Support
• CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage Multi-adjustment

 Audio, Video and Networking
Graphics

• Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 4400/4600
• Pixel Shader 5.0, DirectX 11.1
• Max. shared memory 1792MB
• Three graphics output options: DVI-I, HDMI and DisplayPort
• Supports Triple Monitor
• Supports HDMI Technology with max. resolution up to 4K x 2K (4096x2304) @ 24Hz
• Supports DVI-I with max. resolution up to 1920x1200 @ 60Hz
• Supports DisplayPort with max. resolution up to 4K x 2K (4096x2304) @ 24Hz
• Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required)
• Supports HDCP function with DVI-I, HDMI and DisplayPort ports
• Supports Full HD 1080p Blu-ray (BD) playback with DVI-I, HDMI and DisplayPort ports

Audio

• 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec)
• Premium Blu-ray audio support
• TI® NE5532 Premium Headset Amplifier (Supports up to 600 ohm headsets)
• Supports DTS Connect

LAN

• Gigabit LAN 10/100/1000 Mb/s
• Giga PHY Intel® I217V
• Supports Intel® Remote Wake Technology
• Supports Wake-On-LAN
• Supports Energy Efficient Ethernet 802.3az
• Supports PXE

Wireless LAN

• Supports IEEE 802.11a/b/g/n/ac
• Supports Dual-Band (2.4/5 GHz)
• Supports high speed wireless connections up to 867Mbps
• 2 Antennas to support 2 (Transmit) x 2 (Receive) Diversity Technology
• Supports Bluetooth 4.0 / 3.0 + High speed class II

Expansion / Connectivity
Slots

• 1 x PCI Express 3.0 x16 slot
• 1 x half mini-PCI Express slot: For WiFi + BT module
• 1 x mSATA/full mini-PCI Express slot

Storage

• 6 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 12 and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug (SATA3_5 connector is shared with the eSATA port; SATA3_4 connector is shared with the mSATA/mini-PCI Express slot)
• 1 x eSATA connector, supports NCQ, AHCI and Hot Plug
• 1 x mSATA 6.0 Gb/s connector (Solid-State Drive connector), supports NCQ, AHCI and Full-size mini-PCI Express modules

Connector

• 1 x Chassis Intrusion header
• 1 x TPM header
• 1 x CPU Fan connector (4-pin)
• 1 x Chassis Fan connector (4-pin)
• 1 x 24 pin ATX power connector
• 1 x 8 pin 12V power connector (High Density Power Connector)
• 1 x Front panel audio connector
• 2 x USB 2.0 headers (support 4 USB 2.0 ports)
• 1 x USB 3.0 header (supports 2 USB 3.0 ports)

Rear Panel I/O
I/O Panel

• 1 x PS/2 Mouse/Keyboard Port
• 1 x DVI-I Port
• 1 x HDMI Port
• 1 x DisplayPort
• 1 x Optical SPDIF Out Port
• 1 x eSATA Connector
• 2 x USB 2.0 Ports
• 4 x USB 3.0 Ports
• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
• 1 x Clear CMOS Switch
• HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

 Other Features / Miscellaneous
Unique Feature

• ASRock APP Shop
• ASRock A-Tuning
• ASRock Instant Flash
• ASRock APP Charger
• ASRock XFast USB
• ASRock XFast LAN
• ASRock XFast RAM
• ASRock Crashless BIOS
• ASRock OMG (Online Management Guard)
• ASRock Internet Flash
• ASRock UEFI System Browser
• ASRock UEFI Tech Service
• ASRock Dehumidifier
• ASRock Easy RAID Installer
• ASRock Easy Driver Installer
• ASRock Interactive UEFI
• ASRock Fast Boot
• ASRock Restart to UEFI
• ASRock USB Key
• ASRock FAN-Tastic Tuning
• Hybrid Booster:
• CPU Frequency Stepless Control
• ASRock U-COP
• Boot Failure Guard (B.F.G.)
• Good Night LED

Support CD

• Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, Google Chrome Browser and Toolbar, Start8 (30 days trial), MeshCentral, Splashtop Streamer, Intel® Extreme Tuning Utility (IXTU)

Accessories

• Quick Installation Guide, Support CD, I/O Shield
• 4 x SATA Data Cables
• 1 x ASRock WiFi 2.4/5GHz Antenna
• 1 x DVI-to-D-Sub Converter
• 1 x mSATA Screw

Hardware Monitor

• CPU/Chassis Temperature Sensing
• CPU/Chassis Tachometer
• CPU/Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
• CPU/Chassis Fan Multi-Speed Control
• CASE OPEN detection
• Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

Form Factor

• Mini-ITX Form Factor
• Premium Gold Capacitor design (100% Japan made high quality conductive polymer capacitors)

OS

• Microsoft® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit

Certifications

• FCC, CE, WHQL
• ErP/EuP Ready (ErP/EuP ready power supply is required)
