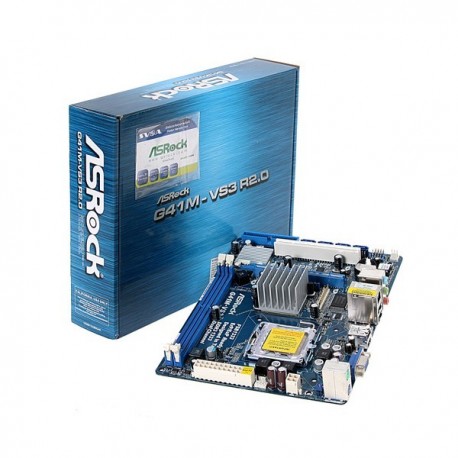

ASRock G41M-VS3 R2 (LGA775, Intel G41, DDR3)

Spesifikasi ASRock G41M-VS3 R2 (LGA775, Intel G41, DDR3)

General
CPU

• LGA 775 for Intel® Core™ 2 Extreme / Core™ 2 Quad / Core™ 2 Duo / Pentium® Dual Core / Celeron® Dual Core / Celeron, supporting Penryn Quad Core Yorkfield and Dual Core Wolfdale processors
• Supports FSB1333/1066/800/533 MHz
• Supports Hyper-Threading Technology
• Supports Untied Overclocking Technology
• Supports EM64T CPU

Chipset

• Northbridge: Intel® G41
• Southbridge: Intel® ICH7

Memory

• Dual Channel DDR3 memory technology
• 2 x DDR3 DIMM slots
• Supports DDR3 1333(OC)/1066/800 non-ECC, un-buffered memory
• Max. capacity of system memory: 8GB*

BIOS

• 8Mb AMI Legal BIOS
• Supports "Plug and Play"
• ACPI 1.1 Compliance Wake Up Events
• SMBIOS 2.3.1 Support
• VCCM, NB, VTT, GTLRef Voltage Multi-adjustment

 Audio, Video and Networking
Graphics

• Intel® Graphics Media Accelerator X4500
• Pixel Shader 4.0, DirectX 10
• Max. shared memory 1759MB
• Supports D-Sub with max. resolution up to 2048x1536 @ 75Hz

Audio

• 5.1 CH HD Audio (Realtek ALC662 / VIA® VT1705 Audio Codec)

LAN

• Atheros® PCIEx1 LAN AR8152
• Speed: 10/100 Ethernet
• Supports Wake-On-LAN

 Expansion / Connectivity
Slots

• 1 x PCI Express x16 slot
• 1 x PCI slot

Connector

• 4 x SATAII 3.0 Gb/s connectors (No support for RAID and Hot Plug functions)
• 1 x ATA100 IDE connector (supports 2 x IDE devices)
• 1 x Print port header
• 1 x COM port header
• CPU/Chassis FAN connector
• 24 pin ATX power connector
• 4 pin 12V power connector
• Front panel audio connector
• 2 x USB 2.0 headers (support 4 USB 2.0 ports)

Rear Panel I/O
I/O Panel

• 1 x PS/2 Mouse Port
• 1 x PS/2 Keyboard Port
• 1 x VGA Port
• 4 x Ready-to-Use USB 2.0 Ports
• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
• HD Audio Jack: Line in / Front Speaker / Microphone

 Other Features / Miscellaneous
Unique Feature

• ASRock OC Tuner
• Intelligent Energy Saver
• Instant Boot
• ASRock Instant Flash
• ASRock OC DNA
• ASRock APP Charger
• SmartView
• ASRock XFast USB
• Hybrid Booster:
• CPU Frequency Stepless Control
• ASRock U-COP
• Boot Failure Guard (B.F.G.)

Support CD

• Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, Google Chrome Browser and Toolbar

Accessories

• Quick Installation Guide, Support CD, I/O Shield
• 2 x SATA Data Cables

Hardware Monitor

• CPU Temperature Sensing
• Chassis Temperature Sensing
• CPU Fan Tachometer
• Chassis Fan Tachometer
• CPU Quiet Fan
• Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

Form Factor

• Micro ATX Form Factor: 8.9-in x 6.7-in, 22.6 cm x 17.0 cm

OS

• Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant

Certifications

• FCC, CE, WHQL
• ErP/EuP Ready (ErP/EuP ready power supply is required)
