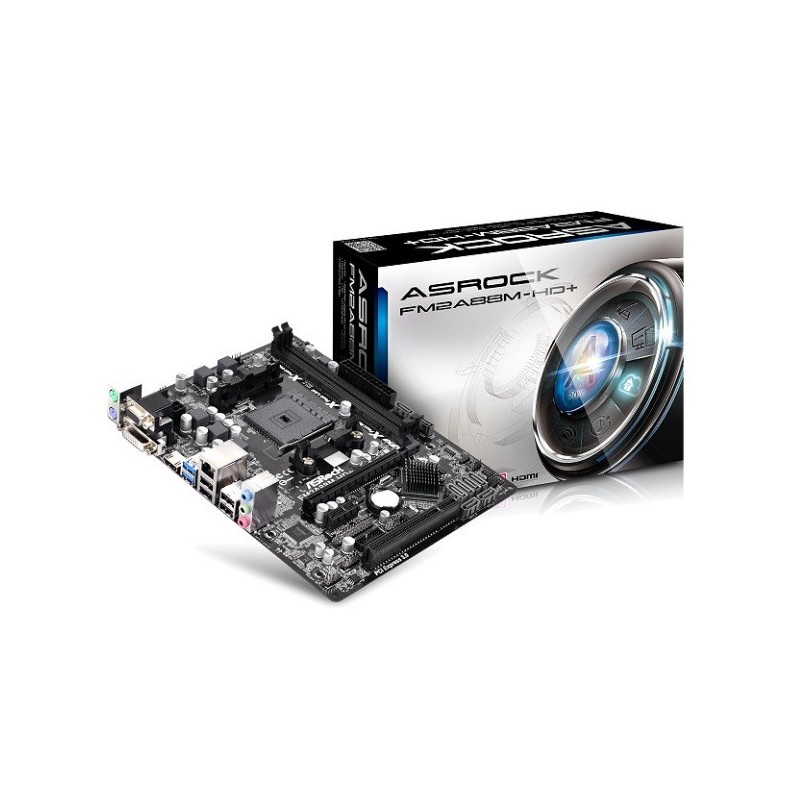

ASRock FM2A88M-HD+ (FM2+, AMD A88X, DDR3)

Spesifikasi ASRock FM2A88M-HD+ (FM2+, AMD A88X, DDR3)

General
A-Style

• ASRock Cloud

CPU

• Supports Socket FM2+ 95W / FM2 100W processors

Chipset

• AMD A88X (Bolton-D4)

Memory

• Dual Channel DDR3 Memory Technology
• 2 x DDR3 DIMM Slots
• Supports DDR3 1866/1600/1333/1066 non-ECC, un-buffered memory
• Max. capacity of system memory: 32GB*
• Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2
• Supports AMD Memory Profile (AMP)

BIOS

• 64Mb AMI UEFI Legal BIOS with GUI support
• Supports "Plug and Play"
• ACPI 1.1 Compliant wake up events
• Supports jumperfree
• SMBIOS 2.3.1 support
• DRAM, CPU Voltage multi-adjustment

Audio, Video and Networking
Graphics

• Integrated AMD Radeon™ R7/R5 Series Graphics in A-series APU
• DirectX 11.1, Pixel Shader 5.0 with FM2+ CPU. DirectX 11, Pixel Shader 5.0 with FM2 CPU.
• Max. shared memory 2GB
• Multi Graphics Output Options: D-Sub, DVI-D and HDMI Ports
• Supports Triple Monitor
• Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz * Only FM2+ APU can support up to 4096x2160 resolution display via HDMI port
• Supports Dual-link DVI-D with max. resolution up to 2560x1600 @ 60Hz
• Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
• Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
• Supports Blu-ray Stereoscopic 3D with HDMI Port
• Supports AMD Steady Video™ 2.0: New video post processing capability for automatic jitter reduction on home/online video
• Supports HDCP with DVI-D and HDMI Ports
• Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports

Audio

• 5.1 CH HD Audio (Realtek ALC662 Audio Codec)

LAN

• PCIE x1 Gigabit LAN 10/100/1000 Mb/s
• Realtek RTL8111FR
• Supports Realtek RealWoW! Technology
• Supports Wake-On-LAN
• Supports LAN Cable Detection
• Supports Energy Efficient Ethernet 802.3az
• Supports PXE

 Expansion / Connectivity
Slots

• 1 x PCI Express 3.0 x16 Slot (PCIE1 @ x16 mode)
• 1 x PCI Express 2.0 x1 Slot
• 1 x PCI Slot
• Supports AMD Dual Graphics

Storage

• 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5 and RAID 10), NCQ, AHCI and Hot Plug

Connector

• 1 x Print Port Header
• 1 x COM Port Header
• 1 x Chassis Intrusion Header
• 1 x TPM Header
• 1 x CPU Fan Connector (4-pin)
• 1 x Chassis Fan Connector (4-pin)
• 1 x Power Fan Connector (3-pin)
• 1 x 24 pin ATX Power Connector
• 1 x 4 pin 12V Power Connector
• 1 x Front Panel Audio Connector
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
• 1 x USB 3.0 Header by AMD A88X (Bolton-D4) (Supports 2 USB 3.0 ports)

Rear Panel I/O

• 1 x PS/2 Mouse Port
• 1 x PS/2 Keyboard Port
• 1 x D-Sub Port
• 1 x DVI-D Port
• 1 x HDMI Port
• 4 x USB 2.0 Ports
• 2 x USB 3.0 Ports (AMD A88X (Bolton-D4))
• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
• HD Audio Jacks: Line in / Front Speaker / Microphone

 Other Features / Miscellaneous
Unique Feature

• ASRock A-Tuning
• ASRock APP Shop
• ASRock Instant Boot
• ASRock Instant Flash
• ASRock APP Charger
• ASRock XFast USB
• ASRock XFast LAN
• ASRock XFast RAM
• ASRock Crashless BIOS
• ASRock OMG (Online Management Guard)
• ASRock Internet Flash
• ASRock UEFI System Browser
• ASRock UEFI Tech Service
• ASRock Dehumidifier Function
• ASRock Easy RAID Installer
• ASRock Easy Driver Installer
• ASRock Interactive UEFI
• ASRock Fast Boot
• ASRock X-Boost
• ASRock Restart to UEFI
• ASRock USB Key
• ASRock FAN-Tastic Tuning
• Hybrid Booster:
• ASRock U-COP

Support CD

• Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, Google Chrome Browser and Toolbar, Start8 (30 days trial)

Accessories

• Quick Installation Guide, Support CD, I/O Shield
• 2 x SATA Data Cables

Hardware Monitor

• CPU temperature sensing
• Chassis temperature sensing
• CPU Fan Tachometer
• Chassis Fan Tachometer
• CPU/Chassis Quiet Fan
• CPU/Chassis Fan multi-speed control
• CASE OPEN detection
• Voltage monitoring: +12V, +5V, +3.3V, Vcore

Form Factor

• Micro ATX Form Factor
• All Solid Capacitor design

OS

• Microsoft® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit

Certifications

• FCC, CE, WHQL
• ErP/EuP ready (ErP/EuP ready power supply is required)
