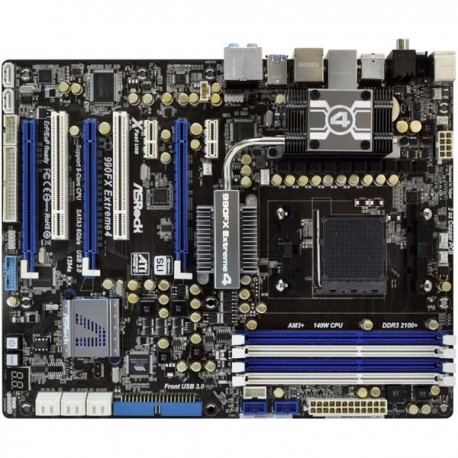

ASRock 990FX EXTREME4 AM3 AM3 AMD 990 DDR3 USB3 SATA3

Spesifikasi produk Motherboard AMD ASRock 990FX EXTREME4 AM3 AM3 AMD 990 DDR3 USB3 SATA3

Model
Brand

• ASRock

Model

• 990FX Extreme4

Supported CPU
CPU Socket Type

• AM3+

CPU Type

• FX / Phenom II / Athlon II / Sempron 100 Series

Chipsets
Chipset

• AMD 990FX + SB950

Memory
Number of Memory Slots

• 4×240pin

Memory Standard

• DDR3 2100(OC) / 1866 / 1600 / 1333 / 1066 / 800

Maximum Memory Supported

• 32GB

Channel Supported

• Dual Channel

Expansion Slots
PCI Express 2.0 x16

• 3 (x16, x16, x4)

PCI Express x1

• 2

PCI Slots

• 2

Storage Devices
PATA

• 1 x ATA133 2 Dev. Max

SATA 6Gb/s

• 8 x SATA 6Gb/s (SATA3_8 connector is shared with eSATA3 port)

SATA RAID

• 6 x SATA3 6.0 Gb/s support RAID 0/1/0+1/5/JBOD by SB950

Onboard Video
Onboard Video Chipset

• None

Onboard Audio
Audio Chipset

• Realtek ALC892

Audio Channels

• 8 Channels

Onboard LAN
LAN Chipset

• Broadcom BCM57781

Max LAN Speed

• 10/100/1000Mbps

Rear Panel Ports
PS/2

• 2

USB 3.0

• 2 x USB 3.0

USB 1.1/2.0

• 6 x USB 2.0

IEEE 1394

• 1 x IEEE 1394a

eSATA

• 1 x eSATA 6Gb/s

S/PDIF Out

• 1 x Optical, 1 x Coaxial

Audio Ports

• 6 Ports

Internal I/O Connectors
Onboard USB

• 2 x USB 3.0 + 4 x USB 2.0

Onboard 1394

• 1 x 1394a

Other Connectors

• 1 x Floppy connector
• 1 x IR header
• 1 x COM port header
• 1 x HDMI_SPDIF header
• 1 x Power LED header
• CPU/Chassis/Power FAN connector
• 24 pin ATX power connector
• 8 pin 12V power connector
• CD in header
• Front panel audio connector
• 1 x Dr. Debug (7-Segment Debug LED)

Physical Spec
Form Factor

• ATX

Dimensions (W x L)

• 12.0" x 9.6"

Power Pin

• 24 Pin

Features
Features

• Premium Gold Caps (2.5 x longer life time), 100% Japan-made high-quality Conductive Polymer Capacitors
• Supports AM3+ Processor, 8-Core CPU
• Supports Dual Channel DDR3 2100(OC)
• Supports AMD Quad CrossFireX, 3-Way CrossFireX and CrossFireX
• Supports NVIDIA Quad SLI and SLI
• 2 x Front USB 3.0, 2 x Rear USB 3.0, 8 x SATA3, 2 x IEEE 1394
• Dr. Debug, Power/Reset/Clear CMOS Switch with LED
• Supports XFast USB Technology, Graphical UEFI
• Supports On/Off Play Technology, Instant Boot, Instant Flash, APP Charger, SmartView, Turbo UCC
• 7.1 CH HD Audio with Content Protection, supports THX TruStudio
• Free Bundle : CyberLink MediaEspresso 6.5 Trial, 1 x 3.5mm Audio Cable

Manufacturer Warranty

Parts

• 2 years limited

Labor

• 2 years limited
