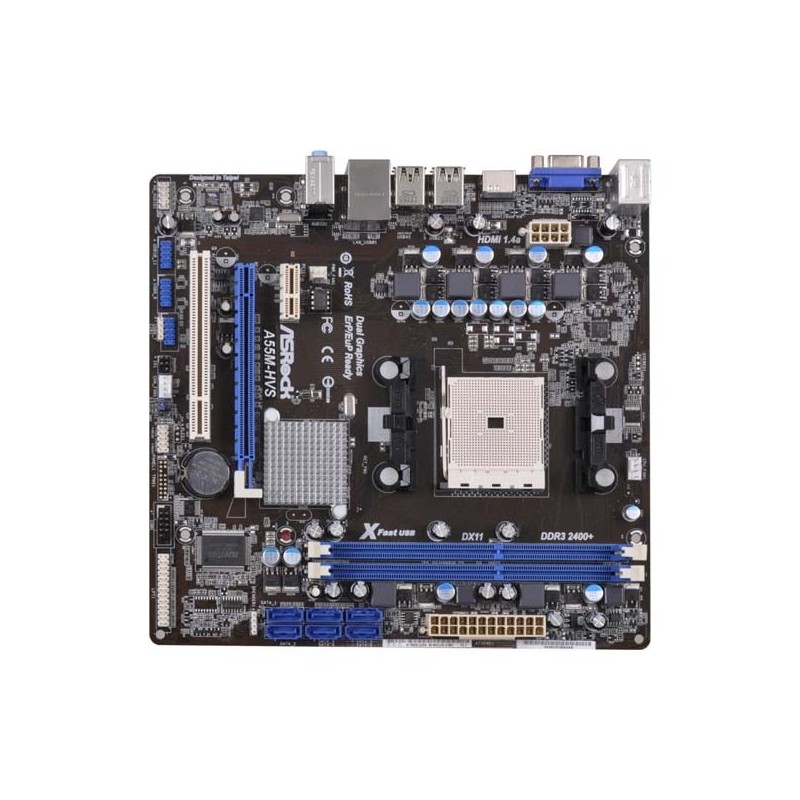

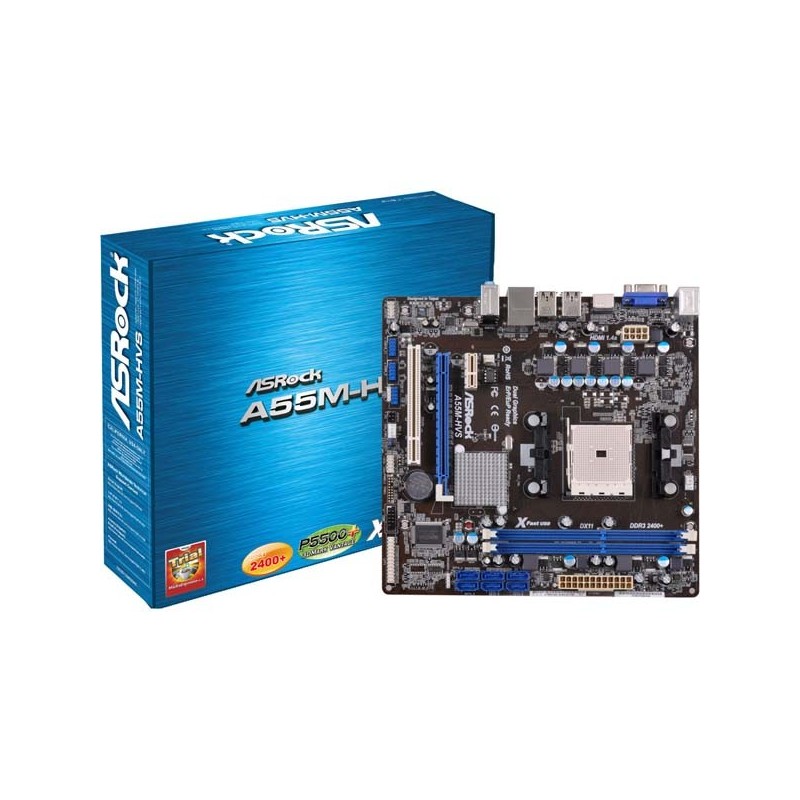

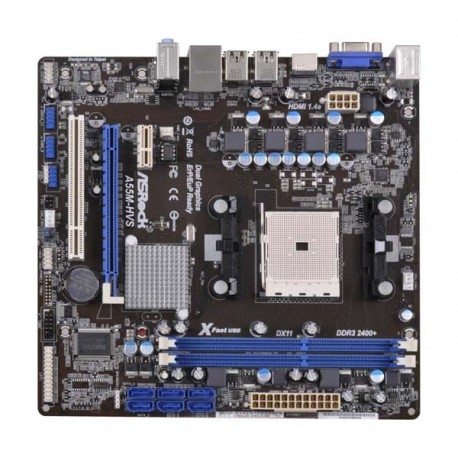

ASRock A55M-HVS AMD A55 FCH FM1 100W Processors DDR3

Spesifikasi produk Motherboard AMD ASRock A55M-HVS AMD A55 FCH FM1 100W Processors DDR3

General
CPU

• Support for Socket FM1 100W processors
• Supports AMD's Cool 'n' Quiet Technology
• UMILink GEN2

Chipset

• AMD A55 FCH (HudsonD2)

Memory

• Dual Channel DDR3 memory technology
• 2 x DDR3 DIMM slots
• Supports DDR3 2400+(OC)/1866/1600/1333/1066/800 nonECC, unbuffered memory
• Max. capacity of system memory: 16GB*

BIOS

• 32Mb AMI UEFI Legal BIOS with GUI support
• Supports "Plug and Play"
• ACPI 1.1 Compliance Wake Up Events
• Supports jumperfree
• SMBIOS 2.3.1 Support
• DRAM, VDDP, SB Voltage Multiadjustment

Audio, Video and Networking
Graphics

• Integrated AMD Radeon HD 65XX/64XX graphics in Llano APU
• DirectX 11, Pixel Shader 5.0
• Max. shared memory 512MB
• Two graphics output options: Support HDMI and DSub ports by independent display controllers
• Supports HDMI Technology with max. resolution up to 1920x1200 @ 60Hz
• Supports DSub with max. resolution up to 1920x1600 @ 60Hz
• Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required)
• Supports Bluray Stereoscopic 3D with HDMI
• Supports AMD Steady Video™: New video post processing capability for automatic jitter reduction on home/online video
• Supports HDCP function with HDMI port
• Supports Full HD 1080p Bluray (BD) / HDDVD playback with HDMI port

Audio

• 5.1 CH HD Audio (VIA® VT1705 Audio Codec)

LAN

• PCIE x1 Gigabit LAN 10/100/1000 Mb/s
• Realtek RTL8111E
• Supports WakeOnLAN
• Supports LAN Cable Detection
• Supports Energy Efficient Ethernet 802.3az
• Supports PXE

Expansion / Connectivity
Slots

• 1 x PCI Express 2.0 x16 slot
• 1 x PCI Express 2.0 x1 slot
• 1 x PCI slot
• Supports AMD Dual Graphics

Connector

• 6 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug functions
• 1 x IR header
• 1 x CIR header
• 1 x Print port header
• 1 x COM port header
• CPU/Chassis/Power FAN connector
• 24 pin ATX power connector
• 8 pin 12V power connector
• Front panel audio connector
• 3 x USB 2.0 headers (support 6 USB 2.0 ports)

Rear Panel I/OI/O Panel

• 1 x PS/2 Mouse Port
• 1 x PS/2 Keyboard Port
• 1 x DSub Port
• 1 x HDMI Port
• 6 x ReadytoUse USB 2.0 Ports
• 1 x RJ45 LAN Port with LED (ACT/LINK LED and SPEED LED)
• HD Audio Jack: Line in / Front Speaker / Microphone

Other Features / Miscellaneous
Unique Feature

• ASRock Extreme Tuning Utility (AXTU)
• ASRock Instant Boot
• ASRock Instant Flash
• ASRock APP Charger
• ASRock XFast USB
• ASRock XFast LAN
• ASRock XFast RAM
• Hybrid Booster:
• ASRock UCOP

Support CD

• Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial

Accessories

• Quick Installation Guide, Support CD, I/O Shield
• 2 x SATA Data Cables

Hardware Monitor

• CPU Temperature Sensing
• Chassis Temperature Sensing
• CPU/Chassis/Power Fan Tachometer
• CPU/Chassis Quiet Fan
• CPU/Chassis Fan MultiSpeed Control
• Voltage Monitoring: +12V, +5V, +3.3V, Vcore

Form Factor

• Micro ATX Form Factor: 8.9in x 8.5in, 22.6 cm x 21.6 cm
• Solid Capacitor for CPU Power

OS

• Microsoft® Windows® 8 / 8 64bit / 7 / 7 64bit / Vista™ / Vista™ 64bit / XP / XP 64bit compliant

Certifications

• FCC, CE, WHQL
• ErP/EuP Ready (ErP/EuP ready power supply is required)
