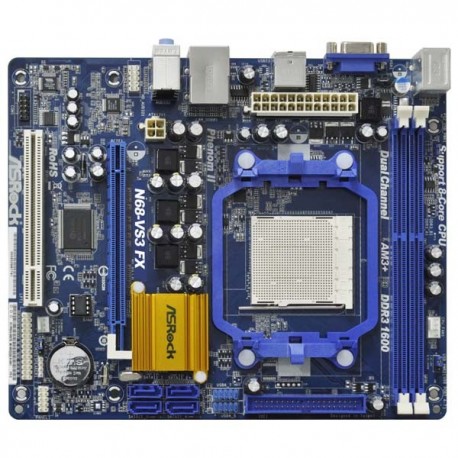

ASRock N68-VS3 FX AM3 Geforce 7025 DDR3

Spesifikasi produk Motherboard AMD ASRock N68-VS3 FX AM3 Geforce 7025 DDR3

General
CPU

• Support up to 95W Socket AM3+ processors
• Support up to 95W Socket AM3 processors: AMD Phenom™ II X6 / X4 / X3 / X2 (except 920 / 940) / Athlon II X4 / X3 / X2 / Sempron processors
• Supports 8Core CPU
• Supports UCC feature (Unlock CPU Core)
• Supports AMD's Cool 'n' Quiet Technology
• FSB 1000 MHz (2.0 GT/s)
• Supports Untied Overclocking Technology
• Supports HyperTransport Technology

Chipset

• NVIDIA® GeForce 7025 / nForce 630a

Memory

• Dual Channel DDR3 memory technology
• 2 x DDR3 DIMM slots
• Supports DDR3 1600/1333/1066/800 nonECC, unbuffered memory
• Max. capacity of system memory: 16GB*

BIOS

• 8Mb AMI Legal BIOS
• Supports "Plug and Play"
• ACPI 1.1 Compliance Wake Up Events
• Supports jumperfree
• SMBIOS 2.3.1 Support
• CPU, VCCM Voltage Multiadjustment

Audio, Video and Networking
Graphics

• Integrated NVIDIA® GeForce 7025 graphics
• DX9.0 VGA, Pixel Shader 3.0
• Max. shared memory 256MB
• Supports DSub with max. resolution up to 1920x1440 @ 60Hz

Audio

• 5.1 CH HD Audio (VIA® VT1705 Audio Codec)

LAN

• Realtek PHY RTL8201EL
• Speed: 10/100 Ethernet
• Supports WakeOnLAN
• Supports PXE

Expansion / Connectivity
Slots

• 1 x PCI Express x16 slot
• 1 x PCI slot

Connector

• 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 0+1, RAID 5 and JBOD), NCQ and Hot Plug functions
• 1 x ATA133 IDE connector (supports 2 x IDE devices)
• 1 x Print Port header
• 1 x COM port header
• CPU/Chassis FAN connector
• 24 pin ATX power connector
• 4 pin 12V power connector
• Front panel audio connector
• 2 x USB 2.0 headers (support 4 USB 2.0 ports)

Rear Panel I/OI/O Panel

• 1 x PS/2 Mouse Port
• 1 x PS/2 Keyboard Port
• 1 x VGA Port
• 4 x ReadytoUse USB 2.0 Ports
• 1 x RJ45 LAN Port with LED (ACT/LINK LED and SPEED LED)
• HD Audio Jack: Line in / Front Speaker / Microphone

Other Features / Miscellaneous
Unique Feature

• ASRock OC Tuner
• ASRock Intelligent Energy Saver
• ASRock Instant Boot
• ASRock Instant Flash
• ASRock OC DNA
• ASRock APP Charger
• ASRock XFast USB
• ASRock XFast LAN
• ASRock XFast RAM
• Hybrid Booster:
• CPU Frequency Stepless Control
• ASRock UCOP
• Boot Failure Guard (B.F.G.)

Support CD

• Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial

Accessories

• Quick Installation Guide, Support CD, I/O Shield
• 2 x SATA Data Cables

Hardware Monitor

• CPU Temperature Sensing
• Chassis Temperature Sensing
• CPU Fan Tachometer
• Chassis Fan Tachometer
• CPU Quiet Fan
• Voltage Monitoring: +12V, +5V, +3.3V, Vcore

Form Factor

• Micro ATX Form Factor: 8.5in x 7.0in, 21.6 cm x 17.8 cm

OS

• Microsoft® Windows® 7 / 7 64bit / Vista™ / Vista™ 64bit / XP / XP 64bit compliant

Certifications

• FCC, CE, WHQL
