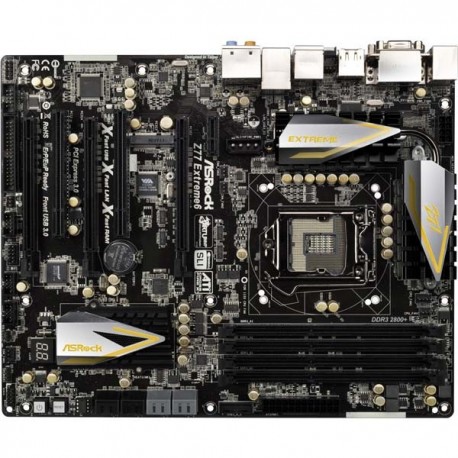

ASRock Z77 Extreme6 GEN3 LGA1155 Intel Z77. DDR3 USB3 SATA3

Spesifikasi produk Motherboard Intel ASRock Z77 Extreme6 GEN3 LGA1155 Intel Z77. DDR3 USB3 SATA3

General
CPU

• Supports 3rd and 2nd Generation Intel® Core™ i7 / i5 / i3 / Xeon® / Pentium® / Celeron® in LGA1155 Package
• Digi Power Design
• 8 + 4 Power Phase Design
• Supports Intel® Turbo Boost 2.0 Technology
• Supports Intel® KSeries unlocked CPU
• Supports HyperThreading Technology

Chipset

• Intel® Z77
• Supports Intel® Rapid Start Technology and Smart Connect Technology with Intel® Ivy Bridge CPU
• Memory
• Dual Channel DDR3 memory technology
• 4 x DDR3 DIMM slots
• Supports DDR3 2800+(OC)/2400(OC)/2133(OC)/1866(OC)/1600/1333/1066 nonECC, unbuffered

memory

• Max. capacity of system memory: 32GB*
• Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2

BIOS

• 64Mb AMI UEFI Legal BIOS with GUI support
• Supports "Plug and Play"
• ACPI 1.1 Compliance Wake Up Events
• Supports jumperfree
• SMBIOS 2.3.1 Support
• CPU Core, IGPU, DRAM, 1.8V PLL, VTT, VCCSA Voltage Multiadjustment

Audio, Video and Networking
Graphics

• Supports Intel® HD Graphics Builtin Visuals : Intel® Quick Sync Video 2.0, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 2500/4000 with Intel® Ivy Bridge CPU
• Supports Intel® HD Graphics Builtin Visuals : Intel® Quick Sync Video, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® HD Graphics 2000/3000, Intel® Advanced Vector Extensions (AVX) with Intel® Sandy Bridge CPU
• Pixel Shader 5.0, DirectX 11 with Intel® Ivy Bridge CPU. Pixel Shader 4.1, DirectX 10.1 with Intel® Sandy Bridge CPU
• Max. shared memory 1760MB with Intel® Ivy Bridge CPU. Max. shared memory 1759MB with Intel® Sandy Bridge CPU
• Four graphics output options: DSub, DVID, HDMI and DisplayPort
• Supports HDMI Technology with max. resolution up to 1920x1200 @ 60Hz
• Supports DVI with max. resolution up to 1920x1200 @ 60Hz
• Supports DSub with max. resolution up to 2048x1536 @ 75Hz
• Supports DisplayPort with max. resolution up to 2560x1600 @ 60Hz
• Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required)
• Supports HDCP function with DVI, HDMI and DisplayPort ports
• Supports Full HD 1080p Bluray (BD) / HDDVD playback with DVI, HDMI and DisplayPort ports

Audio

• 7.1 CH HD Audio with Content Protection (Realtek ALC898 Audio Codec)
• Premium Bluray audio support

LAN

• PCIE x1 Gigabit LAN 10/100/1000 Mb/s
• Broadcom BCM57781
• Supports WakeOnLAN
• Supports Energy Efficient Ethernet 802.3az
• Supports PXE

Expansion / Connectivity
Slots

• 2 x PCI Express 3.0 x16 slots (PCIE2/PCIE4: single at x16 (PCIE2) / x8 (PCIE4) or dual at x8/x8 mode)
• 1 x PCI Express 2.0 x16 slot (PCIE5: x4 mode)
• 1 x PCI Express 2.0 x1 slot
• 1 x miniPCI Express slot
• 2 x PCI slots
• Supports AMD Quad CrossFireX™, 3Way CrossFireX™ and CrossFireX™
• Supports NVIDIA® Quad SLI™ and SLI™

SATA3

• 2 x SATA3 6.0 Gb/s connectors by Intel® Z77, support RAID (RAID 0, RAID 1, RAID 10, RAID 5, Intel® Rapid Storage and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug functions
• 2 x SATA3 6.0 Gb/s connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug functions (SATA3_A2 connector is shared with eSATA3 port)

USB 3.0

• 2 x Rear USB 3.0 ports by Intel® Z77, support USB 1.0/2.0/3.0 up to 5Gb/s
• 2 x Rear USB 3.0 ports by Etron EJ168A, support USB 1.0/2.0/3.0 up to 5Gb/s
• 1 x Front USB 3.0 header by Intel® Z77 (supports 2 USB 3.0 ports), supports USB 1.0/2.0/3.0 up to 5Gb/s

Connector

• 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug functions
• 4 x SATA3 6.0 Gb/s connectors
• 1 x Floppy connector
• 1 x IR header
• 1 x CIR header
• 1 x COM port header
• 1 x HDMI_SPDIF header
• 1 x IEEE 1394 header
• 1 x Power LED header
• 2 x CPU Fan connectors (1 x 4pin, 1 x 3pin)
• 3 x Chassis Fan connectors (1 x 4pin, 2 x 3pin)
• 1 x Power Fan connector (3pin)
• 24 pin ATX power connector
• 8 pin 12V power connector SLI/XFire power connector
• Front panel audio connector
• 3 x USB 2.0 headers (support 6 USB 2.0 ports)
• 1 x USB 3.0 header (supports 2 USB 3.0 ports)
• 1 x Dr. Debug with LED*
• 1 x Power Switch with LED
• 1 x Reset Switch with LED
• 1 x Clear CMOS Switch with LED

Rear Panel I/OI/O Panel

• 1 x PS/2 Mouse/Keyboard Port
• 1 x DSub Port
• 1 x DVID Port
• 1 x HDMI Port
• 1 x DisplayPort
• 1 x Optical SPDIF Out Port
• 2 x ReadytoUse USB 2.0 Ports
• 1 x eSATA3 Connector
• 4 x ReadytoUse USB 3.0 Ports
• 1 x RJ45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
• 1 x IEEE 1394 Port
• 1 x Clear CMOS Switch with LED
• HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Other Features / Miscellaneous
Unique Feature

• ASRock Extreme Tuning Utility (AXTU)
• ASRock Instant Boot
• ASRock Instant Flash
• ASRock APP Charger
• ASRock XFast USB
• ASRock XFast LAN
• ASRock XFast RAM
• ASRock Crashless BIOS
• ASRock OMG (Online Management Guard)
• ASRock Internet Flash
• ASRock Dehumidifier Function
• ASRock NoK OC Technology
• Lucid Virtu Universal MVP
• Hybrid Booster:
• CPU Frequency Stepless Control
• ASRock UCOP
• Boot Failure Guard (B.F.G.)
• Combo Cooler Option (C.C.O.)
• Good Night LED

Support CD

• Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite  Trial

Accessories

• 1 x ASRock SLI_Bridge_2S Card
• Quick Installation Guide, Support CD, I/O Shield
• 4 x SATA Data Cables
• 1 x Front USB 3.0 Panel
• 4 x HDD Screws
• 6 x Chassis Screws
• 1 x Rear USB 3.0 Bracket

Hardware Monitor

• CPU Temperature Sensing
• Chassis Temperature Sensing
• CPU/Chassis/Power Fan Tachometer
• CPU/Chassis Quiet Fan (Allow Chassis Fan Speed AutoAdjust by CPU Temperature)
• CPU/Chassis Fan MultiSpeed Control
• Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

Form Factor

• ATX Form Factor: 12.0in x 9.6in, 30.5 cm x 24.4 cm
• Premium Gold Capacitor design (100% Japan made high quality conductive polymer capacitors)

OS

• Microsoft® Windows® 8.1 32bit / 8.1 64bit / 8 32bit / 8 64bit / 7 32bit / 7 64bit / Vista™ 32bit / Vista™ 64bit / XP 32bit / XP 64bit

Certifications

• FCC, CE, WHQL
• ErP/EuP Ready (ErP/EuP ready power supply is required)
