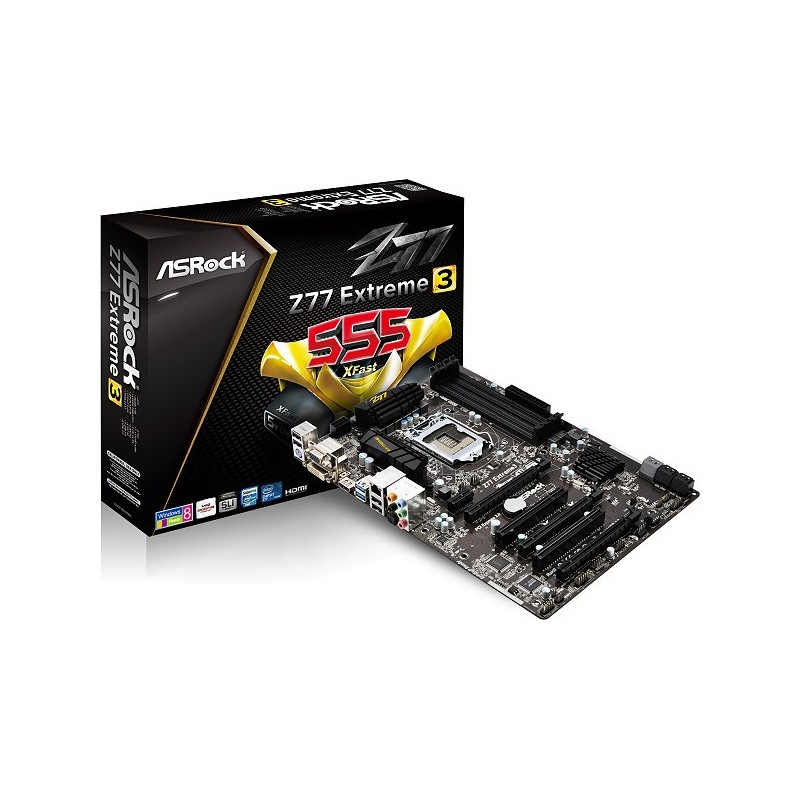

ASRock FATAL1TY Z77 Extreme3

Spesifikasi produk Motherboard Intel ASRock Z77

Feature :

• • • ASRock DuraCap
    • Digi Power Design, 8 + 3 Power Phase Design
    • Supports Dual Channel DDR3 2800+(OC)
    • 2 x PCIe 3.0 x16 Slots, Supports AMD Quad CrossFireX™,
    • CrossFireX™ and NVIDIA®Quad SLI™, SLI™
    • Multi VGA Output Options : DVI-D, D-Sub, HDMI
    • 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
    • Supports ASRock XFast 555, Dehumidifier, Interactive UEFI, OMG, Internet Flash
    • Supports Intel® Smart Connect, Intel® Rapid Start, Lucid Virtu Universal MVP
    • Free Bundle : CyberLink MediaEspresso 6.5 Trial, Google Chrome and Toolbar

Spesifikasi :

CPU

• • • • • Supports 3rd and 2nd Generation Intel® Core™ i7 / i5 / i3 /
          • • • • Xeon® / Pentium® / Celeron® in LGA1155 Package
                • Digi Power Design
                • 8 + 3 Power Phase Design
                • Supports Intel® Turbo Boost 2.0 Technology
                • Supports Intel® K-Series unlocked CPU
                • Supports Hyper-Threading Technology

Chipset

• • • • • • • • • Intel® Z77
                • Supports Intel® Rapid Start Technology and Smart Connect Technology
                • Intel® Rapid Start Technology and Smart Connect Technology are only supported under Windows® 7 OS or later versions.

Memory

• • • • • • • • • Dual Channel DDR3 memory technology
                • 4 x DDR3 DIMM slots
                • Supports DDR3
                • 2800+(OC)/2400(OC)/2133(OC)/1866(OC)/1600/1333/1066 non-ECC, un-buffered memory
                • Max. capacity of system memory: 32GB*
                • Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2
                • Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage
                • under Windows® 32-bit OS. For Windows® 64-bit OS with
                • 64-bit CPU, there is no such limitation.

BIOS

• • • • • • • • • 64Mb AMI UEFI Legal BIOS with GUI support
                • Supports "Plug and Play"
                • ACPI 1.1 Compliance Wake Up Events
                • Supports jumperfree
                • SMBIOS 2.3.1 Support
                • CPU Core, IGPU, DRAM, 1.8V PLL, VTT, VCCSA Voltage Multi-adjustment

Graphics

• • • • • • • • • Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video 2.0, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 2500/4000 with Intel® Ivy Bridge CPU
                • Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® HD Graphics 2000/3000, Intel® Advanced Vector Extensions (AVX) with Intel® Sandy Bridge CPU
                • Pixel Shader 5.0, DirectX 11 with Intel® Ivy Bridge CPU. Pixel Shader 4.1, DirectX 10.1 with Intel® Sandy Bridge CPU.
                • Max. shared memory 1760MB with Intel® Ivy Bridge CPU. Max. shared memory 1759MB with Intel® Sandy Bridge CPU.
                • Multi VGA Output options: D-Sub, DVI-D and HDMI
                • Supports HDMI Technology with max. resolution up to 1920x1200 @ 60Hz
                • Supports DVI with max. resolution up to 1920x1200 @ 60Hz
                • Supports D-Sub with max. resolution up to 2048x1536 @ 75Hz
                • Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required)
                • Supports HDCP function with DVI and HDMI ports
                • Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI and HDMI ports
                • Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® Vista™ and Windows® 7.
                • Intel® InTru™ 3D is only supported under Windows® 7 and Windows® 7 x64.

Audio

• • • • • • • • • 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
                • Premium Blu-ray audio support

LAN

• • • • • • • • • PCIE x1 Gigabit LAN 10/100/1000 Mb/s
                • Realtek RTL8111E
                • Supports Wake-On-LAN
                • Supports LAN Cable Detection
                • Supports Energy Efficient Ethernet 802.3az
                • Supports PXE

Slots

• • • • • • • • • PCIE x1 Gigabit LAN 10/100/1000 Mb/s
                • Realtek RTL8111E
                • Supports Wake-On-LAN
                • Supports LAN Cable Detection
                • Supports Energy Efficient Ethernet 802.3az
                • Supports PXE

SATA3

• • • • • • • • • 2 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug functions

USB 3.0

• • • • • • • • • 2 x Rear USB 3.0 ports, support USB 1.0/2.0/3.0 up to 5Gb/s
                • 1 x Front USB 3.0 header (supports 2 USB 3.0 ports), supports USB 1.0/2.0/3.0 up to 5Gb/s]

Conector

• • • • • • • • • 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug functions
                • 2 x SATA3 6.0 Gb/s connectors
                • 1 x IR header
                • 1 x CIR header
                • 1 x COM port header
                • 1 x HDMI_SPDIF header
                • 1 x Power LED header
                • 2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin)
                • 3 x Chassis Fan connectors (1 x 4-pin, 2 x 3-pin)
                • 1 x Power Fan connector (3-pin)
                • 24 pin ATX power connector
                • 8 pin 12V power connector
                • Front panel audio connector
                • 2 x USB 2.0 headers (support 4 USB 2.0 ports)
                • 1 x USB 3.0 header (supports 2 USB 3.0 ports)

Real Panel /IO

• • • • • • • • • I/O Panel
                • 1 x PS/2 Keyboard Port
                • 1 x D-Sub Port
                • 1 x DVI-D Port
                • 1 x HDMI Port
                • 1 x Optical SPDIF Out Port
                • 4 x Ready-to-Use USB 2.0 Ports
                • 2 x Ready-to-Use USB 3.0 Ports
                • 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
                • HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Support CD

• • • • • • • • • Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink
                • MediaEspresso 6.5 Trial, Google Chrome Browser and Toolbar

Accessories

• • • • • • • • • 1 x ASRock SLI_Bridge_2S Card
                • Quick Installation Guide, Support CD, I/O Shield
                • 2 x SATA Data Cables

Hardware Monitor

• • • • • • • • • CPU Temperature Sensing
                • Chassis Temperature Sensing
                • CPU/Chassis/Power Fan Tachometer
                • CPU/Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
                • CPU/Chassis Fan Multi-Speed Control
                • Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

Form Facor

• • • • • • • • • ATX Form Factor
                • ASRock DuraCap (2.5 x longer life time) (100% Japan-made high-quality Conductive Polymer Capacitors)

OS

• • • • • • • • • Microsoft® Windows® 8 / 8 64-bit / 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant

Certificate

• • • • • • • • • FCC, CE, WHQL
                • ErP/EuP Ready (ErP/EuP ready power supply is required)
