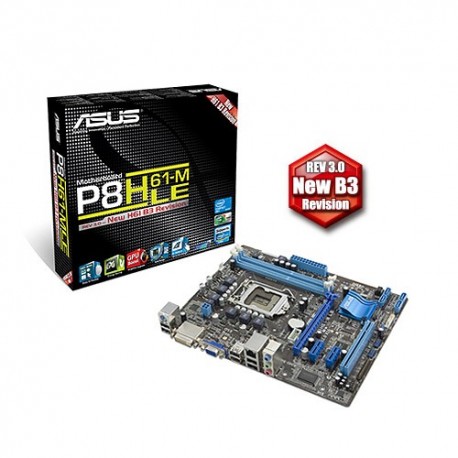

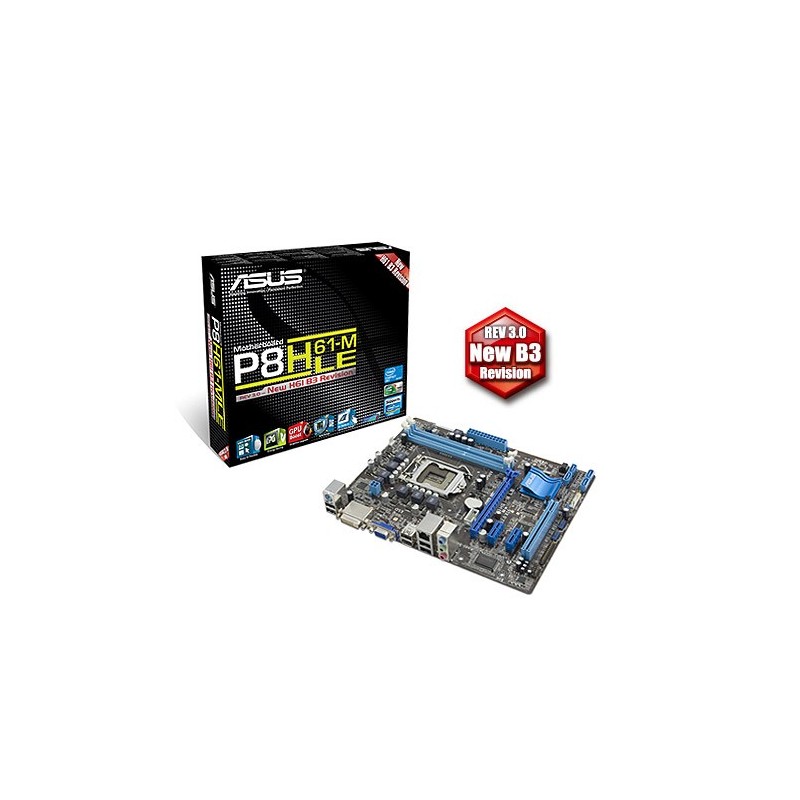

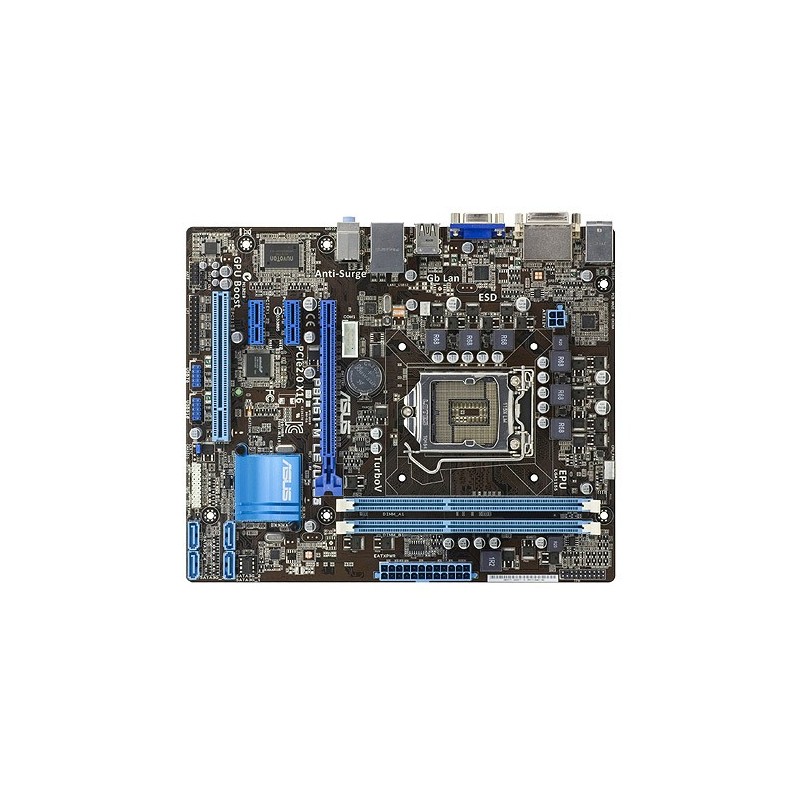

ASUS P8H61-M LE
Kode Produk: 13
Asus DiscontinuedProduk baru
Part No: KG13
- GPU Boost - Instant iGPU Level Up!
- UEFI BIOS - EZ Mode - Flexible & Easy BIOS Interface
- AI Suite II - One-stop Access to Innovative ASUS Features
- EPU - System Level Energy Saving
Info lainnya
Specifications
| CPU | Intel® Socket 1155 for 2nd Generation Core™ i7/Core™ i5/Core™ i3 Processors Supports Intel® 32 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. * Refer to www.asus.com for CPU support list |
| Chipset | Intel® H61(B3) |
| Memory | 2 x DIMM, Max. 16GB, DDR3 1333/1066 Hz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture * The maximum 16GB memory capacity can be supported with 8GB or above DIMMs. ASUS will update the memory QVL once the DIMMs are available in the market. * Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists). * Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard. |
| Graphic | Integrated Graphics Processor Multi-VGA output support : DVI/RGB ports - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with max. resolution 2048 x 1536 @ 75 Hz Supports DirectX 10.1 |
| Expansion Slots | 1 x PCIe 2.0 x16 2 x PCIe 2.0 x1 1 x PCI |
| Storage | Intel® H61(B3) chipset : 4 x SATA 3Gb/s port(s), blue |
| LAN | Realtek® 8111E , 1 x Gigabit LAN Controller(s) |
| Audio | Realtek® ALC 887 8-Channel High Definition Audio CODEC *1 |
| USB Ports | Intel® H61(B3) chipset : 10 x USB 2.0 port(s) (6 at back panel, black, 4 at mid-board) |
| Special Features | ASUS EPU : - EPU TurboV GPU Boost ASUS Exclusive Features : - AI Suite II - Anti-Surge - ESD Guards - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface ASUS Quiet Thermal Solution : - ASUS Fan Xpert ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS MyLogo 2 |
| Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s) 1 x DVI 1 x D-Sub 1 x LAN (RJ45) port(s) 6 x USB 2.0 3 x Audio jack(s) |
| Internal I/O Ports | 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x COM port(s) connector(s) 4 x SATA 3Gb/s connector(s) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x parallel port connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) |
| Accessories | User's manual I/O Shield 2 x SATA 3Gb/s cable(s) |
| BIOS | 32 Mb Flash ROM EFI BIOS, PnP, DMI v2.0, WfM 2.0, ACPI v2.0a, SM BIOS v2.6, Multi-language BIOS |
| Form Factor | uATX Form Factor 9.6 inch x 8.0 inch ( 24.4 cm x 20.3 cm ) |
| Note | *1: Use a chassis with HD audio module in the front panel to support an 8-channel audio output. |
