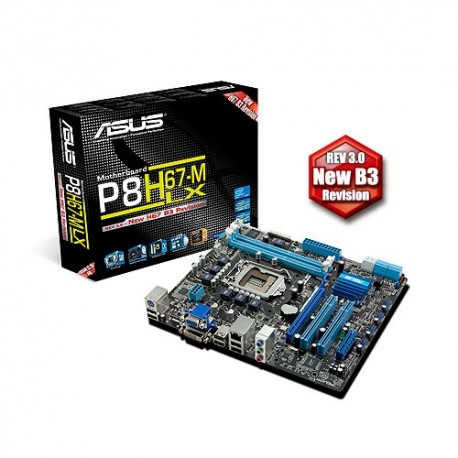

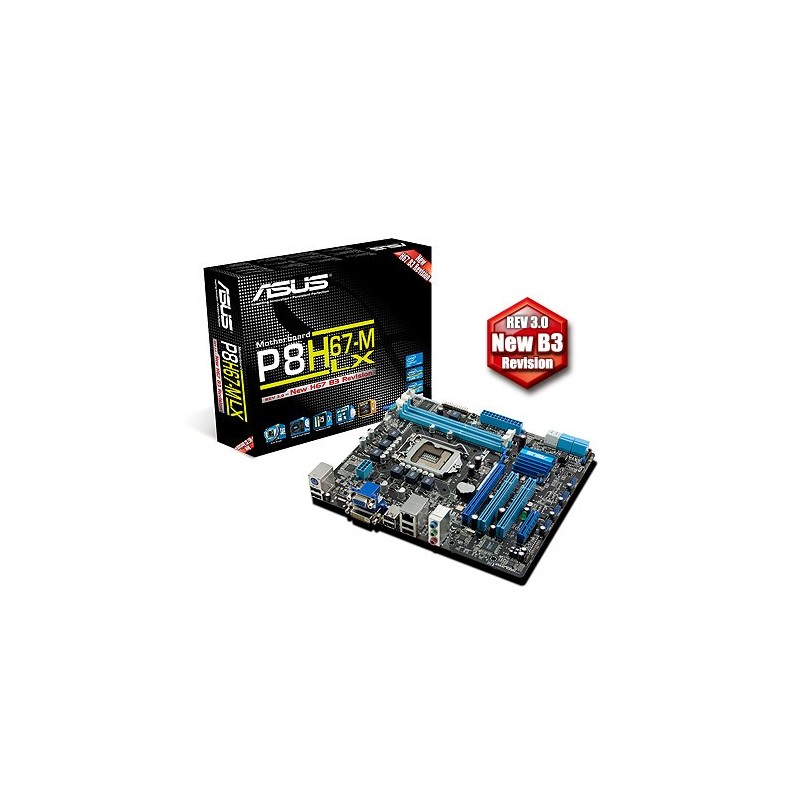

ASUS P8H67-MLX
Kode Produk: 136
Asus DiscontinuedProduk baru
Part No: KG136
Motherboard ini mendukung prosesor Intel ® prosesor Sandy Bridge dalam paket LGA1155, dengan memori dan PCI Express controller terintegrasi untuk mendukung 2-channel (2 DIMM) memori DDR3 dan 16 jalur PCI Express 2.0. Hal ini memberikan performa yang hebat grafis. Intel ® prosesor Sandy Bridge adalah salah satu CPU paling kuat dan hemat energi di dunia...(ajz)
Info lainnya
Specifications
| CPU | Intel® Socket 1155 for 2nd Generation Core™ i7/Core™ i5/Core™ i3 Processors Supports Intel® 32 nm CPU |
| Chipset | Intel® H67(B3) |
| Memory | 2 x DIMM, Max. 16GB, DDR3 1333/1066 Hz Memory Dual Channel Memory Architecture * According to Intel® SPEC, the Max. 32GB memory capacity can be supported with DIMMs of 8GB (or above). ASUS will update QVL once the DIMMs are available on the market. * Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists). * Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard. |
| Graphic | Integrated Graphics Processor Multi-VGA output support : DVI/RGB ports - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with max. resolution 2048 x 1536 @ 75 Hz |
| Expansion Slots | 1 x PCIe 2.0 x16 1 x PCIe 2.0 x4 2 x PCI |
| Storage | Intel® H67(B3) chipset : 2 x SATA 6Gb/s port(s), gray 4 x SATA 3Gb/s port(s), blue Support Raid 0, 1, 5, 10 |
| LAN | Realtek® 8112L, 1 x Gigabit LAN Controller(s) |
| Audio | Realtek® ALC 887 8-Channel High Definition Audio CODEC *1 - Supports : Multi-streaming |
| USB Ports | Built-in Controller : 14 x USB 2.0 port(s) (6 at back panel, black, 8 at mid-board) |
| Special Features | GPU Boost ASUS Exclusive Features : - MemOK! - Anti-Surge ASUS Quiet Thermal Solution : - ASUS Q-Fan 2 ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS MyLogo 2 |
| Back I/O Ports | 1 x PS/2 mouse (green) 1 x DVI 1 x D-Sub 1 x LAN (RJ45) port(s) 6 x USB 2.0 3 x Audio jack(s) |
| Internal I/O Ports | 4 x USB 2.0 connector(s) support(s) additional 8 USB 2.0 port(s) 1 x COM port(s) connector(s) 2 x SATA 6Gb/s connector(s) 4 x SATA 3Gb/s connector(s) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x parallel port connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) |
| Accessories | User's manual I/O Shield 1 x SATA 3Gb/s cable(s) 1 x SATA 6Gb/s cable(s) |
| BIOS | 32 Mb Flash ROM , AMI BIOS, PnP, DMI v2.0, WfM2.0, SMBIOS v2.5, ACPI v2.0a |
| Manageability | WOL, PXE, PME Wake Up, WOR by Ring |
| Support Disc | Drivers ASUS PC Probe II Anti-virus software (OEM version) ASUS Update |
| Form Factor | uATX Form Factor 9.6 inch x 8.4 inch ( 24.4 cm x 21.3 cm ) |
