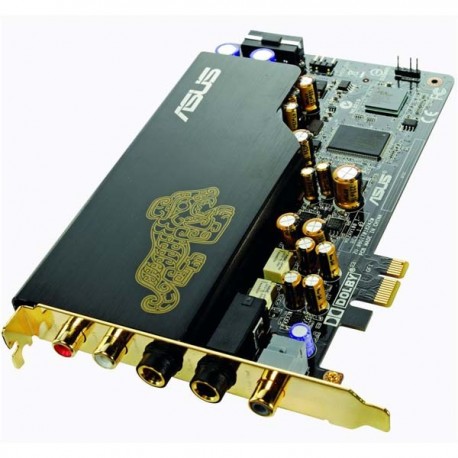

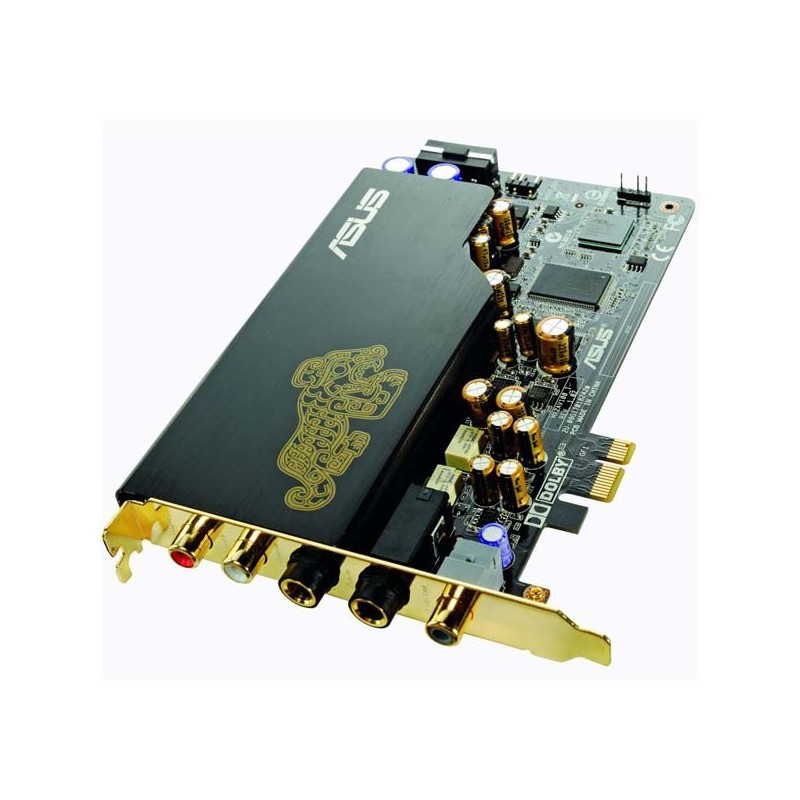

Asus XONAR ESSENCE STX 2

Spesifikasi produk Sound Card Asus XONAR ESSENCE STX 2

Audio Interface

• PCI Express

Audio Performance
Output Signal-to-Noise Ratio (A-Weighted) (Front-out) :

• 124 dB

Output Signal-to-Noise Ratio (A-Weighted) (Headphone-out) :

• 120 dB

Input Signal-to-Noise Ratio (A-Weighted) :

• 118 dB

Output THD+N at 1kHz (Front-out) :

• >0.0003 %(-110 dB)

Output THD+N at 1kHz (Headphone-out) :

• >0.001 %(-100 dB)

Frequency Response (-3dB, 16bit/44.1KHz input) :

• 10 Hz to 90 KHz

Output/Input Full-Scale Voltage :

• Line output (RCA, 3.5) : 2 Vrms (5.65 Vp-p)
• Headphone output : 7 Vrms ( Vp-p)

Chipset

• Audio Processor :ASUS AV100 High-Definition Sound Processor (Max. 192KHz/24bit)

Digital-to-analog Converter(DAC)

• TI Bur-Brown PCM1792A

Sample Rate and Resolution
Analog Playback Sample Rate and Resolution :

• 44.1K/48K/96K/192KHz @ 16bit/24bit

Analog Recording Sample Rate and Resolution :

• 44.1K/48K/96K/192KHz @ 16bit/24bit

S/PDIF Digital Output :

• 44.1K/48K/96K/192KHz @ 16bit/24bit

ASIO Driver Support :

• 44.1K/48K/88.2K/96K/176.4K/192KHz @ 16bit/24bit

Connectivity
Analog Output

• 1 x 6.3 mm jack (1/4") Headphone out
• 8 x RCA (Un-Balanced)

Analog Input

• 1 x 6.3 mm jack (1/4") (Line-in/ Mic-in combo)

Digital

• 1 x S/PDIF out (1 x Coaxial)
• 1 x Front-Panel Header

Special Features
Dolby® Technologies : Dolby® Digital Live/Dolby® Headphone /Dolby® Virtual Speaker /Dolby® Pro-Logic II
Operating System

• Windows® 8.1 , 32bit/64bit
• Windows® 8 , 32bit/64bit
• Windows® 7 , 32bit/64bit
• Windows® XP , 32bit/64bit

Accessories

• Op-amp swap kit x 1
• 3.5mm-to-RCA cable x 1
• 6.3mm-to-3.5mm adapter x 1
• S/PDIF adapter x 1
• Driver CD x 1
• Quick start guide x 1

Dimensions

• 168 x 107 mm ( L x W )

Note

• Op-amp swap kit content:
• 1 x Needle-nose pliers
• 2 x LME49720
• 1 x MUSES8820
