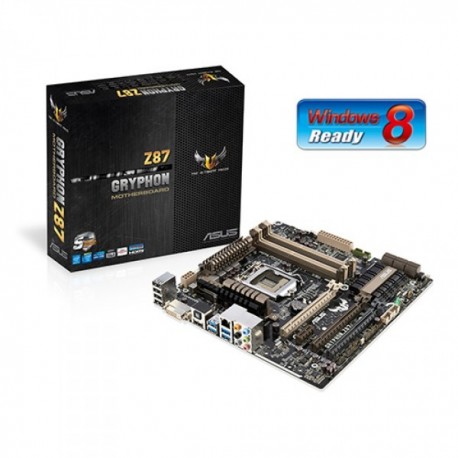

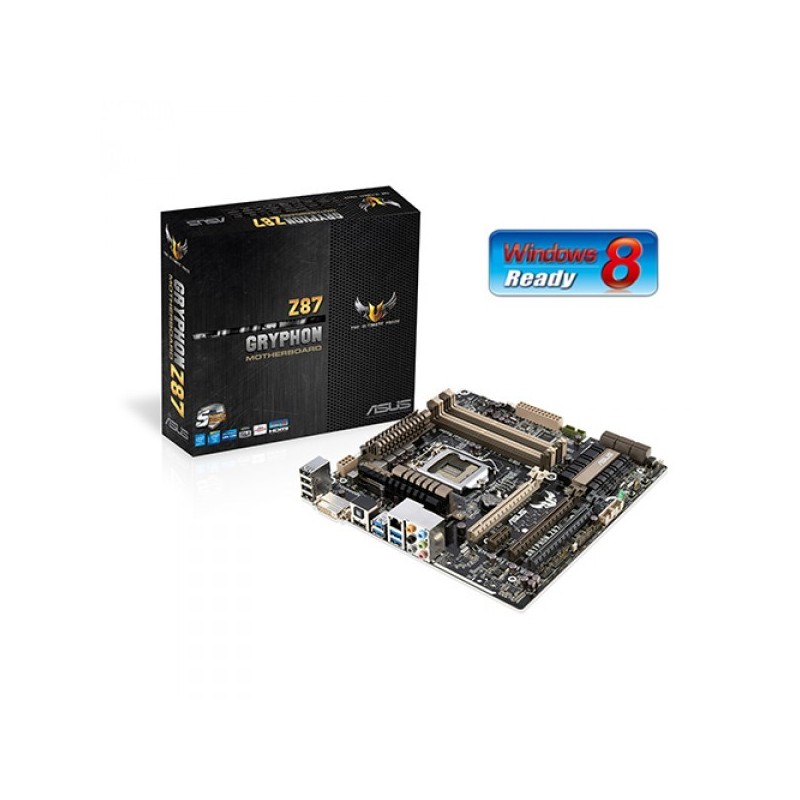

ASUS Gryphon Z87 (LGA1150, Intel Z87, DDR3)

Spesifikasi ASUS Gryphon Z87 (LGA1150, Intel Z87, DDR3)

CPU

• Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
• Supports Intel® 22 nm CPU
• Supports Intel® Turbo Boost Technology 2.0

Chipset

• Intel® Z87

Memory

• 4 x DIMM, Max. 32GB, DDR3 1866/1600/1333 MHz Non-ECC, Un-buffered Memory
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)

Graphic

• Integrated Graphics Processor
• Multi-VGA output support : HDMI/DVI ports
• Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
• Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
• Maximum shared memory of 1024 MB
• Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

Multi-GPU Support

• Supports NVIDIA® Quad-GPU SLI™ Technology
• Supports AMD Quad-GPU CrossFireX™ Technology

Expansion Slots

• 2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
• 1 x PCIe 2.0 x16 (x4 mode, black)
• 1 x PCIe 2.0 x1

Storage

Intel® Z87 chipset :

• 6 x SATA 6Gb/s port(s), brown
• Support Raid 0, 1, 5, 10
• Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology

LAN

• Intel® I217V, 1 x Gigabit LAN Controller(s)

Audio

• Realtek® ALC892 8-Channel High Definition Audio CODEC
• Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking

Audio Feature :

• Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
• Optical S/PDIF out port(s) at back panel
• BD Audio Layer Content Protection

USB Ports
Intel® Z87 chipset :

• 6 x USB 3.0/2.0 port(s) (4 at back panel, blue, 2 at mid-board)

Intel® Z87 chipset :

• 8 x USB 2.0/1.1 port(s) (4 at back panel, black, 4 at mid-board)

Special Features

TUF ENGINE! Power Design :

• 8 +2 Digital Phase Power Design
• TUF Components (Alloy choke, Ti-Cap. & MOSFET; certified by military-standard)
• ASUS DIGI+ Power Control Utility

Ultimate COOL! Thermal Solution :

• TUF Thermal Radar 2

ASUS Exclusive Features :

• Remote GO!
• USB BIOS Flashback
• AI Suite 3
• Ai Charger
• USB Charger+
• ESD Guards
• Front Panel USB 3.0 Support
• ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
• Network iControl
• USB 3.0 Boost

ASUS EZ DIY :

• DirectKey
• Precision Tweaker 2
• ASUS O.C. Profile
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 2
• ASUS USB BIOS Flashback
• ASUS UEFI BIOS EZ Mode
• Multi-language BIOS

ASUS Q-Design :

• ASUS Q-Shield
• ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
• ASUS Q-Slot
• ASUS Q-DIMM
• ASUS Q-Connector

Operating System Support

• Windows® 8.1
• Windows® 8
• Windows® 7

Back I/O Ports

• 1 x DVI-D
• 1 x HDMI
• 1 x LAN (RJ45) port(s)
• 4 x USB 3.0 (blue)
• 4 x USB 2.0
• 1 x Optical S/PDIF out
• 6 x Audio jack(s)

Internal I/O Ports

• 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin, moss green)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 1 x TPM header
• 6 x SATA 6Gb/s connector(s)
• 1 x CPU Fan connector(s) (1 x 4 -pin)
• 1 x CPU OPT Fan connector(s) (1 x 4 -pin)
• 4 x Chassis Fan connector(s) (4 x 4 -pin)
• 1 x Assistant Fan connector(s) (1 x 3 -pin)
• 1 x S/PDIF out header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin ATX 12V Power connector(s)
• 1 x Front panel connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x DirectKey Button(s)
• 1 x DRCT header(s)
• 1 x MemOK! button(s)
• 3 x Thermal sensor connector(s)
• 1 x Clear CMOS jumper(s)
• 1 x USB BIOS Flashback button(s)

Accessories

• User's manual
• ASUS Q-Shield
• 4 x SATA 6Gb/s cable(s)
• 1 x SLI bridge(s)
• 1 x Q-connector(s) (2 in 1)
• 1 x TUF Certification card(s)
• 1 x TUF 5 Year Warranty manual(s) (by region)
• 1 x TUF Inside sticker(s)

BIOS

• 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.7, ACPI 5.0, Multi-language BIOS,
• ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions, and ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability

• WfM 2.0, DMI 2.7, WOL by PME, PXE

Support Disc

• Drivers
• ASUS Utilities
• ASUS/TUF CPU-Z
• Anti-virus software (OEM version)

Form Factor

• mATX Form Factor
• 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
