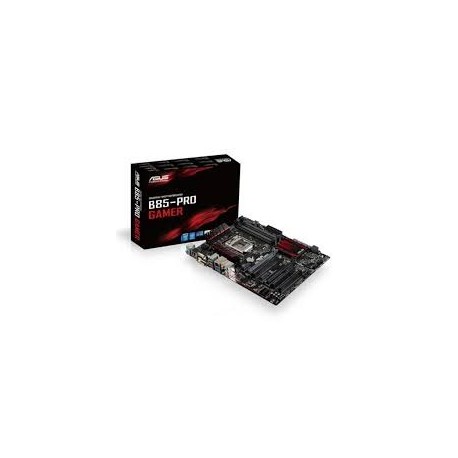

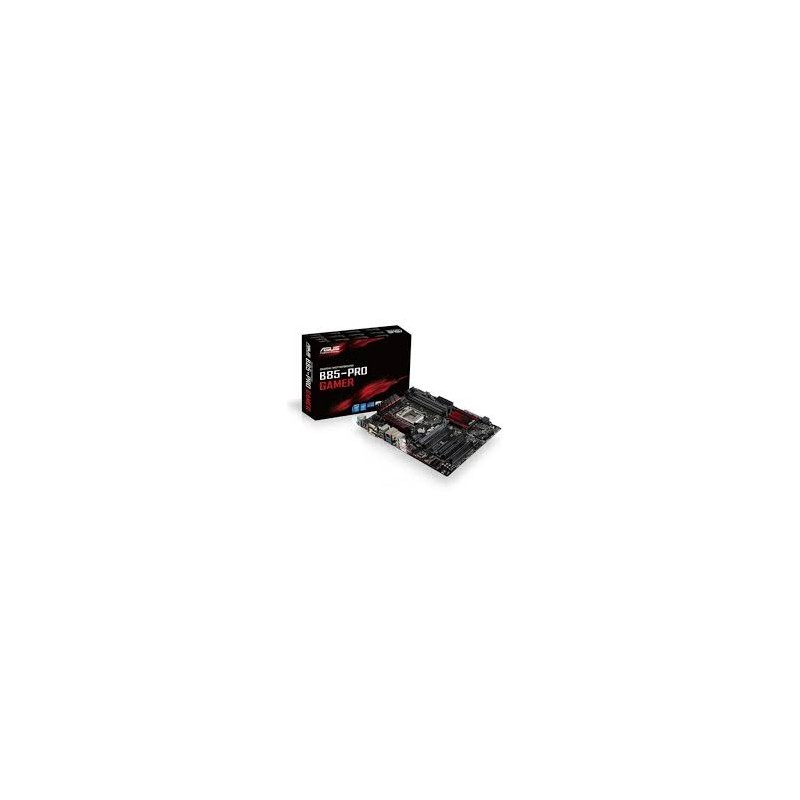

ASUS B85 Pro Gamer (LGA1150, Intel B85, DDR3)

Spesifikasi ASUS B85 Pro Gamer (LGA1150, Intel B85, DDR3)

CPU

• Intel® for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
• Supports Intel® 22 nm CPU
• Supports Intel® Turbo Boost Technology 2.0

Chipset

• Build in Intel® B85

Memory

• 4 x DIMM, Max. 32GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)

Graphic

• Integrated Graphics Processor
• Multi-VGA output support : HDMI/DVI/RGB ports
• Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
• Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
• Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
• Maximum shared memory of 1024 MB
• Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
• Supports up to 3 displays simultaneously

Multi-GPU Support

• Supports AMD Quad-GPU CrossFireX™ Technology

Expansion Slots

• 1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
• 1 x PCIe 2.0 x16 (x4 mode, black)
• 2 x PCIe 2.0 x1
• 3 x PCI

Storage

• Intel® B85 chipset : *1
• 4 x SATA 6Gb/s port(s), gray
• 2 x SATA 3Gb/s port(s), black
• Supports Intel® Rapid Start Technology, Intel® Smart Connect Technology

LAN

• Intel® I217V, 1 x Gigabit LAN Controller(s), featuring GAMEFIRST II

Audio

SupremeFX 8-Channel High Definition Audio CODEC

• Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
• High quality 115 dB SNR stereo playback output
• High-fidelity audio OP AMP(s)

Audio Feature :

• SupremeFX Shielding™ Technology
• ELNA premium audio capacitors
• Sonic Radar
• Optical S/PDIF out port(s) at back panel

USB Ports

Intel® B85 chipset :

• 4 x USB 3.0/2.0 port(s) (2 at back panel, , 2 at mid-board)

Intel® B85 chipset :

• 8 x USB 2.0 port(s) (4 at back panel, , 4 at mid-board)

ROG Exclusive Features

• GameFirst II

Special Features

ASUS Dual Intelligent Processors 2 with DIGI+ VRM :

• The tuning key perfectly consolidates ASUS-exclusive DIGI+ Power Control, TPU, EPU, and Fan Xpert 2 optimize the digital power setting, system performance, power saving and whole system cooling configuration

Gamer's Guardian:

• ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
• DRAM Overcurrent Protection
• 10K Black Metallic Capacitors
• Stainless Steel Back I/O
• DIGI+ VRM

ASUS TPU :

• Auto Tuning
• TurboV
• GPU Boost without switch

ASUS EPU :

• EPU

ASUS Exclusive Features :

• AI Suite 3
• Ai Charger
• ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
• USB 3.0 Boost
• Disk Unlocker

Back I/O Ports

• 1 x PS/2 keyboard (purple)
• 1 x PS/2 mouse (green)
• 1 x DVI
• 1 x D-Sub
• 1 x HDMI
• 1 x LAN (RJ45) port(s)
• 2 x USB 3.0
• 4 x USB 2.0
• 1 x Optical S/PDIF out
• 6 x Audio jack(s)

Internal I/O Ports

• 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 1 x TPM connector(s)
• 1 x COM port(s) connector(s)
• 4 x SATA 6Gb/s connector(s)
• 2 x SATA 3Gb/s connector(s)
• 1 x CPU Fan connector(s) (1 x 4 -pin)
• 1 x CPU OPT Fan connector(s) (1 x 4 -pin)
• 3 x Chassis Fan connector(s) (3 x 3 -pin)
• 1 x S/PDIF out header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin ATX 12V Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x System panel(s)
• 1 x Clear CMOS jumper(s)

Accessories

• User's manual
• ASUS Q-Shield
• 2 x SATA 6Gb/s cable(s)

BIOS

• 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 4.0a, Multi-language BIOS,ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions, and ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability

• WfM 2.0, DMI 2.0, WOL by PME, PXE

Support Disc

• Drivers
• ASUS Utilities
• EZ Update
• Anti-virus software (OEM version

Operating System

• Windows® 8.1 32/64-bit
• Windows® 8 32/64-bit
• Windows® 7 32/64-bit

Form Factor

• ATX Form Factor
• 12 inch x 9 inch ( 30.5 cm x 22.8 cm )

Note

• *1: These functions will work depending on the CPU installed.
