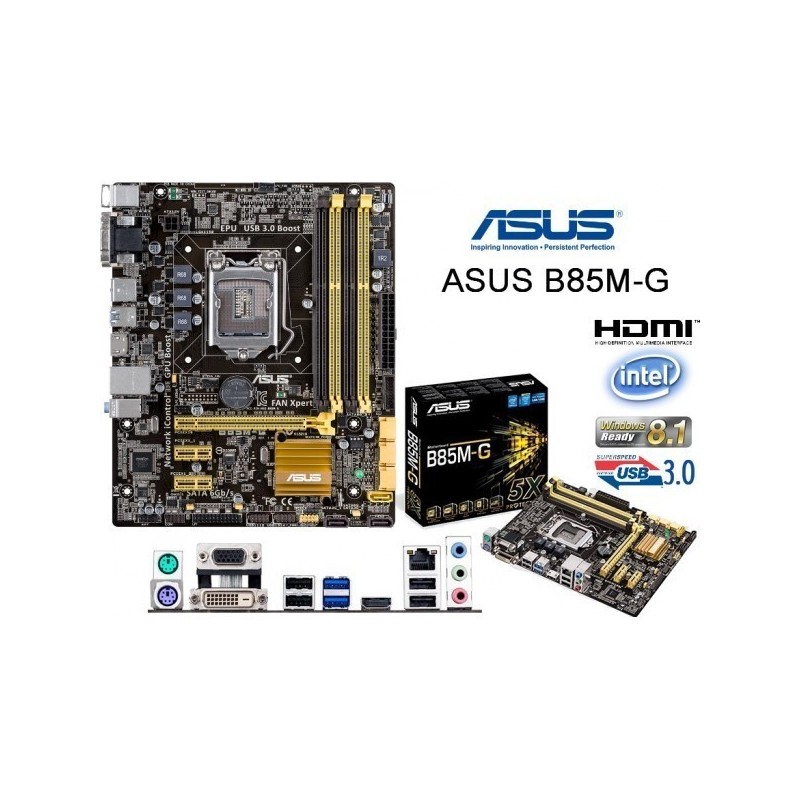

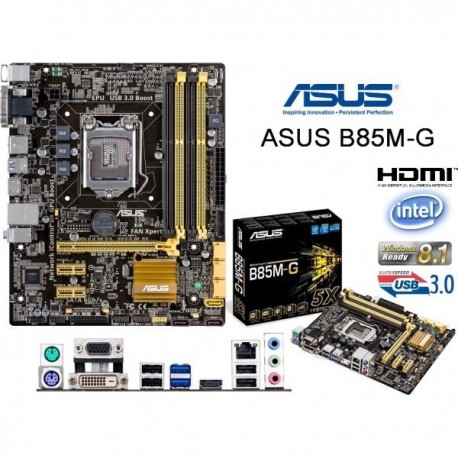

ASUS B85M-G (LGA1150, Intel B85, DDR3)

Spesifikasi ASUS B85M-G (LGA1150, Intel B85, DDR3)

CPU

• Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Celeron® dual-core/Pentium®/Celeron® Processors
• Supports Intel® 22 nm CPU
• Supports Intel® Turbo Boost Technology 2.0

Chipset

• Intel® B85

Memory

• 4 x DIMM, Max. 32GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory
• Dual Channel Memory Architecture

Graphic

• Integrated Graphics Processor
• Multi-VGA output support : HDMI/DVI/RGB ports
• Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
• Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
• Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
• Maximum shared memory of 1024 MB
• Supports up to 3 displays simultaneously

Expansion Slots

• 1 x PCIe 3.0/2.0 x16
• 2 x PCIe 2.0 x1

Storage
Intel® B85 chipset :

• 4 x SATA 6Gb/s port(s), yellow
• 2 x SATA 3Gb/s port(s), dark brown,

LAN

• Realtek® 8111G, 1 x Gigabit LAN Controller(s)

Audio

• Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC
• Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Anti-pop Function

USB Ports

Intel® B85 chipset :

• 4 x USB 3.0 port(s) (2 at back panel, , 2 at mid-board)

Intel® B85 chipset :

• 8 x USB 2.0 port(s) (4 at back panel, , 4 at mid-board)

Special Features

ASUS 5X Protection :

• ASUS DIGI+ VRM 3 Phase digital power design
• ASUS Enhanced DRAM Overcurrent Protection Short circuit damage prevention
• ASUS ESD Guards Enhanced ESD protection
• ASUS High-Quality 5K-Hour Solid Capacitors 2.5x long lifespan with excellent durability
• ASUS Stainless Steel Back I/O 3x more durable corrosion-resistant coating

ASUS EPU :

• EPU
• GPU Boost

ASUS Exclusive Features :

• AI Suite 3
• Ai Charger
• Anti-Surge
• ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
• Network iControl
• USB 3.0 Boost

ASUS Quiet Thermal Solution :

• ASUS Fan Xpert

ASUS EZ DIY :

• ASUS CrashFree BIOS 3
• ASUS EZ Flash 2
• ASUS MyLogo 2

ASUS Q-Design :

• ASUS Q-Slot
• ASUS Q-DIMM
• 100% All High-quality Conductive Polymer Capacitors

Operating System Support

• Windows® 8.1
• Windows® 8
• Windows® 7

Back I/O Ports

• 1 x PS/2 keyboard (purple)
• 1 x PS/2 mouse (green)
• 1 x DVI-D
• 1 x D-Sub
• 1 x HDMI
• 1 x LAN (RJ45) port(s)
• 2 x USB 3.0
• 4 x USB 2.0
• 3 x Audio jack(s)

Internal I/O Ports

• 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 1 x LPT header
• 1 x COM port(s) connector(s)
• 4 x SATA 6Gb/s connector(s)
• 2 x SATA 3Gb/s connector(s)
• 1 x CPU Fan connector(s)
• 1 x Chassis Fan connector(s)
• 1 x S/PDIF out header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 4-pin ATX 12V Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x Internal speaker connector(s)
• 1 x System panel(s)
• 1 x Chassis Intrusion connector(s)

Accessories

• User's manual
• I/O Shield
• 2 x SATA 6Gb/s cable(s)

BIOS

• 64 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3

Manageability

• WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE

Support Disc

• Drivers
• ASUS Utilities
• ASUS Update
• Anti-virus software (OEM version)

Form Factor

• mATX Form Factor
• 9.2 inch x 7.6 inch ( 23.3 cm x 19.3 cm )

Note

• *PCB version and Specification are subject to change without notice for improvement, but there is no effect in MB.
