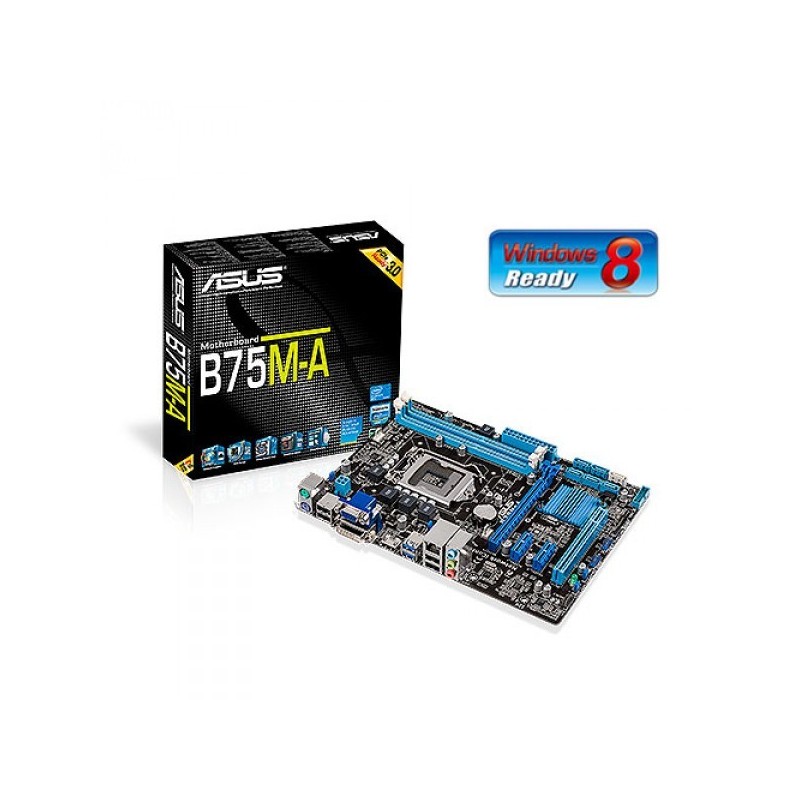

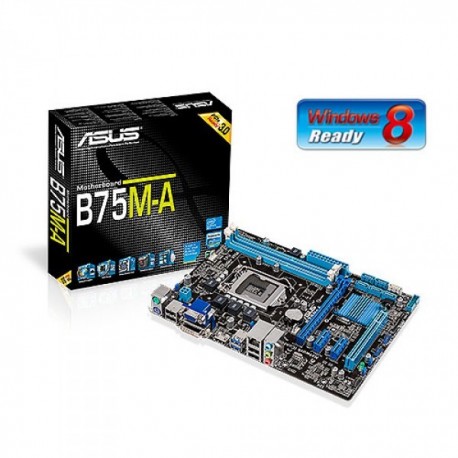

ASUS B75M-A (LGA1155, Intel B75, DDR3, SATA3, USB3)

Spesifikasi ASUS B75M-A (LGA1155, Intel B75, DDR3, SATA3, USB3)

CPU

• Intel® Socket 1155 for 3rd/2nd Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors

Chipset

• Intel® B75

Memory

• 2 x DIMM, Max. 16GB, DDR3 2200(O.C.)/2000(O.C.)/1800(O.C.)/1600/1333/1066 MHz Non-ECC, Un-buffered

Memory

• Dual Channel Memory Architecture

Graphic

• Integrated Graphics Processor
• Multi-VGA output support : HDMI/DVI-D/RGB ports
• Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz
• Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
• Supports RGB with max. resolution 2048 x 1536 @ 75 Hz
• Maximum shared memory of 1696 MB

Expansion Slots

• 1 x PCIe 3.0/2.0 x16
• 2 x PCIe 2.0 x1
• 1 x PCI

Storage

Intel® B75 chipset :

• 5 x SATA 3Gb/s port(s), black
• 1 x SATA 6Gb/s port(s), black

LAN

• Realtek® 8111F-VB-CG, 1 x Gigabit LAN Controller(s)

Audio

• Realtek® ALC887-VD 8-Channel High Definition Audio CODEC
• Supports : Jack-detection, Multi-streaming, Anti-pop Function

USB Ports

Intel® B75 chipset :

• 8 x USB 2.0 port(s) (4 at back panel, , 4 at mid-board)

Intel® B75 chipset :

• 4 x USB 3.0 port(s) (2 at back panel, , 2 at mid-board)

Special Features

ASUS EPU :

• EPU

ASUS Digital Power Design :

• ASUS DIGI+ VRM Utility

ASUS Exclusive Features :

• AI Suite II
• Ai Charger
• Anti-Surge
• ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
• Network iControl
• USB 3.0 Boost

ASUS Quiet Thermal Solution :

• ASUS Fan Xpert

ASUS EZ DIY :

• ASUS CrashFree BIOS 3
• ASUS EZ Flash 2
• ASUS MyLogo 2
• 100% All High-quality Conductive Polymer Capacitors

Back I/O Ports

• 1 x PS/2 keyboard (purple)
• 1 x PS/2 mouse (green)
• 1 x DVI-D
• 1 x D-Sub
• 1 x HDMI
• 1 x LAN (RJ45) port(s)
• 2 x USB 3.0
• 4 x USB 2.0
• 3 x Audio jack(s)

Internal I/O Ports

• 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 1 x SATA 6Gb/s connector(s)
• 5 x SATA 3Gb/s connector(s)
• 1 x CPU Fan connector(s)
• 1 x Chassis Fan connector(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 4-pin ATX 12V Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x Internal speaker connector(s)
• 1 x System panel(s)

Accessories

• User's manual
• I/O Shield
• 1 x SATA 3Gb/s cable(s)
• 1 x SATA 6Gb/s cable(s)

BIOS

• 128 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3

Manageability

• WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE

Support Disc

• Drivers
• ASUS Utilities
• ASUS Update
• Anti-virus software (OEM version)

Form Factor

• mATX Form Factor
• 9.6 inch x 7.0 inch ( 24.4 cm x 17.8 cm )
