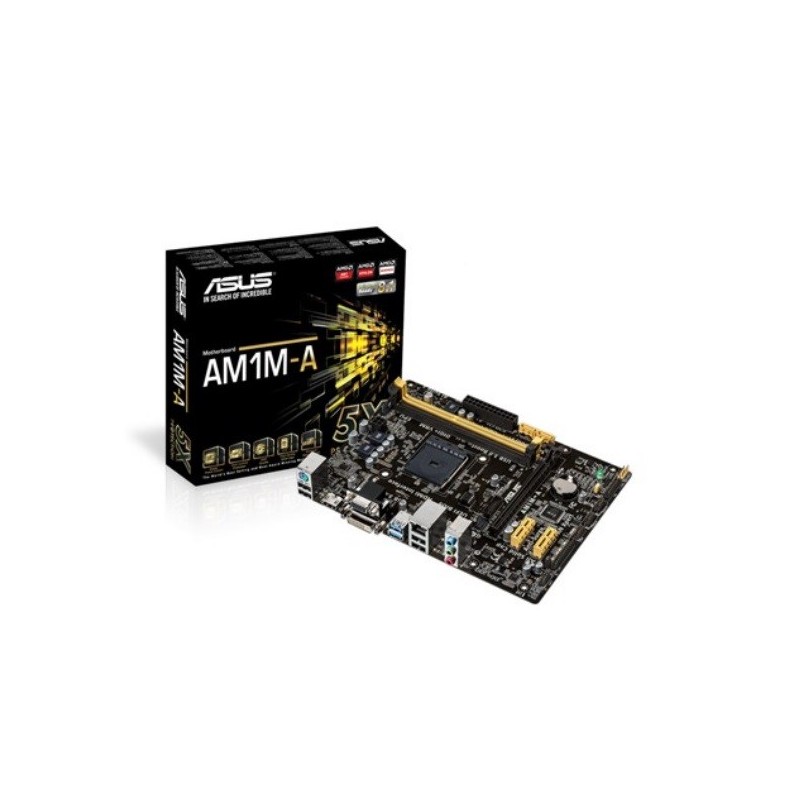

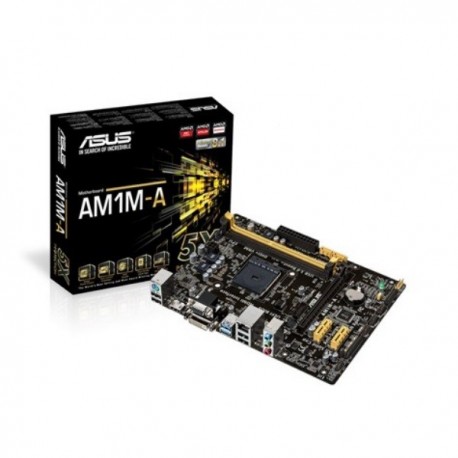

ASUS AM1M-A (AM1, AMD AM1, DDR3)

Spesifikasi ASUS AM1M-A (AM1, AMD AM1, DDR3)

CPU

• AMD Socket AM1 Athlon™/Sempron™ Processors Supports CPU up to 4 coresChipset
• Build in AMD Sempron & Athlon-Series APUs

Memory

• 2 x DIMM, Max. 32GB, DDR3 1600/1333 MHz Non-ECC, Un-buffered Memory
• Single Channel Memory Architecture
• Support AMD Memory Profile (AMP) memory

Graphic

• Integrated AMD Radeon™ R Series Graphics in the APU
• Multi-VGA output support : HDMI/DVI/RGB ports
• Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 1920 x 1080 @ 60 Hz*1
• Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
• Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
• Maximum shared memory of 2048 MB

Expansion Slots

• 1 x PCIe 2.0 x16 (x4 mode)
• 2 x PCIe 2.0 x1

Storage

AMD® Sempron & Athlon-Series APUs :

• 2 x SATA 6Gb/s port(s), yellow

LAN

• Realtek® 8111GR, 1 x Gigabit LAN Controller(s)

Audio

• Realtek® ALC887-VD 8-Channel High Definition Audio CODEC *2
• Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking

USB Ports

ASMedia® ASM1042 controller :

• 2 x USB 3.0/2.0 port(s) (2 at back panel, blue)

AMD® Sempron & Athlon-Series APUs :

• 8 x USB 2.0/1.1 port(s) (4 at back panel, black, 4 at mid-board)

AMD® Sempron & Athlon-Series APUs :

• 2 x USB 3.0/2.0 port(s) (2 at mid-board)

Special Features

ASUS 5X Protection :

• ASUS DIGI+ VRM 1 + 1 Phase digital power design
• ASUS Enhanced DRAM Overcurrent Protection Short circuit damage prevention
• ASUS ESD Guards Enhanced ESD protection
• ASUS High-Quality 5K-Hour Solid Capacitors 2.5x long lifespan with excellent durability
• ASUS Stainless Steel Back I/O 3x more durable corrosion-resistant coating

ASUS EPU :

• EPU

ASUS Exclusive Features :

• AI Suite 3
• Ai Charger+
• Anti-Surge
• ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
• USB 3.0 Boost
• Disk Unlocker

ASUS Quiet Thermal Solution :

• ASUS Fan Xpert

ASUS EZ DIY :

• ASUS CrashFree BIOS 3
• ASUS EZ Flash 2
• ASUS MyLogo 2

ASUS Q-Design :

• ASUS Q-Slot

Operating System Support

• Windows® 8.1 , 32bit/64bit
• Windows® 8 , 32bit/64bit
• Windows® 7 , 32bit/64bit
• Windows® XP , 32bit

Back I/O Ports

• 1 x PS/2 keyboard/mouse combo port(s)
• 1 x DVI
• 1 x D-Sub
• 1 x HDMI
• 1 x LAN (RJ45) port(s)
• 2 x USB 3.0 (blue)
• 4 x USB 2.0
• 3 x Audio jack(s)

Internal I/O Ports

• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 1 x TPM header
• 1 x COM port(s) connector(s)
• 2 x SATA 6Gb/s connector(s)
• 1 x CPU Fan connector(s)
• 1 x Chassis Fan connector(s)
• 1 x S/PDIF out header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 4-pin ATX 12V Power connector(s)
• 1 x parallel port connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x Internal speaker connector(s)
• 1 x System panel(s)

Accessories

• User's manual
• I/O Shield
• 2 x SATA 6Gb/s cable(s)

BIOS

• 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information

Support Disc

• Drivers
• ASUS utilities
• ASUS Update
• Anti-virus software (OEM version)

Form Factor

• mATX Form Factor
• 8.9 inch x 6.7 inch ( 22.6 cm x 17 cm )
