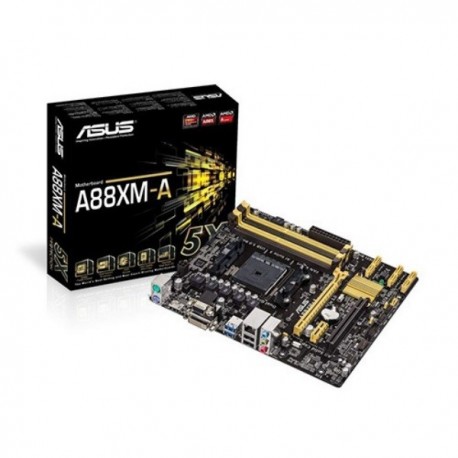

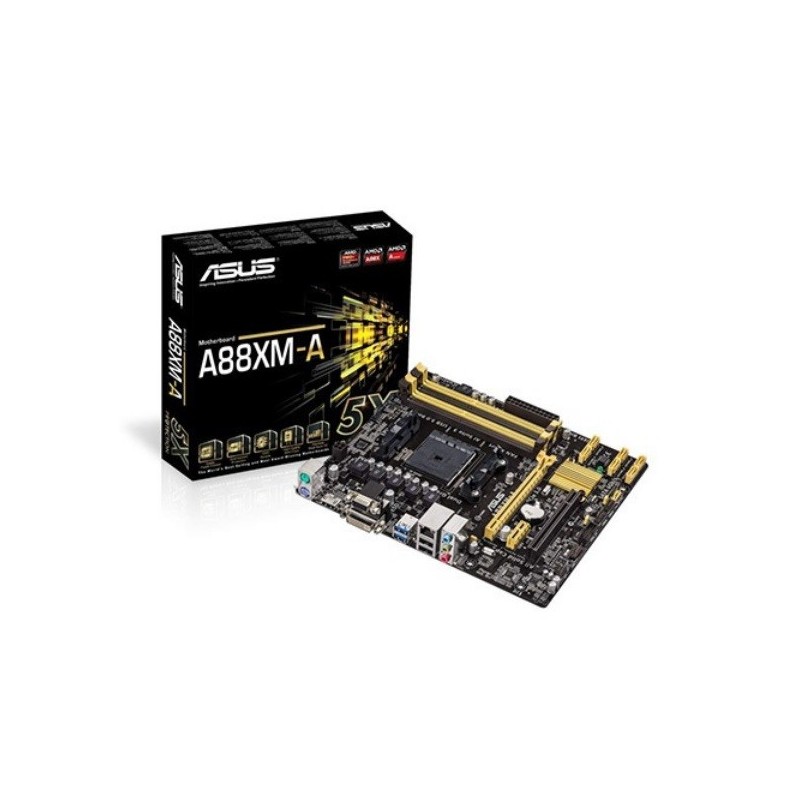

ASUS A88XM-A (FM2+, A58, DDR3)

Spesifikasi ASUS A88XM-A (FM2+, A58, DDR3)

CPU

• AMD Socket FM2+ Athlon™/ASeries Processors
• Supports CPU up to 4 cores
• Supports AMD® Turbo Core 3.0 Technology

Chipset

• AMD A88X (Bolton D4)

Memory

• 4 x DIMM, Max. 64GB, DDR3 2400(O.C.)/2133/1866/1600/1333 MHz Non-ECC, Un-buffered Memory
• Dual Channel Memory Architecture
• Support AMD Memory Profile (AMP) memory

Graphic

• Integrated AMD Radeon™ R/HD8000/HD7000 Series Graphics in the A-Series  APU
• Multi-VGA output support : HDMI/DVI/RGB ports
• Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 1920 x 1200 @ 60 Hz*1
• Supports DVI with max. resolution 2560 x 1600 @ 60 Hz
• Supports RGB with max. resolution 1920 x 1600 @ 60 Hz
• Maximum shared memory of 2048 MB
• AMD® Dual Graphics technology support *2

Expansion Slots

• 1 x PCIe 3.0/2.0 x16 *3
• 1 x PCIe 2.0 x1
• 1 x PCI

Storage

• AMD A88X FCH(Bolton D4) chipset :
• 6 x SATA 6Gb/s port(s), yellow
• Support Raid 0, 1, 5, 10, JBOD

LAN

• Realtek® 8111G, 1 x Gigabit LAN Controller(s)

Audio

• Realtek® ALC887-VD 8-Channel High Definition Audio CODEC *4
• Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking

USB Ports

AMD A88X FCH(Bolton D4) chipset :

• 4 x USB 3.0/2.0 port(s) (2 at back panel, blue, 2 at mid-board)

AMD A88X FCH(Bolton D4) chipset :

• 6 x USB 2.0/1.1 port(s) (2 at back panel, black, 4 at mid-board)

Special Features

ASUS 5X Protection :

• ASUS DIGI+ VRM 3 + 2 Phase digital power design
• ASUS Enhanced DRAM Overcurrent Protection Short circuit damage prevention
• ASUS ESD Guards Enhanced ESD protection
• ASUS High-Quality 5K-Hour Solid Capacitors 2.5x long lifespan with excellent durability
• ASUS Stainless Steel Back I/O 3x more durable corrosion-resistant coating

ASUS EPU :

• EPU

ASUS Exclusive Features :

• AI Suite 3
• Ai Charger
• Anti-Surge
• ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
• Network iControl
• USB 3.0 Boost
• Disk Unlocker

ASUS Quiet Thermal Solution :

• Stylish Fanless Design Heat-sink solution
• ASUS Fan Xpert

ASUS EZ DIY :

• ASUS CrashFree BIOS 3
• ASUS EZ Flash 2
• ASUS MyLogo 2

ASUS Q-Design :

• ASUS Q-Slot

Operating System Support

• Windows® 8.1 , 32bit/64bit
• Windows® 8 , 32bit/64bit
• Windows® 7 , 32bit/64bit
• Windows® XP , 32bit

Back I/O Ports

• 1 x PS/2 keyboard (purple)
• 1 x PS/2 mouse (green)
• 1 x DVI
• 1 x D-Sub
• 1 x HDMI
• 1 x LAN (RJ45) port(s)
• 2 x USB 3.0 (blue)
• 2 x USB 2.0
• 3 x Audio jack(s)

Internal I/O Ports

• 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 1 x COM port(s) connector(s)
• 6 x SATA 6Gb/s connector(s)
• 1 x CPU Fan connector(s)
• 1 x Chassis Fan connector(s)
• 1 x S/PDIF out header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 4-pin ATX 12V Power connector(s)
• 1 x Internal speaker connector(s)
• 1 x System panel(s)

Accessories

• User's manual
• I/O Shield
• 2 x SATA 6Gb/s cable(s)

BIOS

• 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.6, ACPI 4.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information

Support Disc

• Drivers
• ASUS utilities
• ASUS Update
• Anti-virus software (OEM version)

Form Factor

• mATX Form Factor
• 9.3 inch x 8.2 inch ( 23.6 cm x 20.8 cm )
