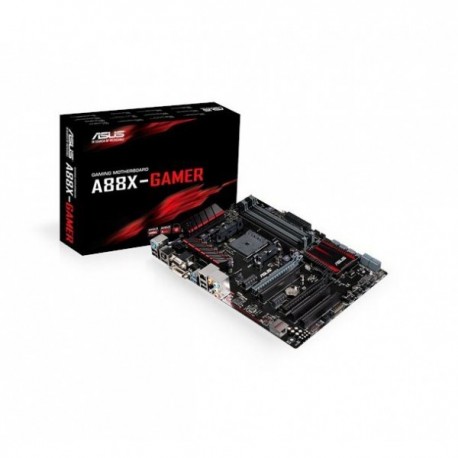

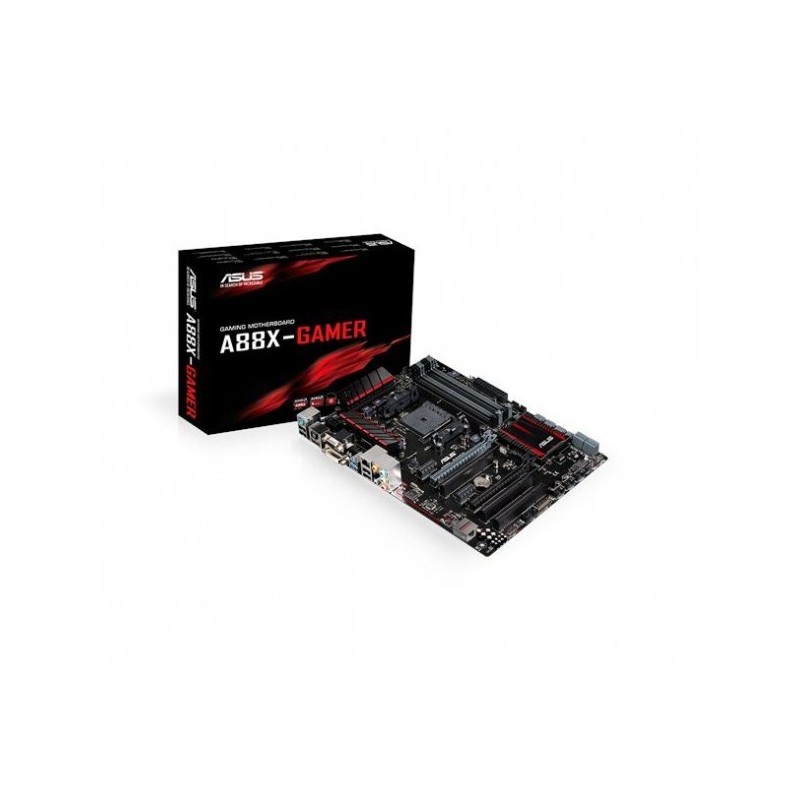

ASUS A88X-GAMER (FM2+, A58, DDR3)

Spesifikasi ASUS A88X-GAMER (FM2+, A58, DDR3)

CPU

• AMD Socket FM2+ Athlon™/ASeries Processors
• Supports CPU up to 4 cores
• Supports AMD® Turbo Core 3.0 Technology

Chipset

• AMD A88X (Bolton D4)

Memory

• 4 x DIMM, Max. 64GB, DDR3 2400(O.C.)/2250(O.C.)/2200(O.C.)/2133/1866/1600/1333 MHz Non-ECC, Un-buffered Memory
• Dual Channel Memory Architecture
• Support AMD Memory Profile (AMP) memory

Graphic

• Integrated AMD Radeon™ R/HD8000/HD7000 Series Graphics in the A-Series  APU
• Multi-VGA output support : HDMI/DVI/RGB ports
• Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 1920 x 1200 @ 60 Hz*1
• Supports DVI with max. resolution 2560 x 1600 @ 60 Hz
• Supports RGB with max. resolution 1920 x 1600 @ 60 Hz
• Maximum shared memory of 2048 MB
• AMD® Dual Graphics technology support *2

Multi-GPU Support

• Supports AMD Quad-GPU CrossFireX™ Technology

Expansion Slots

• 1 x PCIe 3.0/2.0 x16 (x16 mode) *3
• 1 x PCIe 2.0 x16 (max at x4 mode, black)
• 2 x PCIe 2.0 x1
• 3 x PCI

Storage
AMD A88X FCH(Bolton D4) chipset :

• 8 x SATA 6Gb/s port(s), gray
• Support Raid 0, 1, 5, 10, JBOD

LAN

• Intel® I211-AT, 1 x Gigabit LAN Controller(s)

Audio

• SupremeFX 8-Channel High Definition Audio CODEC
• Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
• High quality 115 dB SNR stereo playback output

Audio Feature :

• SupremeFX Shielding™ Technology
• ELNA premium audio capacitors
• Optical S/PDIF out port(s) at back panel
• Audio amplifier: Provides the highest-quality sound for headphone and speakers
• EMI protection cover to prevent electrical noise to affect the amplifier quality

USB Ports

AMD A88X FCH(Bolton D4) chipset :

• 4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)

AMD A88X FCH(Bolton D4) chipset :

• 10 x USB 2.0 port(s) (4 at back panel, black, 6 at mid-board)

Special Features

Gamer's Guardian:

• ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
• DRAM Overcurrent Protection
• 10K Black Metallic Capacitors
• Stainless Steel Back I/O
• DIGI+ VRM

ASUS EPU :

• EPU

ASUS Exclusive Features :

• TurboV EVO
• GPU Boost
• AI Suite 3
• Ai Charger
• USB 3.0 Boost
• Disk Unlocker

Interactive HomeCloud

• Media Streamer

ASUS Quiet Thermal Solution :

• Stylish Fanless Design Heat-sink solution & MOS Heatsink
• ASUS Fan Xpert 2

ASUS EZ DIY :

• ASUS CrashFree BIOS 3
• ASUS EZ Flash 2
• ASUS MyLogo 2
• ASUS UEFI BIOS EZ Mode
• Multi-language BIOS

ASUS Q-Design :

• ASUS Q-Shield
• ASUS Q-Slot
• ASUS Q-DIMM

Operating System Support

• Windows® 8.1 , 32bit/64bit
• Windows® 8 , 32bit/64bit
• Windows® 7 , 32bit/64bit

Back I/O Ports

• 1 x PS/2 keyboard/mouse combo port(s)
• 1 x DVI
• 1 x D-Sub
• 1 x HDMI
• 1 x LAN (RJ45) port(s)
• 2 x USB 3.0 (blue)
• 4 x USB 2.0
• 1 x Optical S/PDIF out
• 6 x Audio jack(s)

Internal I/O Ports

• 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
• 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
• 1 x TPM header
• 1 x COM port(s) connector(s)
• 8 x SATA 6Gb/s connector(s)
• 1 x CPU Fan connector(s) (1 x 4 -pin)
• 2 x Chassis Fan connector(s) (2 x 4 -pin)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin ATX 12V Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x System panel(s)
• 1 x Clear CMOS jumper(s)

Accessories

• User's manual
• ASUS Q-Shield
• 2 x SATA 6Gb/s cable(s)

BIOS

• 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, F12 PrintScreen Function, F3 My Favorites and ASUS DRAM SPD (Serial Presence Detect) memory information

Support Disc

• Drivers, ASUS utilities, EZ Update, Anti-virus software (OEM version)

Form Factor

• ATX Form Factor
• 12 inch x 9.0 inch ( 30.5 cm x 22.9 cm )
