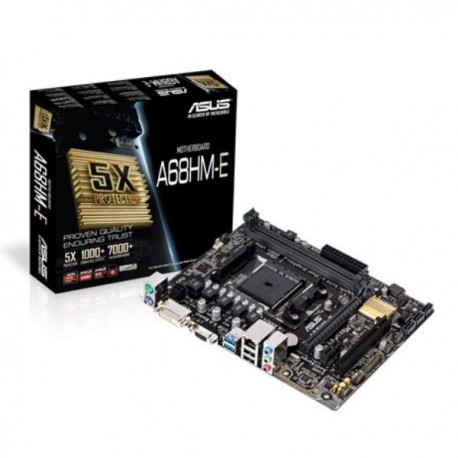

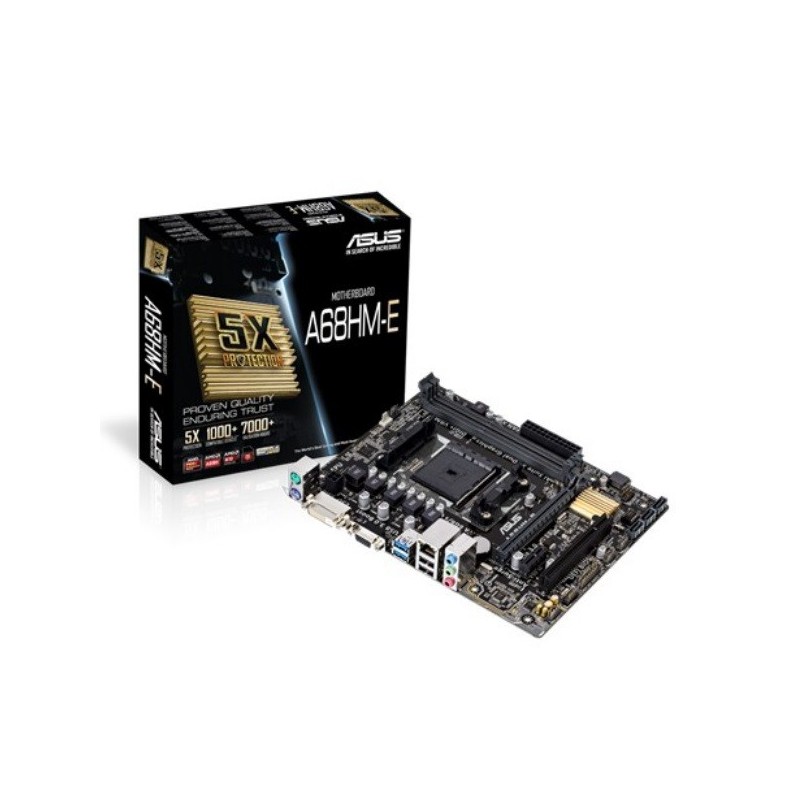

ASUS A68HM-E (FM2, A68, DDR3)

Spesifikasi ASUS A68HM-E (FM2, A68, DDR3)

Model
Brand

• ASUS

Model

• A68HM-E

Supported CPU
CPU Socket Type

• FM2+

CPU Type

• Athlon/ASeries (FM2+)

Chipsets
Chipset

• AMD A68H FCH (Bolton D2H)

Memory
Number of Memory Slots

• 2×240pin

Memory Standard

• DDR3 2400(O.C.)/2133/1866/1600/1333

Maximum Memory Supported

• 32GB

Channel Supported

• Dual Channel

Expansion Slots
PCI Express 3.0 x16

• 1 x PCIe 3.0/2.0 x16 *2
• *2: Only FM2+ Processors can support PCIe3.0.

PCI Express x1

• 1 x PCIe 2.0 x1

PCI Slots

• 1

Storage Devices
SATA 6Gb/s

• 4 x SATA 6Gb/s port(s), gray

SATA RAID

• 0/1/10/JBOD

Onboard Video
Onboard Video Chipset

• Integrated AMD Radeon R/HD8000/HD7000 Series Graphics in the A-Series APU

Onboard Audio
Audio Chipset

• Realtek ALC887-VD

Audio Channels

• 8 Channels

Onboard LAN
LAN Chipset

• Realtek 8111GR

Max LAN Speed

• 10/100/1000Mbps

Rear Panel Ports
PS/2

• 1 x PS/2 keyboard (purple)
• 1 x PS/2 mouse (green)

Video Ports

• 1 x DVI
• 1 x D-Sub

RJ45

• 1 x RJ45

USB 3.0

• 2 x USB 3.0

USB 1.1/2.0

• 2 x USB 2.0

Audio Ports

• 3 Ports

Internal I/O Connectors
Onboard USB

• 2 x USB 3.0 + 4 x USB 2.0

Other Connectors

• 1 x TPM connector(s)
• 1 x COM port(s) connector(s)
• 1 x CPU Fan connector(s)
• 1 x Chassis Fan connector(s)
• 1 x S/PDIF out header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 4-pin ATX 12V Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x Internal speaker connector(s)
• 1 x System panel(s)

Physical Spec
Form Factor

• Micro ATX

Dimensions (W x L)

• 8.9" x 7.2"

Power Pin

• 24 Pin

Features
Features

• FM2+ socketed motherboard features enduring 5X Protection, high-clarity audio and the new UEFI BIOS on the A68H chipset
• Proven quality 5X Protection. 1000+ compatible devices. 7000+ validation hours
• Audio Features Audio that roars on the battlefield
• New UEFI BIOS The Smoothest and Slickest Mouse-controlled Graphical BIOS
• USB 3.0 Boost (UASP Support) 170% faster transfer speeds than traditional USB 3.0

Special Features

ASUS 5X Protection:

• ASUS DIGI+ VRM 3 + 2 Phase digital power design
• ASUS Enhanced DRAM Overcurrent Protection Short circuit damage

prevention

• ASUS ESD Guards Enhanced ESD protection
• ASUS High-Quality 5K-Hour Solid Capacitors 2.5x long lifespan with

excellent durability

• ASUS Stainless Steel Back I/O 3x more durable corrosion-resistant coating

ASUS EPU:

• EPU

ASUS Exclusive Features:

• AI Suite 3
• Ai Charger
• Anti-Surge
• ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
• USB 3.0 Boost
• Disk Unlocker

ASUS Quiet Thermal Solution:

• Stylish Fanless Design Heat-sink solution
• ASUS Fan Xpert

ASUS EZ DIY:

• ASUS CrashFree BIOS 3
• ASUS EZ Flash 2
• ASUS MyLogo 2
• Push Notice

ASUS Q-Design:

• ASUS Q-Slot

Packaging

Package Contents

Accessories

• User's manual
• I/O Shield
• 2 x SATA 6Gb/s cable(s)
• 1 x Supporting DVD
