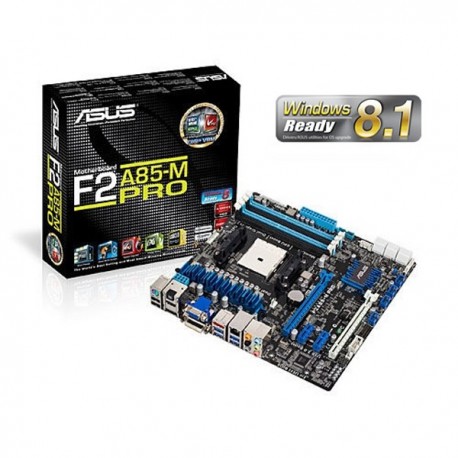

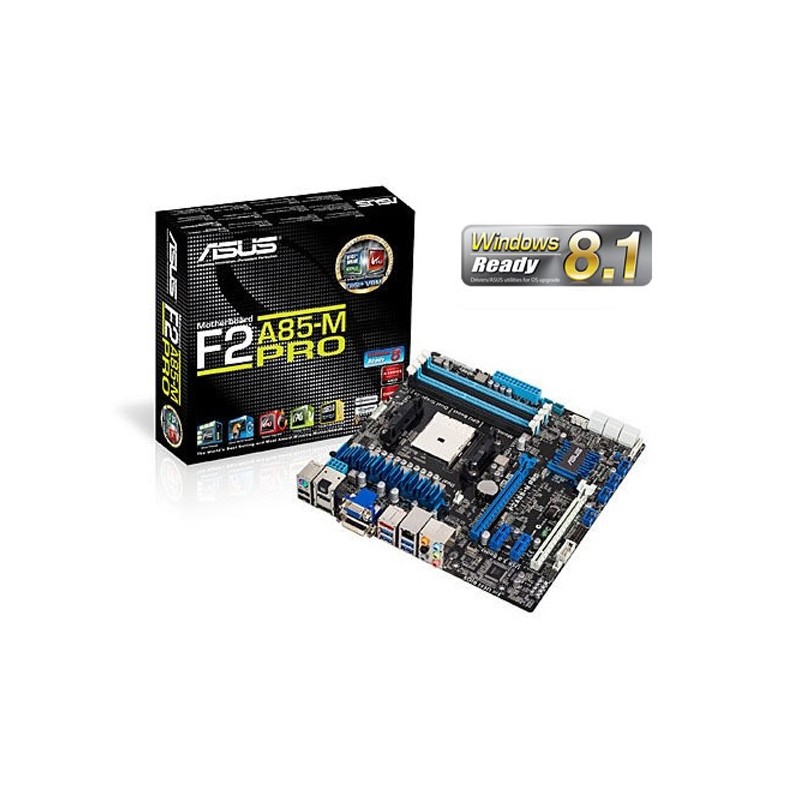

ASUS F2A85-M Pro (FM2, A85, DDR3)

Spesifikasi ASUS F2A85-M Pro (FM2, A85, DDR3)

CPU

• AMD Socket FM2 Athlon™/ASeries Processors
• Supports CPU up to 4 cores
• Supports AMD® Turbo Core 3.0 Technology

Chipset

• AMD A85X FCH(Hudson D4)

Memory

• 4 x DIMM, Max. 64GB, DDR3 2400(O.C.)/2250(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866/1600/1333/1066 MHz Non-ECC, Un-buffered Memory
• Dual Channel Memory Architecture
• Support AMD Memory Profile (AMP) memory
• Graphic
• Integrated AMD Radeon™ HD 7000/8000 Series Graphics in A-series APU
• Multi-VGA output support : HDMI/DVI/RGB/DisplayPort ports *
• Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz
• Supports DVI with max. resolution 2560 x 1600 @ Hz
• Supports RGB with max. resolution 1920 x 1600 @ 60 Hz
• Supports DisplayPort with max. resolution 4096 x 2160 @ 60 Hz
• Maximum shared memory of 2048 MB
• AMD® Dual Graphics technology support
• Supports DirectX 11

Multi-GPU Support

• Supports AMD Quad-GPU CrossFireX™ Technology
• Supports LucidLogix® Virtu™ MVP Technology *1

Expansion Slots

• 2 x PCIe 2.0 x16 (x16 or dual x8)
• 2 x PCIe 2.0 x1

Storage

AMD A85X FCH(Hudson D4) chipset :

• 7 x SATA 6Gb/s port(s), gray
• 1 x eSATA 6Gb/s port(s), red
• Support Raid 0, 1, 5, 10, JBOD

LAN

• Realtek® 8111F, 1 x Gigabit LAN Controller(s)

Audio

• Realtek® ALC892 8-Channel High Definition Audio CODEC
• Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking

Audio Feature :

• Optical S/PDIF out port(s) at back panel

USB Ports

ASMedia® USB 3.0 controller : *2

• 2 x USB 3.0 port(s) (2 at back panel, blue)

AMD A85X FCH(Hudson D4) chipset :

• 4 x USB 3.0 port(s) (2 at back panel, , 2 at mid-board)

AMD A85X FCH(Hudson D4) chipset :

• 10 x USB 2.0 port(s) (2 at back panel, , 8 at mid-board)

ROG Exclusive Features

Overclocking Protection :

• ASUS C.P.R.(CPU Parameter Recall)

Special Features
ASUS Dual Intelligent Processors TPU & EPU :
ASUS TPU :

• Auto Tuning
• TurboV
• GPU Boost
• TPU switch

ASUS EPU :

• EPU
• EPU switch

ASUS Digital Power Design :

• Industry leading Digital 4 +2 Phase Power Design

ASUS Exclusive Features :

• Remote GO!
• USB BIOS Flashback
• MemOK!
• AI Suite II
• Ai Charger+
• USB Charger+
• Anti-Surge
• Low EMI Solution
• ESD Guards
• ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
• Network iControl
• USB 3.0 Boost
• Disk Unlocker

ASUS Quiet Thermal Solution :

• Stylish Fanless Design Heat-sink solution
• ASUS Fan Xpert 2

ASUS EZ DIY :

• ASUS CrashFree BIOS 3
• ASUS EZ Flash 2
• ASUS MyLogo 2

ASUS Q-Design :

• ASUS Q-Shield
• ASUS Q-Slot
• 100% All High-quality Conductive Polymer Capacitors

Back I/O Ports

• 1 x PS/2 keyboard/mouse combo port(s)
• 1 x DVI
• 1 x D-Sub
• 1 x DisplayPort
• 1 x HDMI
• 1 x eSATA
• 1 x LAN (RJ45) port(s)
• 4 x USB 3.0
• 2 x USB 2.0
• 1 x Optical S/PDIF out
• 6 x Audio jack(s)

Internal I/O Ports

• 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
• 4 x USB 2.0 connector(s) support(s) additional 8 USB 2.0 port(s)
• 1 x TPM connector(s)
• 1 x COM port(s) connector(s)
• 7 x SATA 6Gb/s connector(s)
• 1 x CPU Fan connector(s) (4 x -pin)
• 3 x Chassis Fan connector(s) (4 x -pin)
• 1 x S/PDIF out header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin ATX 12V Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x System panel(s)
• 1 x DirectKey Button(s)
• 1 x DRCT header(s)
• 1 x MemOK! button(s)
• 1 x TPU switch(es)
• 1 x EPU switch(es)
• 1 x USB BIOS Flashback button(s)

Accessories

• User's manual
• ASUS Q-Shield
• 2 x SATA 6Gb/s cable(s)

BIOS

• 64 Mb Flash ROM, UEFI BIOS, PnP, DMI v2.0, WfM2.0, SM BIOS V2.7, ACPI V2.0a

Support Disc

• Drivers, ASUS utilities, ASUS Update, Anti-virus software (OEM version)

Form Factor

• uATX Form Factor
• 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
